4-S5
MX5100, WSM
REAR AXLE

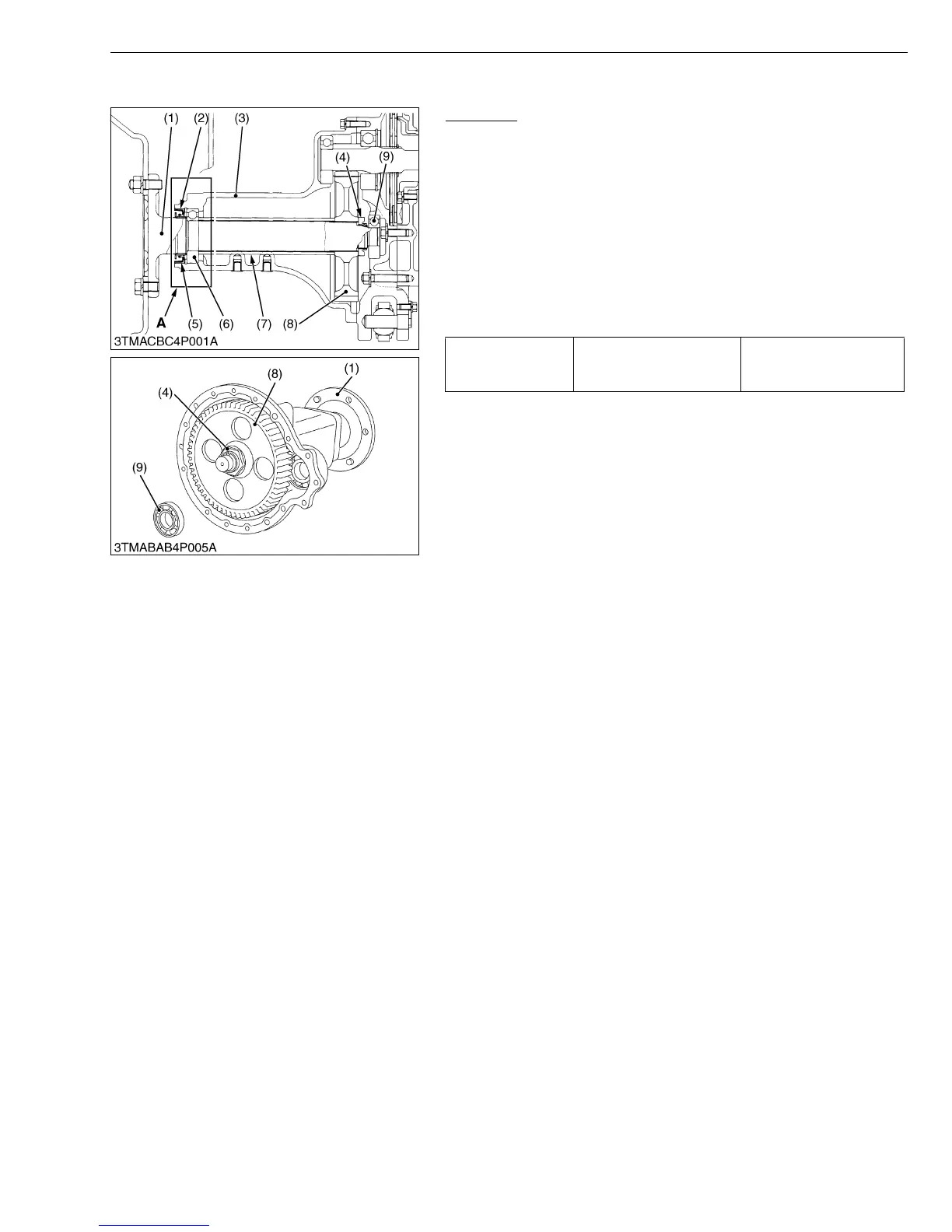

(2) Disassembling Rear Axle
Rear Axle
1. Remove the ball bearing (9) with a puller.
2. Remove the stake of lock nut (4).
3. Secure the rear axle (1) in a vise and remove the lock nut.
4. Take out the gear (8) and spacer (7).
5. Tap out the rear axle (1).
(When reassembling)
• Apply grease to the oil seal (2) and install it.
• Replace the lock nut with new one, and after tightening it to
specified torque, stake it firmly.
• Assemble the oil seal (2) with correct direction. (See figure
above (A) portion.)
W10116810
Tightening torque Lock nut
196 to 245 N·m
20 to 25 kgf·m
145 to 181 lbf·ft
(1) Rear Axle
(2) Oil Seal
(3) Rear Axle Case
(4) Lock Nut
(5) Internal Snap Ring
(6) Ball Bearing
(7) Spacer
(8) Gear (67T)
(9) Ball Bearing
A : Rear Axle Case Oil Seal and Ball
Bearing Portion
