TRANSMISSION
(3) Operation

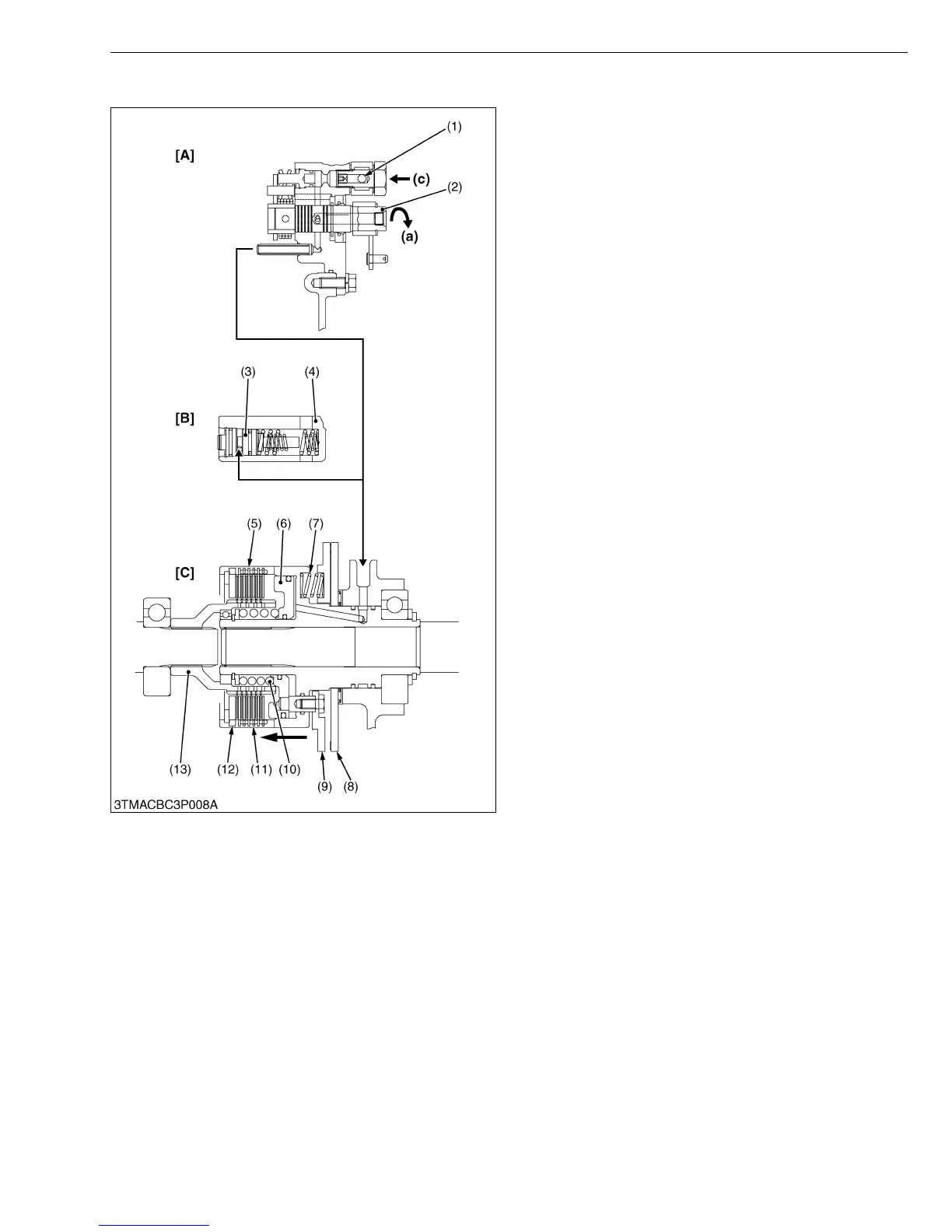

■ When PTO Shift Lever is Set at the “ENGAGED”
Position
The oil from the regulator valve flows into the clutch
valve and opens the check valve (1). When the shift
lever is set at the “ENGAGED” position, the spool (2) is
turned to (a) position, then the oil flows through the spool
(2) into the accumulator and the PTO clutch pack. Oil
entering the clutch pack pushes the piston (6) to engage
the PTO clutch pack. The accumulator absorbs the
engaging shock of the PTO clutch pack.
W1013678
(1) Check Valve
(2) Spool
(3) Accumulator Piston
(4) Mid Case Bearing Case
(5) Plate
(6) Piston
(7) Brake Spring
(8) Brake Disc
(9) Brake Plate
(10) Return Spring
(11) Clutch Disc
(12) Back Plate
(13) Clutch Hub
(a) PTO Shift Lever is Set at
ENGAGED Position
(c) Oil Flows from Regulator
Valve
[A] PTO Clutch Valve
[B] Accumulator
[C] PTO Clutch Pack
