3-S30
MX5100, WSM
TRANSMISSION

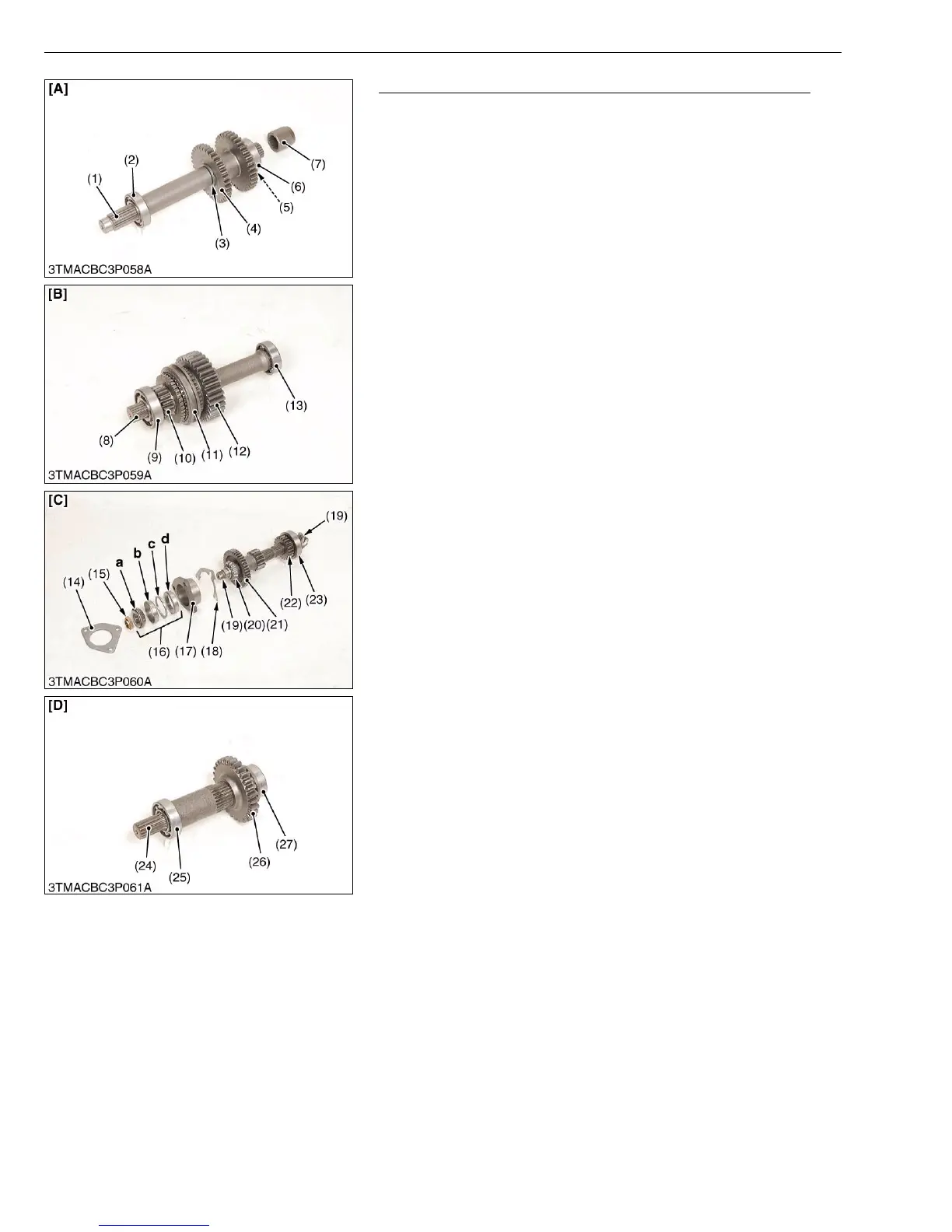

Disassembling Shafts in Transmission Case Front Section
1. Disassembling the shafts assemblies in the transmission case
front section.
(When reassembling)
• If the shaft component part is broken or damaged, replace it.
W10278200
(1) PTO Drive Shaft
(2) Ball Bearing
(3) Thrust Bearing
(4) 34T-35T Gear (Front Wheel Drive
Gear)
(5) Cir-clip and Thrust Collar
(6) Ball Bearing
(7) PTO Coupling
(8) Hi-Lo Gear Shaft
(9) Ball Bearing
(10) 18T Gear
(11) Shifter
(12) 33T Gear
(13) Ball Bearing
(14) Bearing Cover
(15) 22 Nut
(16) Taper Roller Bearing Assembly
(17) Bearing Case
(18) Shim
(19) 6T Spiral Bevel Pinion Shaft
(20) Taper Roller Bearing
(21) 42T-16T Sub Gear
(22) 21T DT Gear (4WD Model only)
(23) Roller Bearing
(24) Front Wheel Drive Shaft
(25) Ball Bearing
(26) 28T Shifter Gear (4WD Model only)
(27) Bearing Case
[A] PTO Drive Shaft
[B] Hi-Lo Gear Shaft
[C] 6T SBP Shaft
[D] DT Gear Shaft
a-d :Included in taper roller bearing
assembly
