TRANSMISSION
Disconnecting Linkage
1. Remove the bolt (1) and the snap pin (2).
2. Slide the Hi-Lo shift lever (3) to the outside.
3. Disconnect the linkage between the Hi-Lo shift lever (3) and the
Hi-Lo shift folk in the transmission case.
4. Remove the bolt (4). Slide the front wheel drive shift lever (5) to
the outside.
5. Disconnect the linkage between the front wheel drive shift lever
(5) and the front wheel drive shift folk in the transmission.
6. After disconnecting the linkage, remove the transmission bearing
holder.

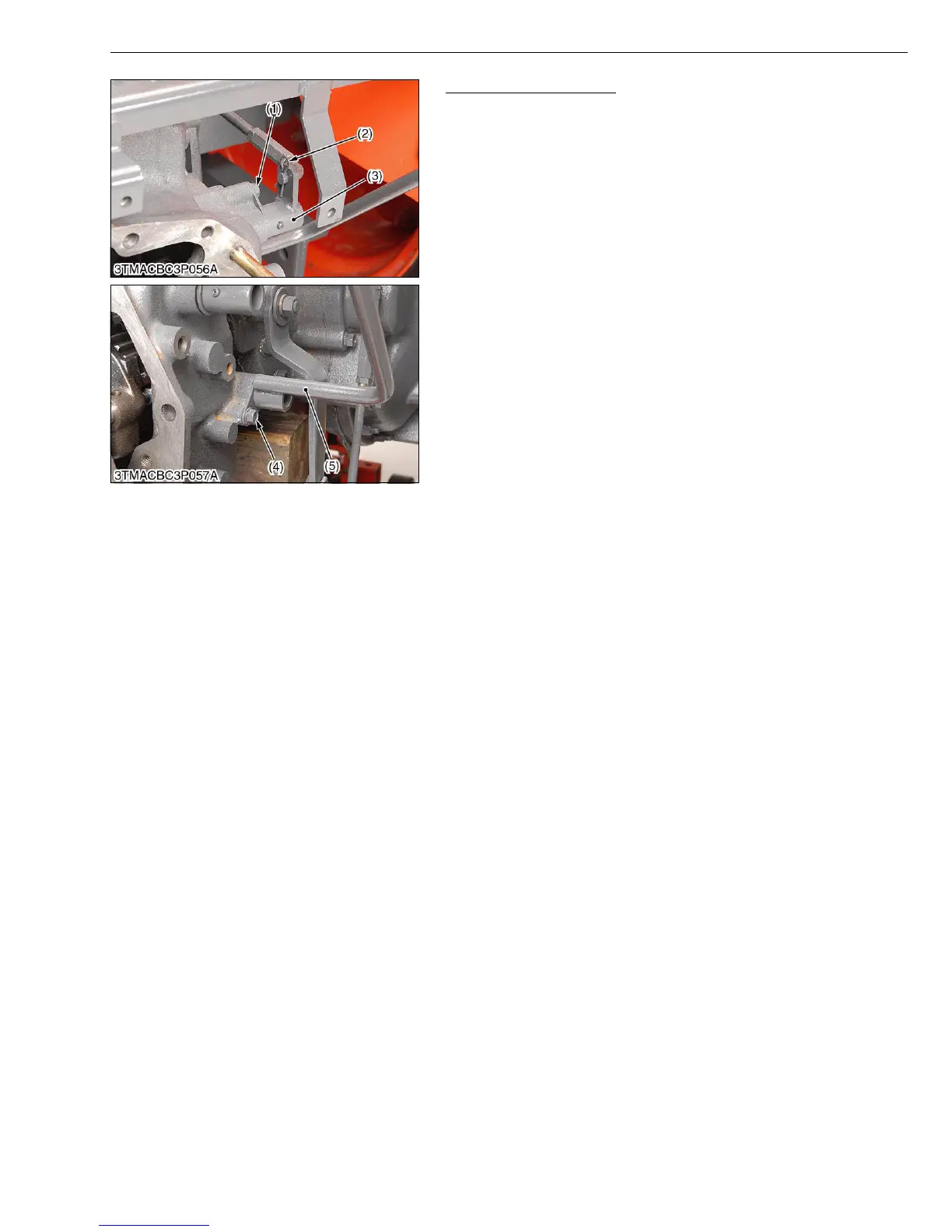

W10272760
(1) Bolt (M8)
(2) Snap Pin
(3) Hi-Lo Shift Lever
(4) Bolt (M8)
(5) Front Wheel Drive Shift Lever (4WD
Model only)
