3-S26
MX5100, WSM
TRANSMISSION

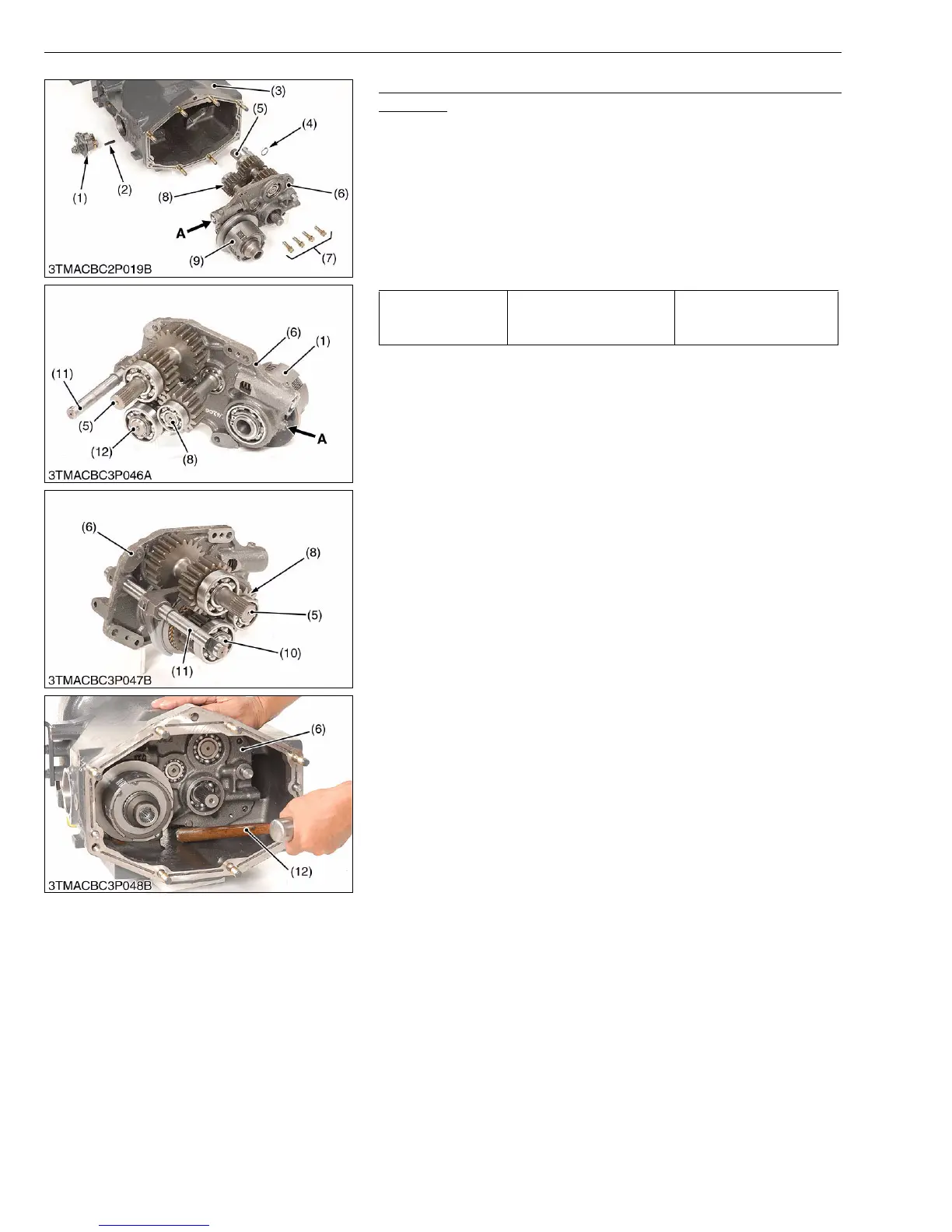

When Reassembling Shafts to PTO Clutch Bearing Holder and
Mid Case
1. Assemble the shuttle shift rod (11) to the shuttle shaft assembly
(10).
2. Assemble the shafts (5), (8), (10) to the PTO clutch bearing
holder (6).
3. Assemble the PTO clutch assemble (9) to the PTO clutch bearing
holder, referring to “2. CLUTCH” section.
4. Install the PTO clutch bearing holder (6) with the shafts (5), (8),
(10), using a hammer as shown in the picture.
(When reassembling)
W10251910
Tightening torque
PTO clutch bearing holder
mounting bolts (M10)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
(1) PTO Clutch Valve
(2) Hydraulic Pipe
(3) Mid Case
(4) External Cir-clip
(5) Shuttle Gear Shaft
(6) PTO Clutch Bearing Holder
(7) Bolts
(8) 17T Reverse Shaft
(9) PTO Clutch Assembly
(10) Shuttle Shaft
(11) Shuttle Shift Rod
(12) Hammer
A : Hole for PTO Clutch Valve
Hydraulic Pipe
