3-S27
MX5100, WSM
TRANSMISSION

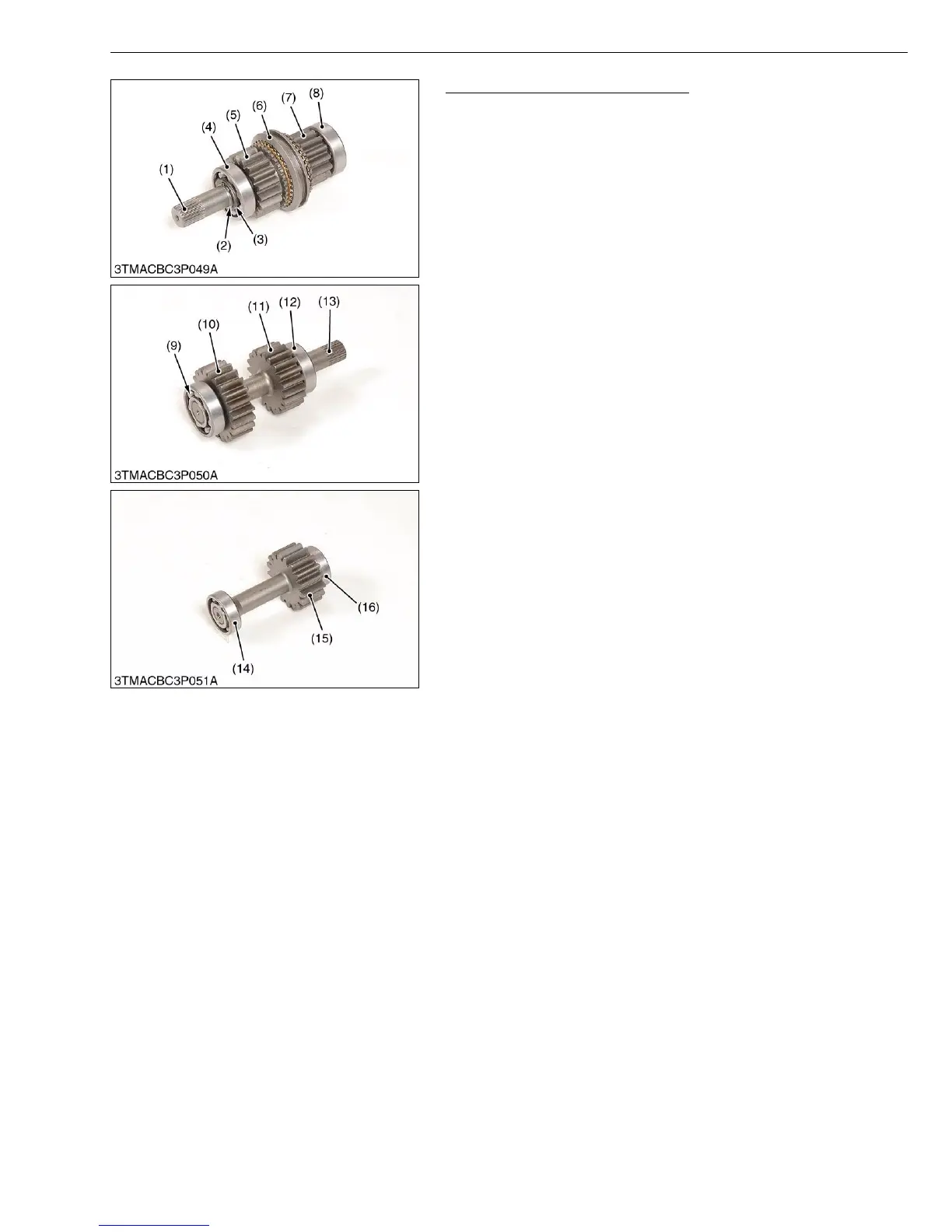

Disassembling Shaft in Mid Case
1. Disassemble the shuttle shaft assembly.
2. Disassemble the shuttle gear shaft assembly.
3. Disassemble the lever shaft assembly.
(When reassembling)
• If cir-clip or bearing is damaged, replace it.
W10259520
(1) Shuttle Shaft
(2) External Cir-clip
(3) Collar
(4) Ball Bearing
(5) 18T Gear
(6) Shifter
(7) 15T Gear
(8) Ball Bearing
(9) Ball Bearing
(10) 22T Gear
(11) 20T Gear
(12) Ball Bearing
(13) Shuttle Gear Shaft
(14) Ball Bearing
(15) 17T Reverse Shaft
(16) Ball Bearing
