1-S36
MX5100, WSM
ENGINE

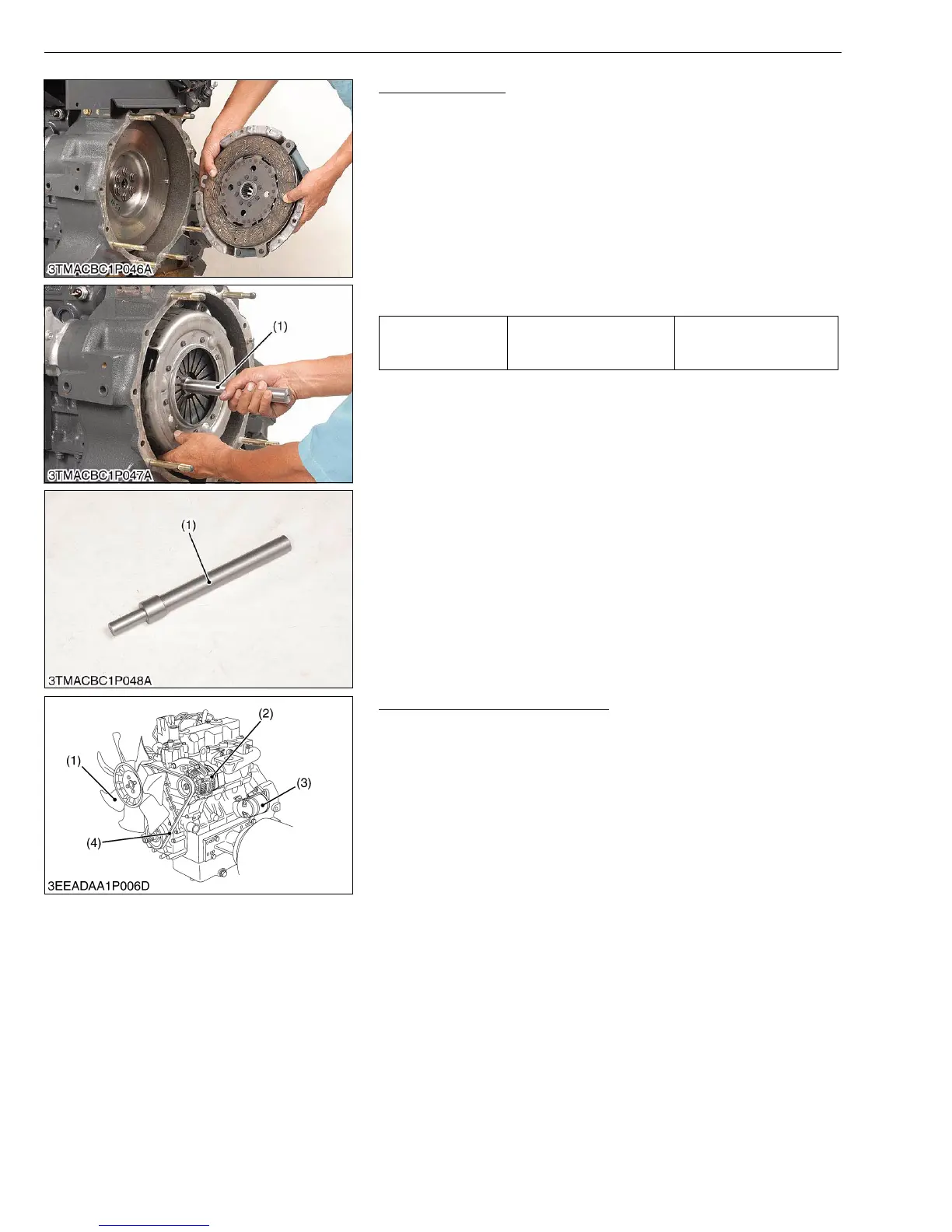

Clutch Assembly
1. Remove the clutch from the flywheel.
(When reassembling)
• Direct the shorter end of the clutch disc boss toward the flywheel.
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
the splines of clutch disc boss.
• Install the pressure plate, nothing the position of straight pins.
• Align the center of disc and flywheel by inserting the clutch
center tool. (Refer to G-56.)
• Do not allow grease and oil on the clutch disc facing.
W12067660
Air Cleaner, Muffler and Others
1. Remove the air cleaner and muffler.
2. Remove the fan (1), fan belt (4), alternator (2) and starter (3).
(When reassembling)
• Check to see that there are no cracks on the belt surface.
• After reassembling the fan belt, be sure to adjust the fan belt
tension.
• Do not confuse the direction of the fan.
W1060302
Tightening torque
Clutch pressure plate
mounting screws
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.5 to 20.3 lbf·ft
(1) Clutch Center Tool
(1) Fan
(2) Alternator
(3) Starter
(4) Fan Belt
