9-S21
MX5100, WSM
ELECTRICAL SYSTEM
Head LIght Switch Continuity when Setting Switch at OFF
Position
1. Disconnect the connector 8P from the combination switch.
2. Set the light switch to the OFF position.
3. Measure the resistance with an ohmmeter across the B1 terminal
to the T terminal, the B1 terminal to the 1 terminal and the B1
terminal to the 2 terminal.
4. If infinity is not indicated, renew the switch.
W1109195
Head LIght Switch Continuity when Setting Switch at ON1
Position
1. Measure the resistance with an ohmmeter across the B1 terminal
to the T terminal and the B1 terminal to the 1 terminal.
2. If 0 ohm is not indicated, renew the head light switch.
W1113563
Head LIght Switch Continuity when Setting Switch at ON2
Position
1. Measure the resistance with an ohmmeter across the B1 terminal
to the T terminal and the B1 terminal to the 2 terminal.
2. If 0 ohm is not indicated, renew the head light switch.
W1114916
Connector Voltage (Turn Signal Switch)
1. Disconnect the connector 8P from the combination switch.
2. Measure the voltage with a voltmeter across the connector B2
terminal and chassis when the main switch is ON position.
3. If the voltage differs from the battery voltage, check the wiring
harness
W1116305
Resistance (Switch at
OFF position)
B1 terminal -
T terminal
Infinity
B1 terminal -
1 terminal
B1 terminal -
2 terminal

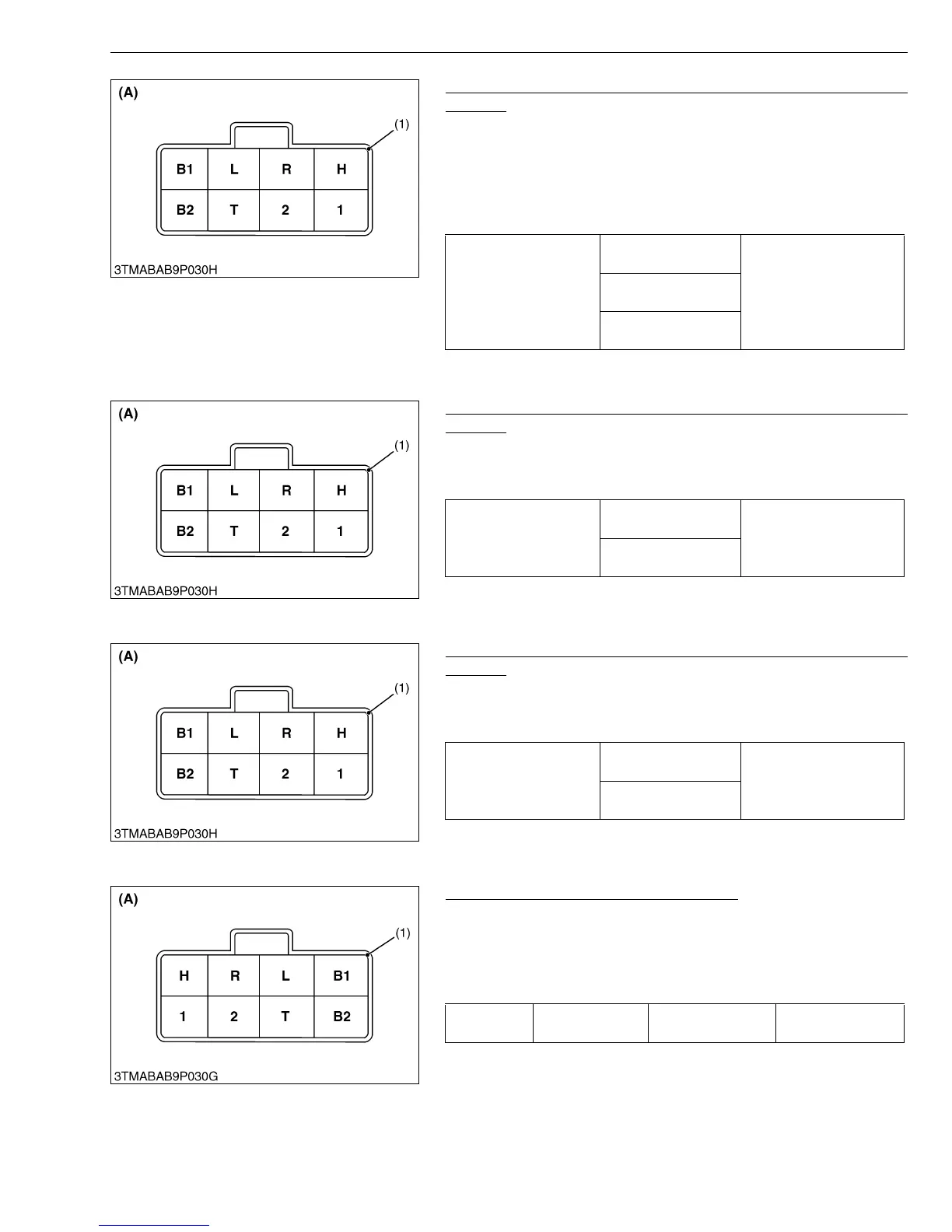

(1) Combination Switch 8P Connector (A) Combination Switch Side
Resistance (Switch at
HI-BEAM position)
B1 terminal -
T terminal
0 Ω
B1 terminal -
1 terminal
(1) 8P Connector (Combination Switch
Side)
(A) Combination Switch Side
Resistance (Switch at
LO-BEAM position)
B1 terminal -
T terminal
0 Ω
B1 terminal -
2 terminal
(1) 8P Connector (Combination Switch
Side)
(A) Combination Switch Side
Voltage
Main switch at
ON position
B2 Terminal -
Chassis
Battery voltage
(1) 8P Connector (Wire Harness Side) (A) Combination Switch Side
