2-S15
MX5100, WSM
CLUTCH

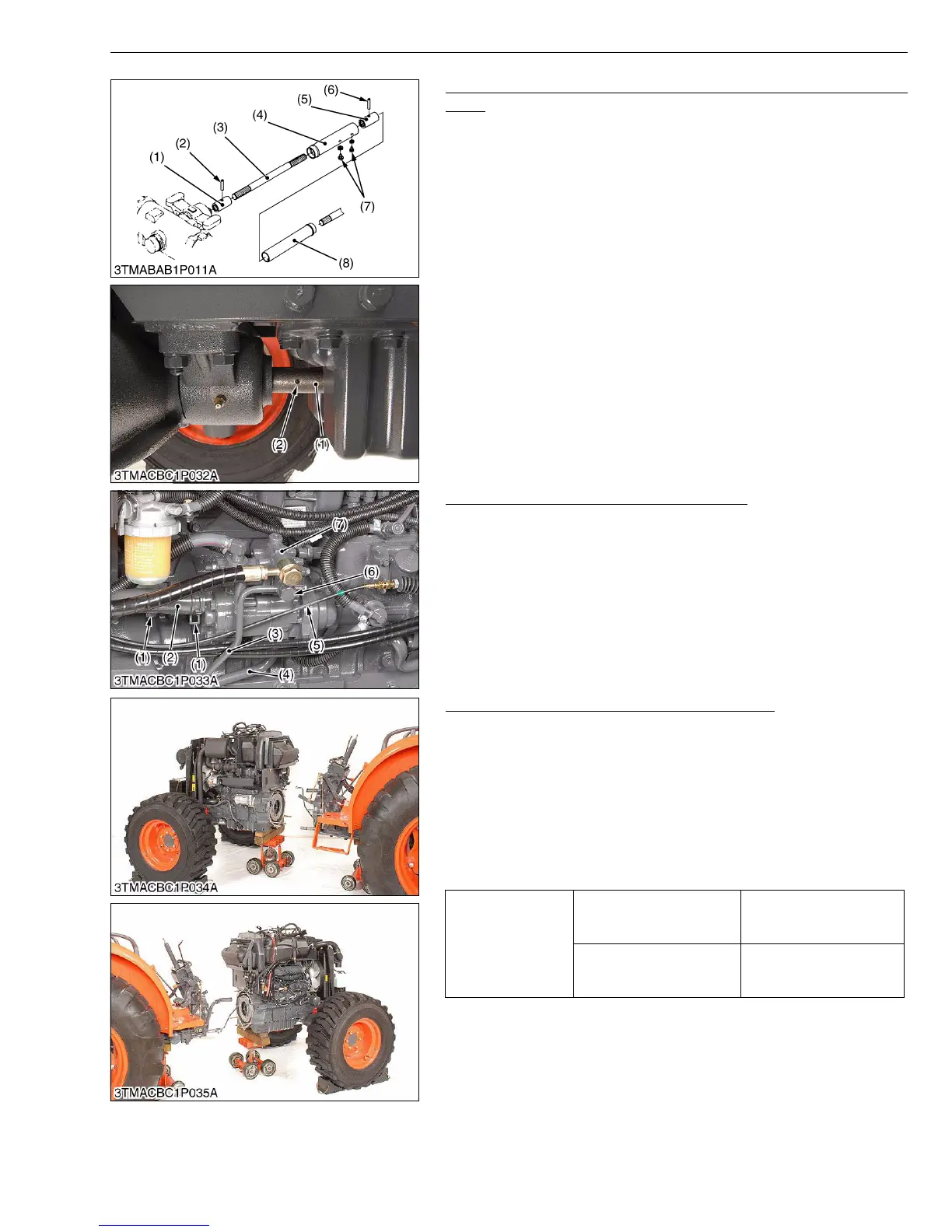

Disconnecting Front Wheel Drive Shaft Coupling (4WD Model
Only)
1. Remove the propeller shaft cover mounting bolts (M5) (7).
2. Slide the propeller shaft cover (4), (8).
3. Remove the spring pin (2).
4. Disconnect the coupling (1) from the front axle drive shaft.
(When reassembling)
• Apply grease to the splines of propeller shaft 1 (3).
W11387670
Disconnecting Hydraulic Hose and Pipes
1. Slide the hose bands (1) and disconnect the inlet hose (2) from
the hydraulic pump.
2. Remove the joint bolt (6) and disconnect the PTO clutch delivery
pipe (3) from the regulator valve (7).
3. Remove the 3-points delivery pipe (4).
W10415900
Separating Engine and Clutch Housing Case
1. Support the flywheel housing case with a disassembling stand.
2. Support the mid case with a disassembling stand.
3. Remove the engine and clutch housing case mounting bolts and
nuts.
4. Separate the engine and the clutch housing case.
(When reassembling)
• Apply grease to the spline of clutch shaft.
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the flywheel housing and clutch housing.
W10156210
(1) Coupling
(2) Spring Pin
(3) Propeller Shaft 1
(4) Propeller Shaft Cover
(5) Coupling
(6) Spring Pin
(7) Bolt (M5)
(8) Propeller Shaft Cover
(1) Hose Band
(2) Inlet Hose
(3) PTO Clutch Delivery Pipe
(4) 3-Points Delivery Pipe
(5) Hydraulic Pump
(6) Joint Bolt (for PTO Clutch Delivery
Pipe)
(7) Regulator Valve
Tightening torque
Engine and clutch housing
mounting screw and nut
M12, grade 7
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
Engine and clutch housing
mounting stud bolt
39.2 to 49.0 N·m
4.0 to 5.0 kgf·m
28.9 to 36.2 lbf·ft
To Next Page
