2-S17
MX5100, WSM
CLUTCH

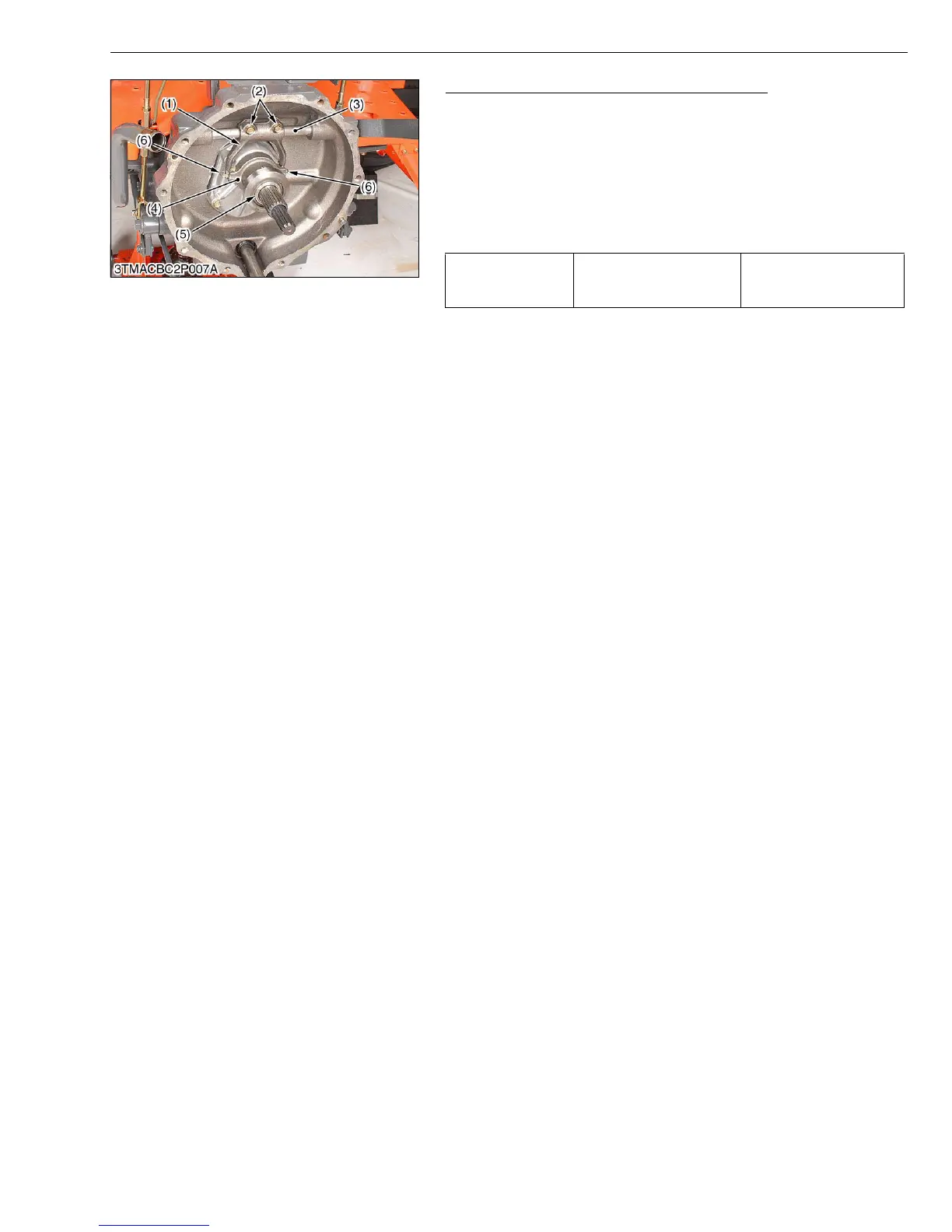

Removing Release Holder and Clutch Lever
1. Draw out the clutch release hub (4) and the release bearing (5)
as a unit.
2. Remove the release fork setting screws (2).
3. Draw out the clutch lever (3) to remove the release fork (1).
(When reassembling)
• Make sure the direction of the release fork (1) is correct.
• Inject grease to the release hub (4).
• Be sure to set the snap pins (6) on both sides.
W1017279
Tightening torque
Release fork setting
screws
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Release Fork
(2) Setting Screw
(3) Clutch Lever
(4) Release Hub
(5) Release Bearing
(6) Snap Pin
