1-S40
MX5100, WSM
ENGINE

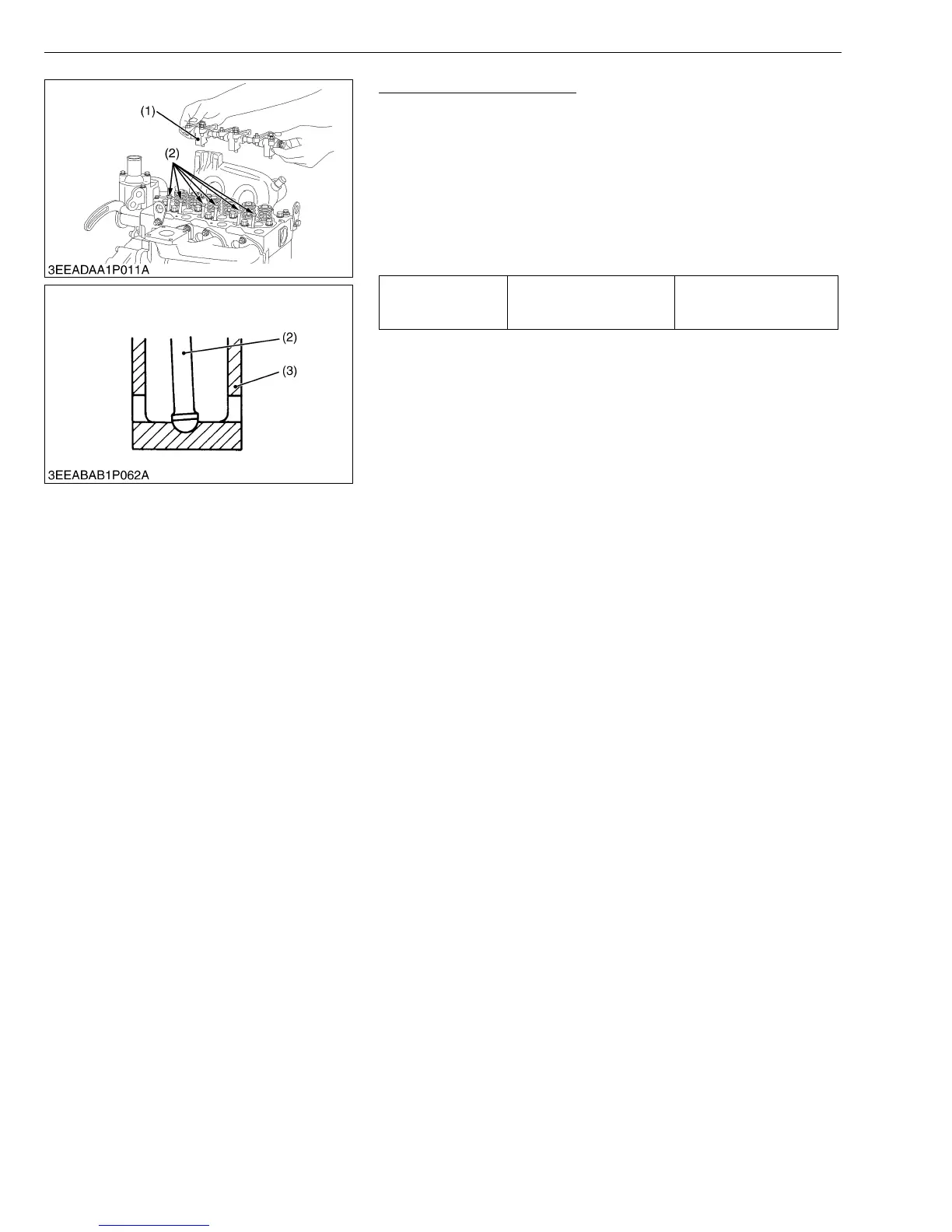

Rocker Arm and Push Rod
1. Remove the rocker arm bracket screws.
2. Detach the rocker arm assembly (1).
3. Remove the push rods (2).
(When reassembling)
• When putting the push rods (2) onto the tappets (3), check to see
if their ends are properly engaged with the grooves.
• After installing the rocker arm, be sure to adjust the valve
clearance.
W1021437
Tightening torque Rocker arm bracket screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Rocker Arm Assembly
(2) Push Rod
(3) Tappet
To Next Page
