1-S51
MX5100, WSM
ENGINE
Piston Ring and Connecting Rod
1. Remove the piston rings (1), (2), (3) using a piston ring tool.
2. Remove the piston pin (9), and separate the connecting rod (7)
from the piston (6).
(When reassembling)
• When installing the rings, assemble the rings so that the
manufacturer’s mark (12) near the gap faces the top of the piston
(6).
• When installing the oil ring (3) onto the piston (6), place the
expander joint (10) on the opposite side of the oil ring gap (11).
• Apply engine oil to the piston pin (9).
• When installing the connecting rod (7) to the piston (6), immerse
the piston (6) in 80 °C (176 °F) oil for 10 to 15 minutes and insert
the piston pin (9) to the piston (6).
• When installing the connecting rod (7) to the piston (6), align the
mark (8) on the connecting rod (7) to the fan-shaped concave (5).
• Mark the same number on the connecting rod (7) and the
piston (6) so as not to change the combination.
W1026376

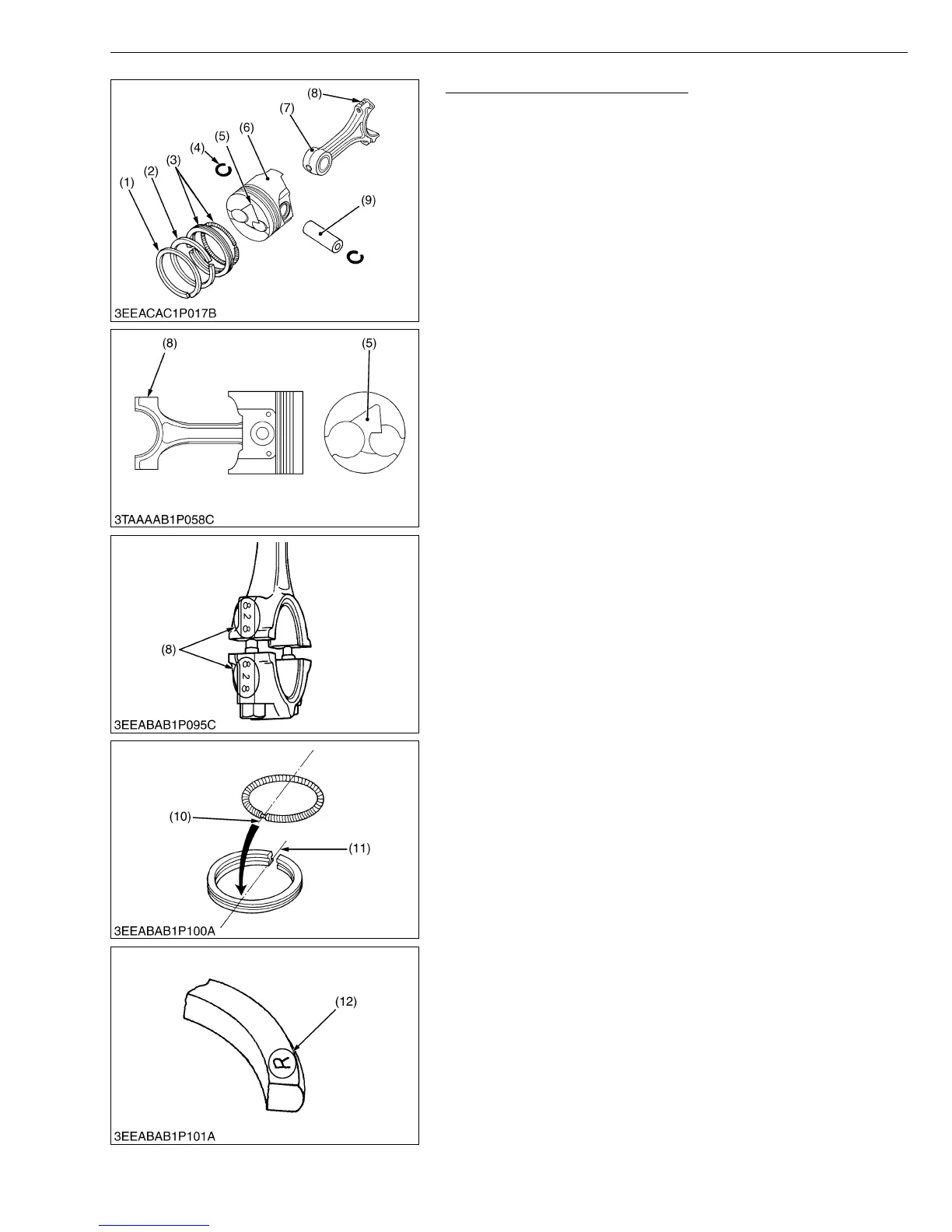

(1) Top Ring
(2) Second Ring
(3) Oil Ring
(4) Piston Pin Snap Ring
(5) Fan-Shaped Concave
(6) Piston
(7) Connecting Rod
(8) Mark
(9) Piston Pin
(10) Expander Joint
(11) Oil Ring Gap
(12) Manufacturer’s Mark
