CLUTCH
Disconnecting Wirings 2

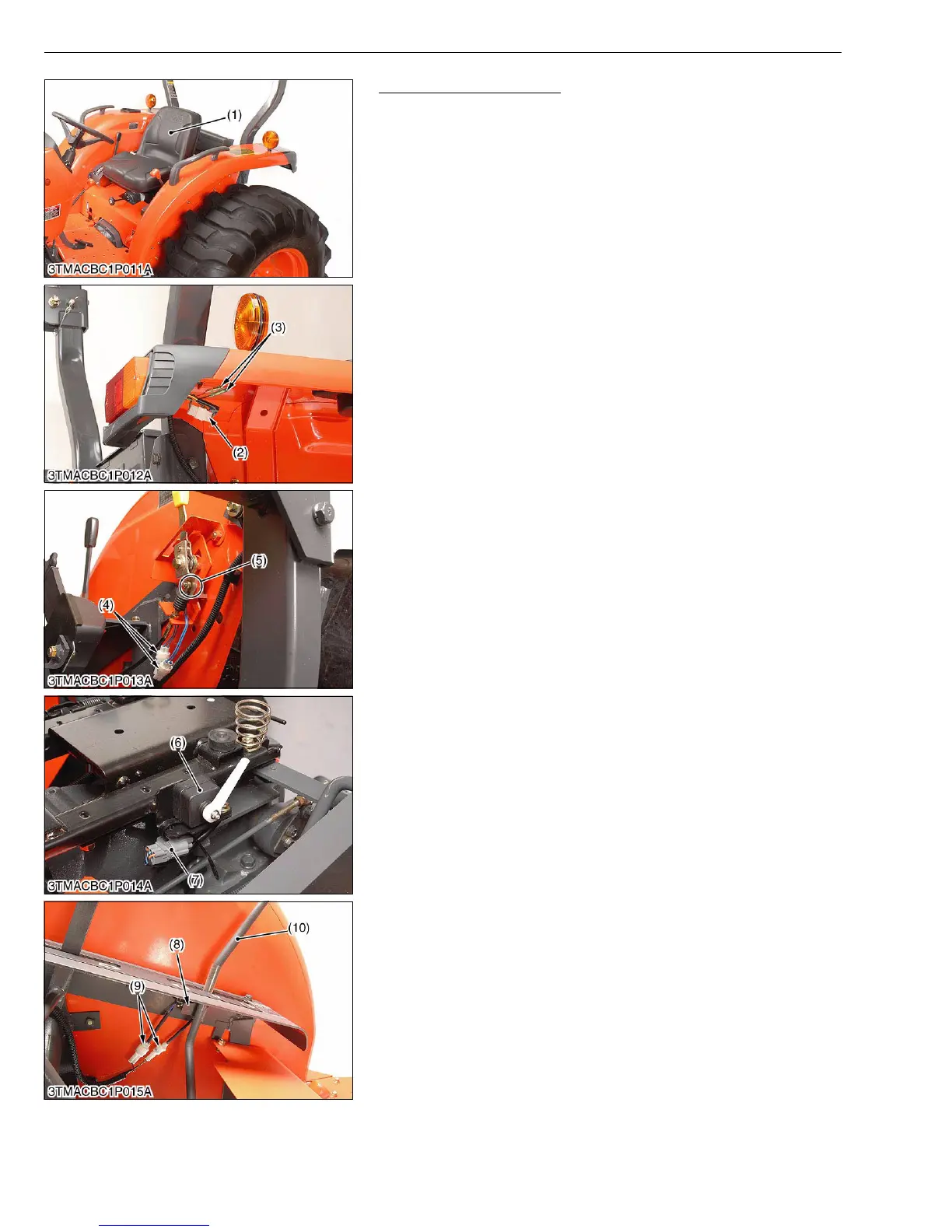

1. Remove the seat (1).
2. Disconnect the 4P rear combination lamp connector (2) and the
hazard lamp leads (3).
3. Disconnect the 2P connectors (4) from the PTO lever neutral
switch.
4. Disconnect the 3P connector (7) from the seat switch (6).
5. Disconnect the 2P connectors (9) from the shuttle shift neutral
switch (8).
W10431400
(1) Seat
(2) 4P Rear Combination Lamp
Connector
(3) Hazard Lamp Lead
(4) 2P Connector
(5) PTO Lever Neutral Switch
(6) Seat Switch
(7) 3P Connector
(8) Shuttle Shift Neutral Switch
(9) 2P Connector
(10) Synchro-Shuttle Shift Lever
