2-S26
MX5100, WSM
CLUTCH

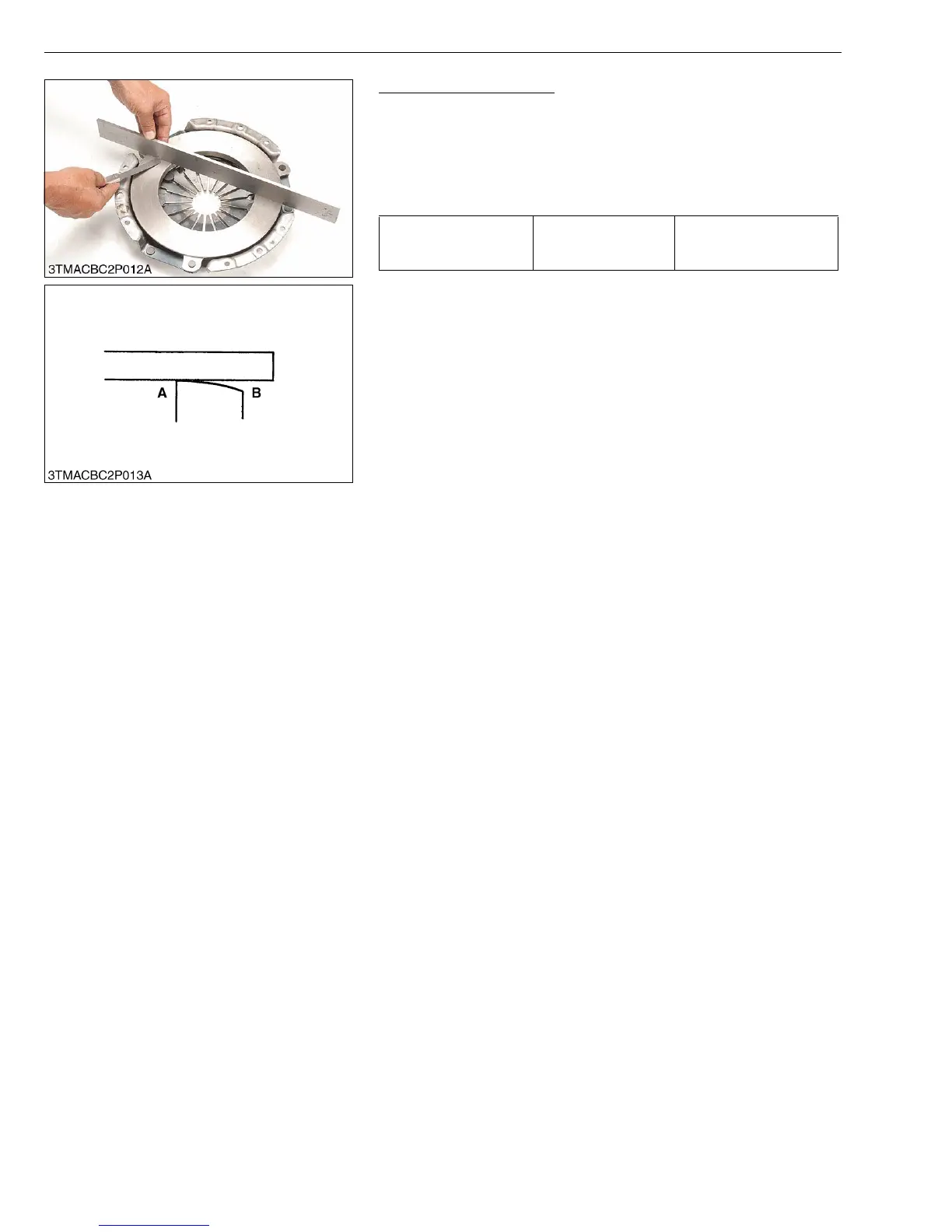

Pressure Plate Flatness
1. Place a straight edge on the pressure plate and measure
clearance with a feeler gauge at several points.
2. If the clearance exceeds the allowable limit, replace it.
3. When the pressure plate is worn around its outside and its inside
surface only is in contact with the straight edge, replace even if
the clearance is within the allowable limit.
W10176100
Clearance between
pressure plate and
straight edge
Allowable limit
0.2 mm
0.008 in.
A : Inside B : Outside
