3-S33
MX5100, WSM
TRANSMISSION

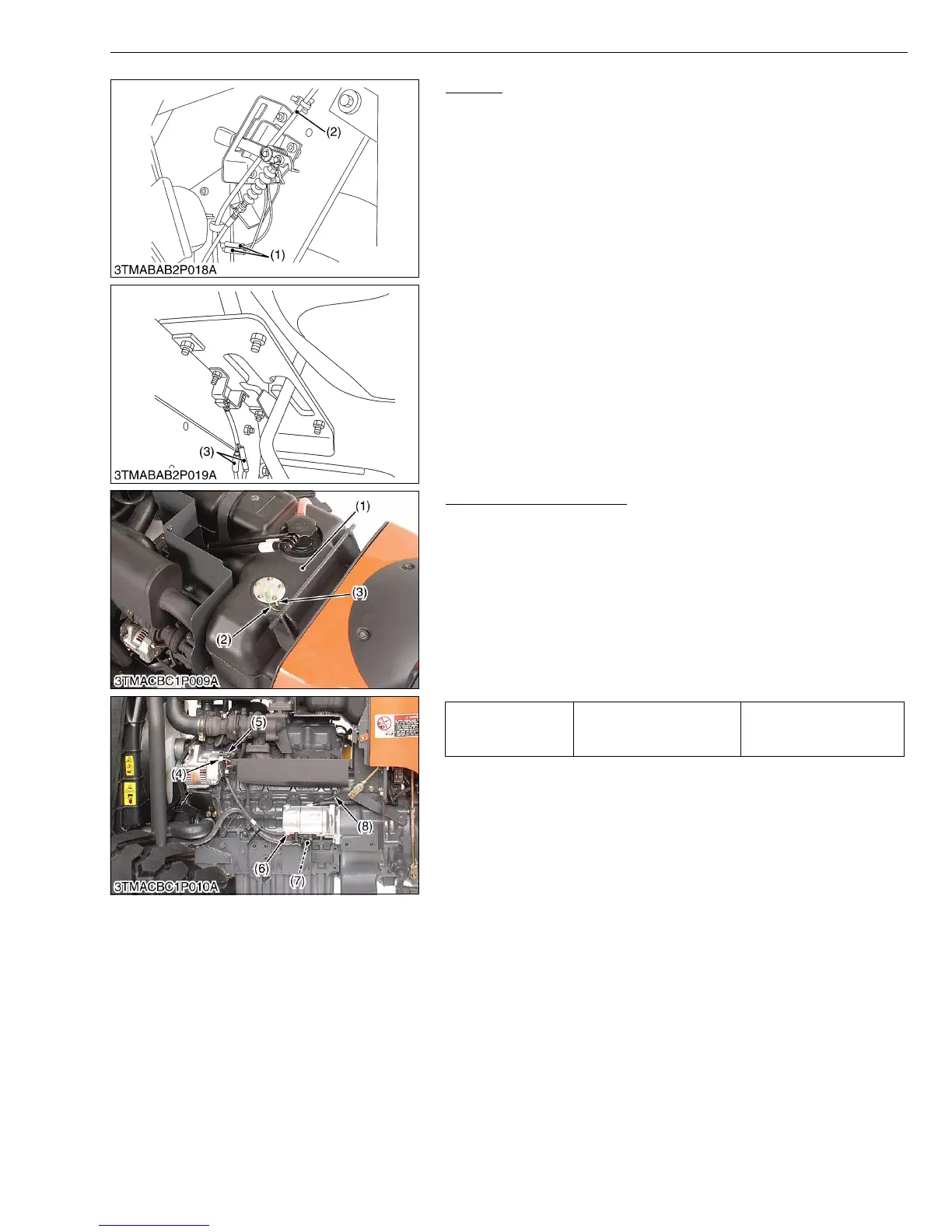

Wirings
1. Disconnect the 1P connector (1) for PTO safety switch.
2. Disconnect the 1P connector for hazard light (R.H.), (L.H.) and
remove the wiring (2) (R.H.), (L.H.).
3. Disconnect the 1P connector (3) for shuttle safety switch.
4. Remove the ground cable.
W10165740
Disconnecting Wirings 1
1. Disconnected the fuel sensor lead (2) from the fuel level sensor
and the ground lead (3) from the fuel tank (1).
2. Disconnected the 2P connector (4) and the B terminal lead (?)
from the alternator.
3. Remove the starter B terminal mounting nut (7) and
disconnected the B terminal lead from the starter B terminal.
4. Disconnect the ST terminal lead (6) from the battery ST terminal.
5. Disconnect the engine oil pressure switch lead (8) from the
engine oil pressure switch.
(When reassembling)
W10395810
(1) 1P Connector for PTO Safety Switch
(2) Wiring for Hazard Light
(3) 1P Connector for Shuttle Safety
Switch
Tightening torque
Starter B terminal
mounting nut
7.8 to 9.8 N·m
0.8 to 1.0 kgf·m
5.8 to 7.2 lbf·ft
(1) Fuel Tank
(2) Fuel Level Sensor Lead
(3) Ground Lead
(4) 2P Connector
(5) B Terminal Lead (Alternator)
(6) ST Terminal Lead
(7) B Terminal Lead
(8) Engine Oil Pressure Switch Lead
To Next Page
