3-S46
MX5100, WSM
TRANSMISSION

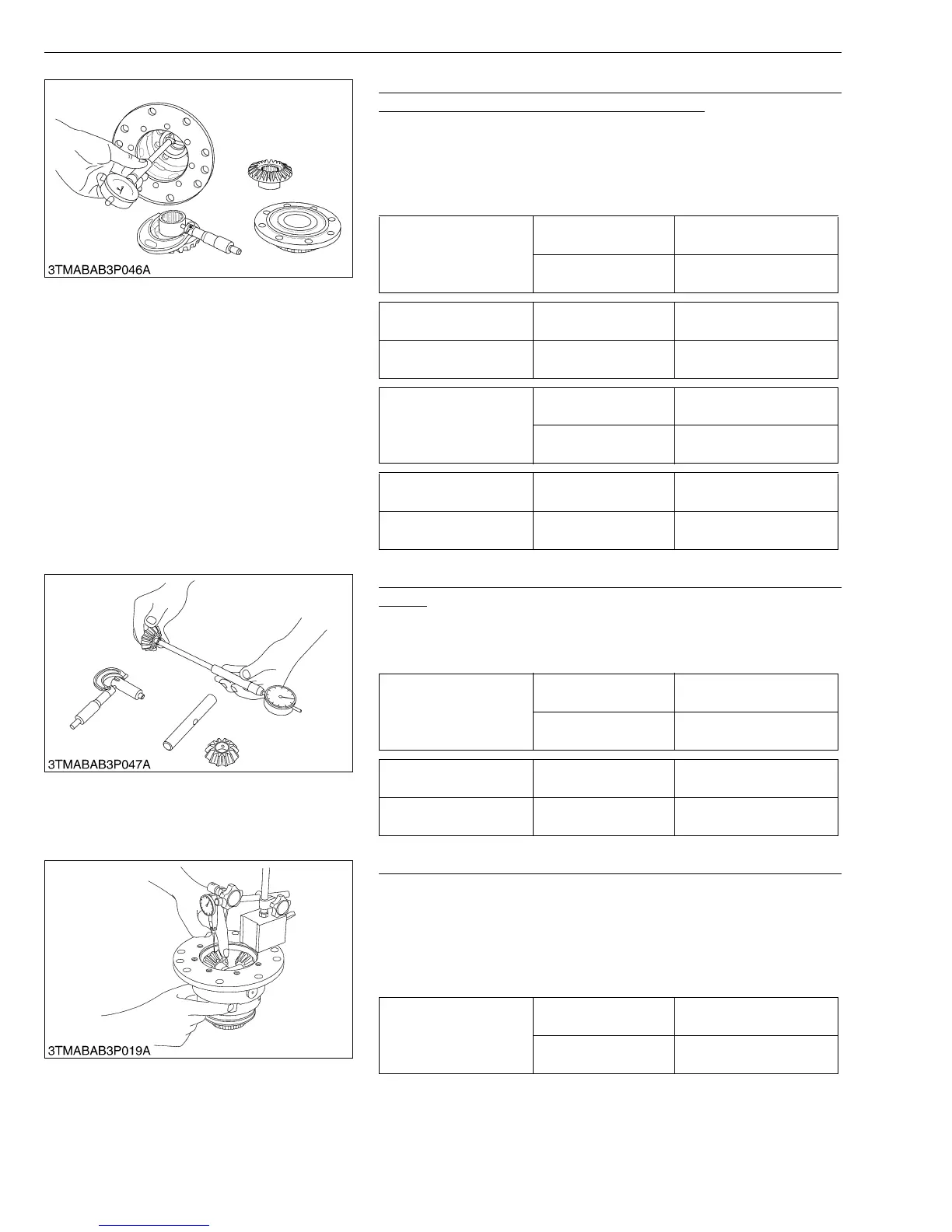

Clearance between Differential Case Bore (Differential Case
Cover Bore) and Differential Side Gear Boss
1. Measure the bore I.D. of the differential case and differential case
cover.
2. Measure the differential side gear boss O.D. and calculate the
clearance.
3. If the clearance exceeds the allowable limit, replace them.
W10284030
Clearance between Differential Pinion Shaft and Differential
Pinion
1. Measure the differential pinion shaft O.D.
2. Measure the differential pinion I.D. and calculate the clearance.
3. If the clearance exceed the allowable limit, replace them.
W10287600
Backlash between Differential Pinion and Differential Side Gear
1. Set a dial indicator (lever type) on the tooth of the differential
pinion.
2. Hold the differential side gear and move the differential pinion to
measure the backlash.
3. If the measurement is not within the factory specifications, adjust
with the differential side gear washer.
(Reference)
• Thickness of differential side gear washer :
1.5 mm (0.059 in.) 1.7 mm (0.067 in.)
1.6 mm (0.063 in.)
W10289200
Clearance between
differential case bore
and differential side gear
boss
Factory spec.
0.050 to 0.151 mm
0.00197 to 0.00594 in.
Allowable limit
0.35 mm
0.0138 in.
Differential case bore
I.D.
Factory spec.
40.500 to 40.550 mm
1.59449 to 1.59646 in.
Differential side gear
boss O.D.
Factory spec.
40.388 to 40.450 mm
1.59008 to 1.59252 in.
Clearance between
differential case cover
bore and differential side
gear boss
Factory spec.
0.050 to 0.151 mm
0.00197 to 0.00594 in.
Allowable limit
0.35 mm
0.0138 in.
Differential case cover
bore I.D.
Factory spec.
40.500 to 40.550mm
1.59449 to 1.59646 in.
Differential side gear
boss O.D.
Factory spec.
40.388 to 40.450 mm
1.59008 to 1.59252 in.
Clearance between
differential pinion shaft
and differential pinion
Factory spec.
0.060 to 0.102 mm
0.00236 to 0.00402 in.
Allowable limit
0.25 mm
0.0098 in.
Differential pinion shaft
O.D.
Factory spec.
19.959 to 19.980 mm
0.78579 to 0.78661 in.
Differential pinion I.D. Factory spec.
20.040 to 20.061 mm
0.78898 to 0.78980in.
Backlash between
differential pinion and
differential side gear
Factory spec.
0.15 to 0.30 mm
0.0059 to 0.0118 in.
Allowable limit
0.4 mm
0.016 in.
