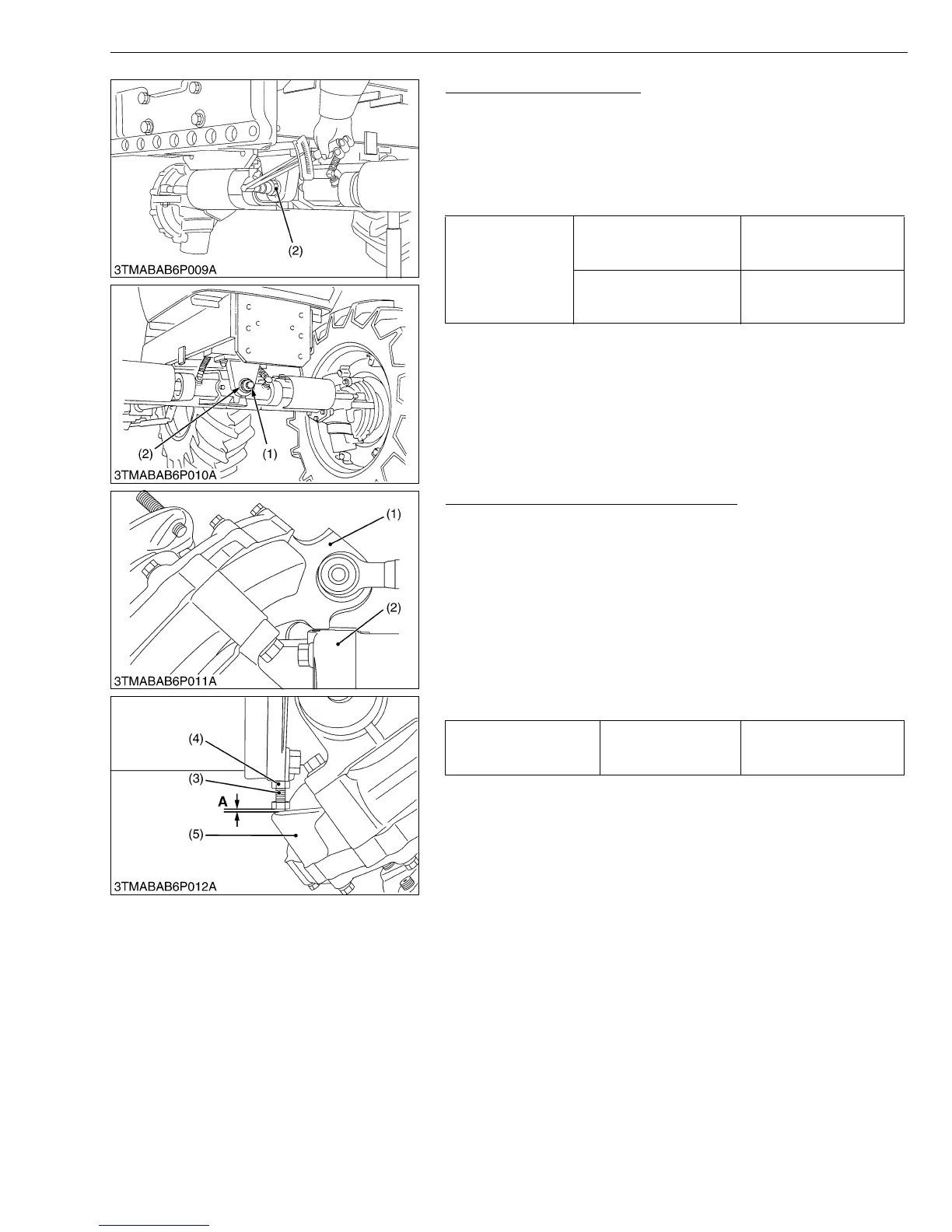

Adjusting Front Axle Pivot
1. Jack up the tractor body, then loosen the lock nut (2).
2. Measure the adjusting screw tightening torque.
3. If tightening torque is not within the factory specifications, adjust
the adjusting screw (1).
4. After adjustment, tighten the lock nut firmly.
(When reassembling)
W10122030
Front Wheel Steering Angle (4WD Only)
1. Inflate the tires to the specified pressure.
2. Steer the wheels to the extreme right until the front gear case (1)
contacts with the bevel gear case (2) at right hand side of the
front axle.
3. If the front gear case (1) can not be contacted with the bevel gear
case (2), shorten the length of stopper (3).
4. Keeping the front gear case (1) contact with the bevel gear case
(2), make a specified clearance (A) as shown in the lower table.
5. After adjustment, secure the stopper with the lock nut (4).
6. For adjusting the left steering angle, perform the same procedure
as mentioned in right steering angle.
W10126440
Tightening torque
Front axle pivot adjusting
screw
19.6 to 29.4 N·m
2.0 to 3.0 kgf·m
14.5 to 21.7 lbf·ft
Front axle pivot lock nut
58.0 to 98.0 N·m
6.0 to 10.0 kgf·m
43.4 to 72.3 lbf·ft
(1) Adjusting Screw (2) Lock Nut
Clearance (A) between
bevel gear case and
stopper
Factory spec.
1.0 to 3.0 mm
0.04 to 0.12 in.
(1) Front Gear Case
(2) Bevel Gear Case
(3) Stopper
(4) Lock Nut
(5) Front Gear Case
A : Clearance
