6-S12
MX5100, WSM
FRONT AXLE

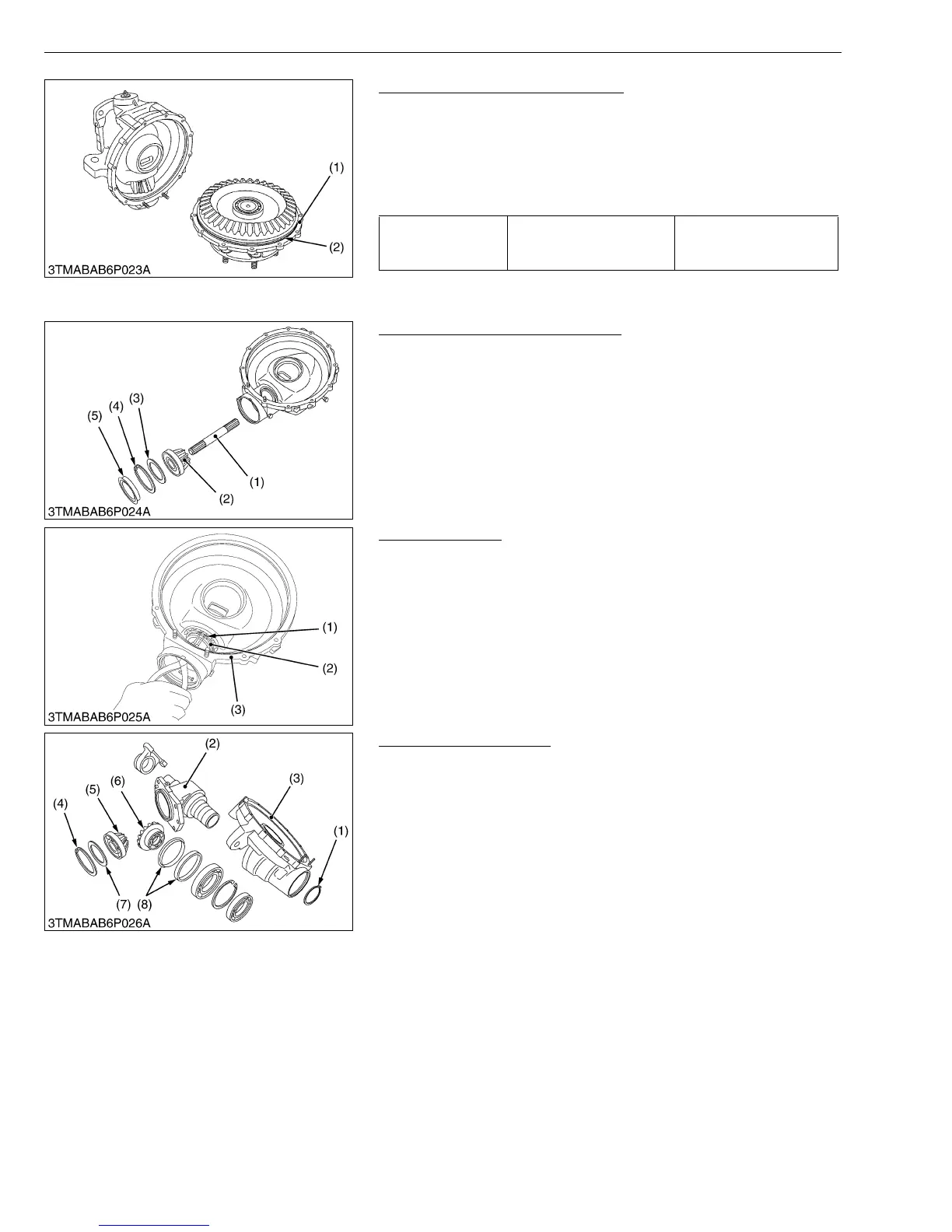

Axle Flange and Front Gear Case
1. Remove the axle flange mounting screws.
2. Remove the axle flange (1).
(When reassembling)
• Apply grease to the O-ring (2) of axle flange.
• Tighten the axle flange mounting screws and nuts diagonally in
several steps.
W10156660
Bevel Gear and Bevel Gear Shaft
1. Remove the plug (5).
2. Remove the internal snap ring (4) and shim (3).
3. Tap out the bevel gear (2) with ball bearing.
4. Draw out the bevel gear shaft (1).
W10159240
Bevel Gear Case
1. Remove the external snap ring (1).
2. Tap the bevel gear case (2) and separate it from the front gear
case (3).
W10160540
Bevel Gear Case Gears
1. Remove the internal snap ring (4).
2. Take out the bevel gears (5), (6) with ball bearings, and shims
(7).
(When reassembling)
• Install the shims (7) to their original position.
• Install the oil seal (8) of bevel gear case, noting its direction.
W10162270
Tightening torque
Axle flange mounting
screw
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
(1) Axle Flange (2) O-ring
(1) Bevel Gear Shaft
(2) Bevel Gear
(3) Shim
(4) Internal Snap Ring
(5) Plug
(1) External Snap Ring
(2) Bevel Gear Case
(3) Front Gear Case
(1) External Snap Ring
(2) Bevel Gear Case
(3) Front Gear Case
(4) Internal Snap Ring
(5) Bevel Gear
(6) Bevel Gear
(7) Shim
(8) Oil Seal
