6-S15
MX5100, WSM
FRONT AXLE
Differential Gear
1. Remove the differential case cover mounting screws (12) and
then take out the differential case cover (4), ball bearing (3) and
spiral bevel gear (2) as a unit.
2. Remove the external snap ring (1), and then remove the ball
bearing (3) and spiral bevel gear (2) as a unit with a puller.
3. Remove the straight pin (9).
4. Pull out the pinion shaft (11) and take out the differential pinions
(4) and differential side gears (6).
(When reassembling)
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
the inner circumferential surface of the differential side gears (6)
and differential pinions (8).
W10174670
Tightening torque
Differential case cover
mounting screw
60.8 to 70.6 N·m
6.2 to 7.2 kgf·m
44.8 to 52.1 lbf·ft

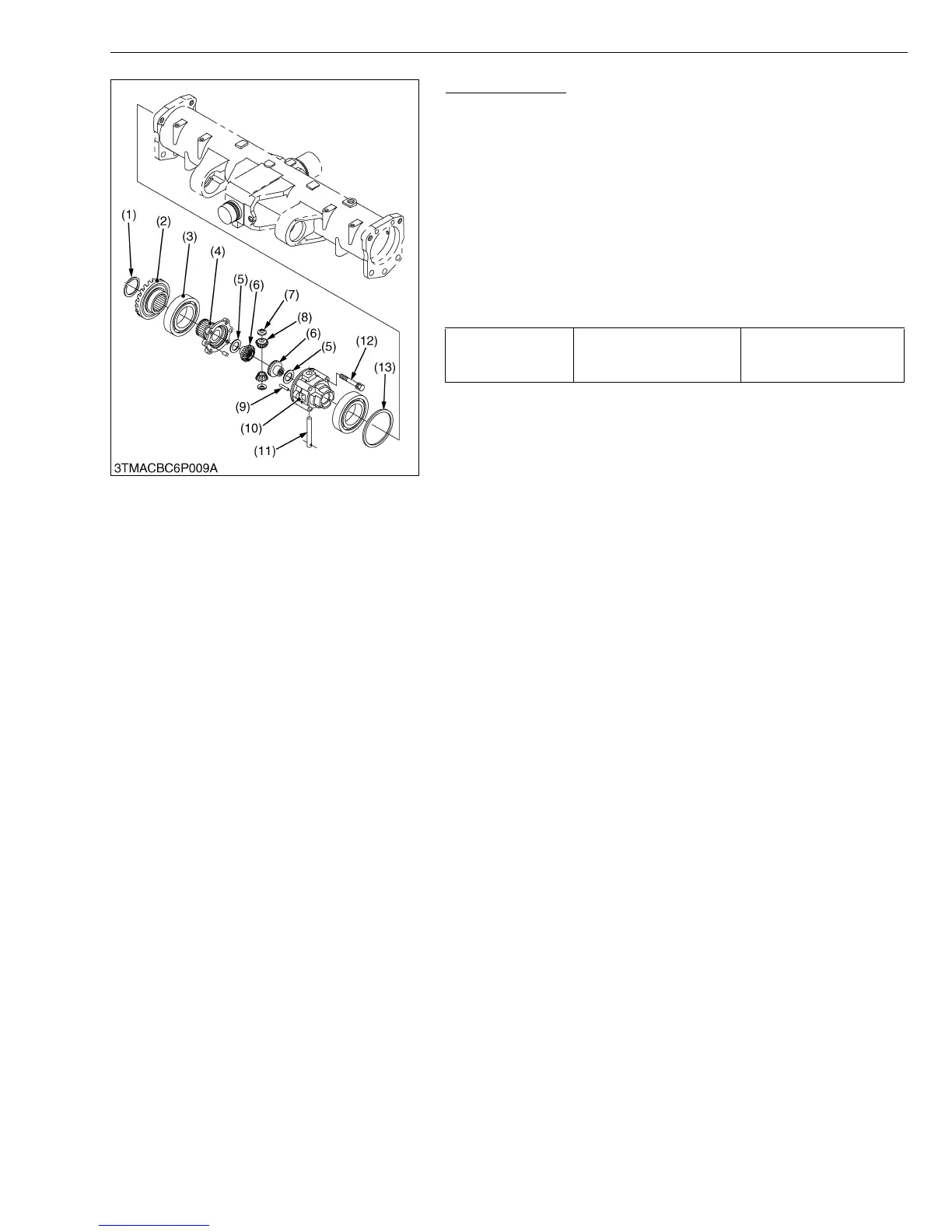

(1) External Snap Ring
(2) Spiral Bevel Gear
(3) Ball Bearing
(4) Differential Case Cover
(5) Shim
(6) Differential Side Gear
(7) Thrust Collar
(8) Differential Pinion
(9) Straight Pin
(10) Differential Case
(11) Pinion Shaft
(12) Differential Case Cover Mounting
Screw
(13) Shim
