7-S14
MX5100, WSM
STEERING

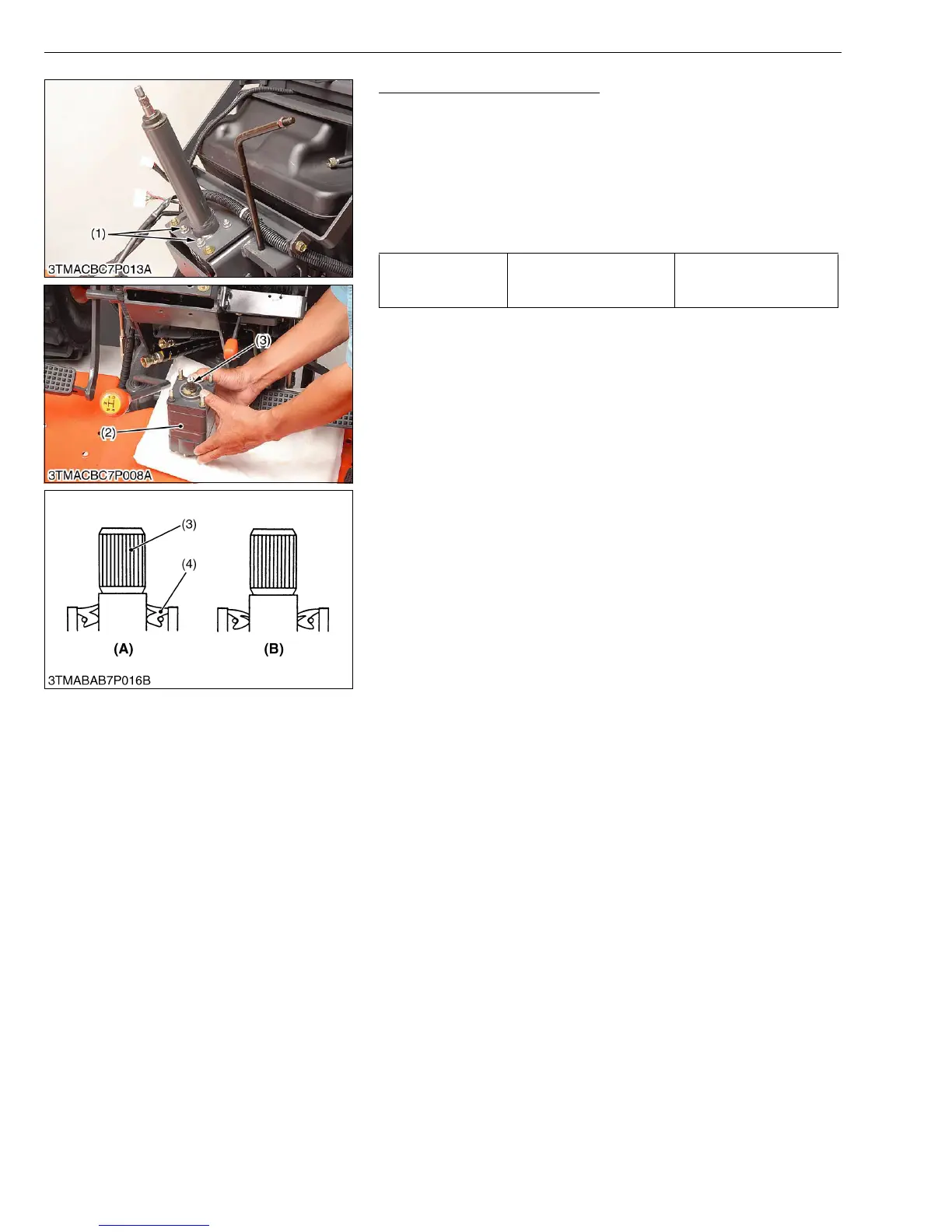

Removing Steering Controller
1. Loosen and remove the steering controller mounting nuts (1).
2. Take out the steering controller (2) and joint shaft (3) as an
assembly.
(When reassembling)
• Apply grease to the joint shaft (3).
• Check the dust seal (4). (Refer to figure left.)
• If the oil leakage is found, replace the steering controller as an
assembly.
W10335670
Tightening torque
Steering controller
mounting nuts
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Nut
(2) Steering Controller
(3) Joint Shaft
(4) Dust Seal
(A) Correct
(B) Incorrect
