7-S16
MX5100, WSM
STEERING
Removing Steering Cylinder
CAUTION
• Since power steering cylinder is full of high-pressured
transmission oil, the high-pressured oil is injected out from
hose joints by pushing the front wheel.
• This injected oil can penetrate the skin or eyes causing
serious injury.
• Use appropriate protective wear to prevent serious injury.
• Use waste to cover the hose joints.
• Before disassembling, drain steering oil from power
steering cylinder.
1. Remove the tie-rod joint (1) (right and left).
2. Remove the nipples (2) from steering cylinder.
3. Remove the internal snap ring (3).
4. Draw out the steering cylinder to the left.
(When reassembling)
• After liquid lock (Three Bond 1372 or equivalent) to the tie-rod
joint.
W10372630
Tightening torque
Tie-rod joint and steering
cylinder
166.6 to 196.0 N·m
17.0 to 20.0 kgf·m
122.9 to 144.6 lbf·ft

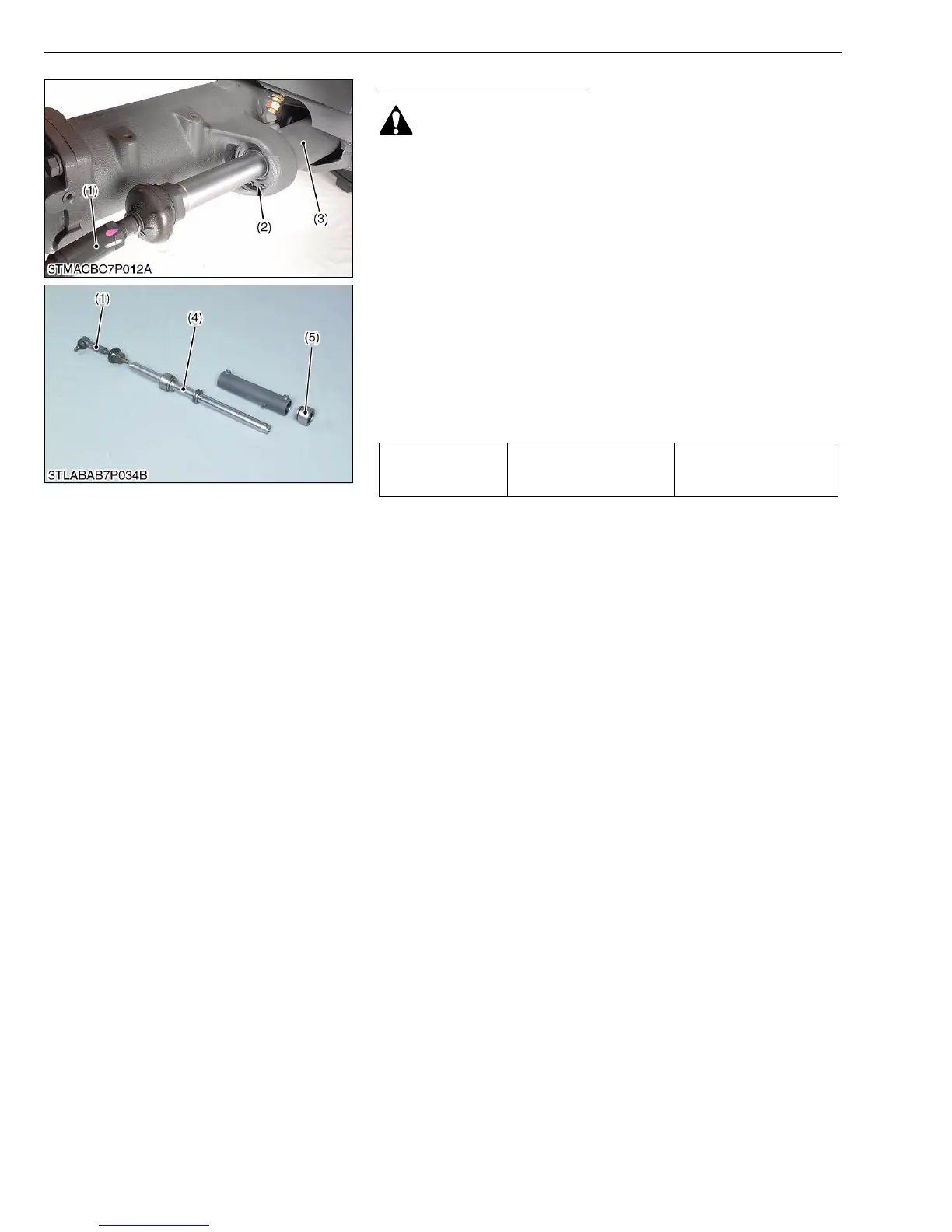

(1) Tie-rod Joint
(2) Internal Snap Ring
(3) Hose Joint
(4) Cylinder Rod
(5) Head Cover
To Next Page
