G-25
MX5100, WSM
G GENERAL

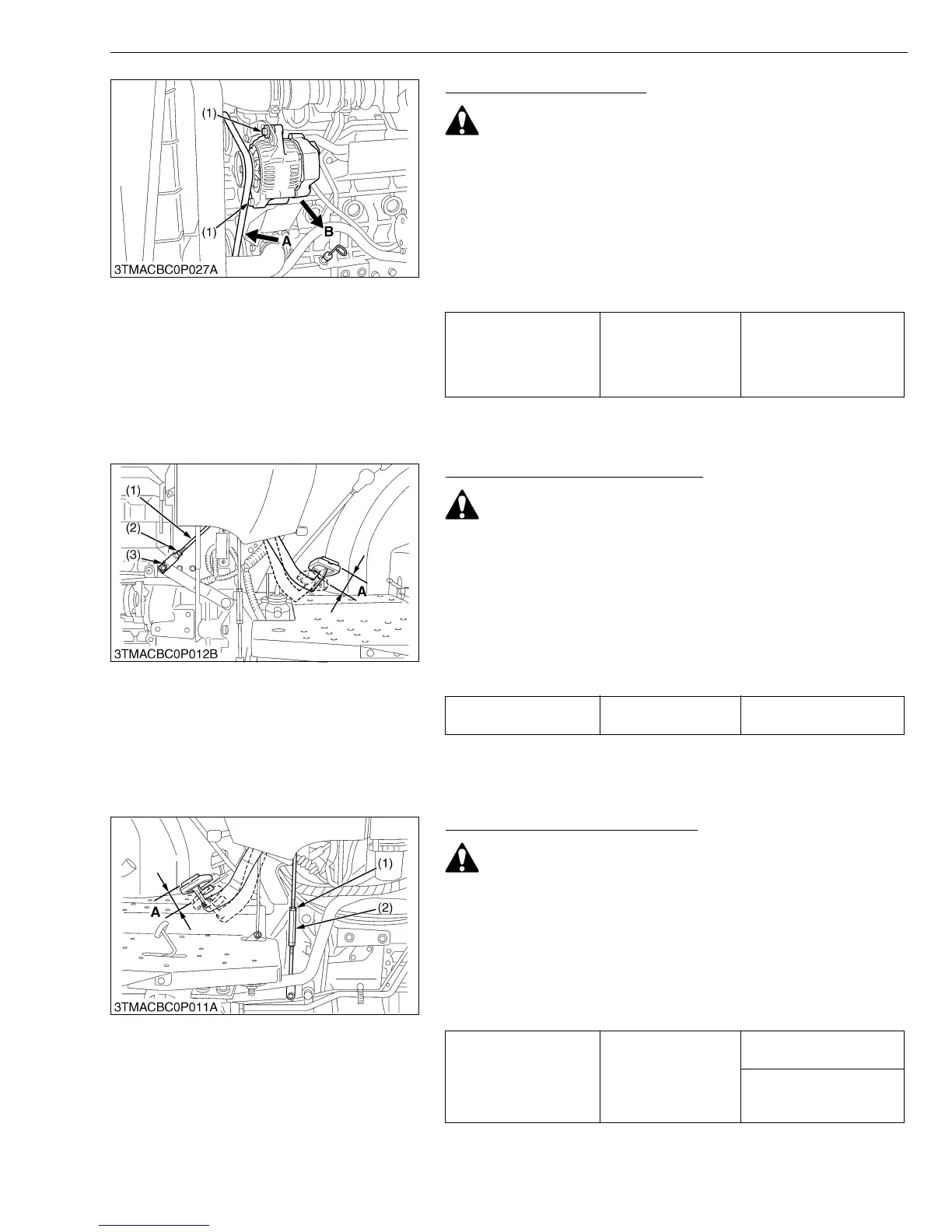

Adjusting Fan Belt Tension
CAUTION
• Be sure to stop the engine before checking and adjusting
the belt tension.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between pulleys.
3. If tension is incorrect, loosen the alternator mounting bolts and
using a lever placed between the alternator and the engine block,
pull the alternator out until the deflection of the belt falls within the
factory specifications.
4. Replace fan belt if it is damaged.
W10326270
Adjusting Clutch Pedal Free Travel
CAUTION
• When checking and adjusting the clutch pedal free travel,
park the tractor on a flat ground, apply the parking brake,
stop the engine and remove the key,
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free travel (A) at
top of pedal stroke.
3. If adjustment is needed, loosen the lock nut (2), remove the cotter
pin (3) and adjust the rod length within acceptable limits.
4. Retighten the lock nut (2) and split the cotter pin.
W10329220
Adjusting Brake Pedal Free Travel
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel (A) at
top of pedal stroke.
3. If adjustment is needed, loosen the lock nut (1) and turn the
turnbuckle (2) to adjust the rod length within acceptable limits
4. Retighten the lock nut (1).
W10331810
Fan belt tension Factory spec.
A deflection is 12 mm
(0.48 in.) when the belt is
pressed (68.6 N (7 kgf,
15.4 lbf)) in the middle of
the span.
(1) Alternator Mounting Bolt A : Check the belt tension
B : To Tighten
Clutch pedal free travel Factory spec.
20 to 30 mm (13/16 to 1-
3/16 in.) on the pedal
(1) Clutch Rod
(2) Lock Nut
(3) Cotter Pin
A : Free Travel
Brake pedal free travel Factory spec.
15 to 20 mm (5/8 to 13/16
in.) on the pedal
Keep the free travel in the
right and left brake pedals
equal
(1) Lock Nut
(2) Turnbuckle
A : Free Travel
To Next Page
