ELECTRICAL SYSTEM
Checking Seat Switch
1. Remove the seat.
2. Disconnect the seat switch connector (3).
3. Change the angle of the seat switch lever (1) and measure the
resistance between connector terminals, referring to the table
below.
4. If resistance is not correct, switch is faulty.
W1042630

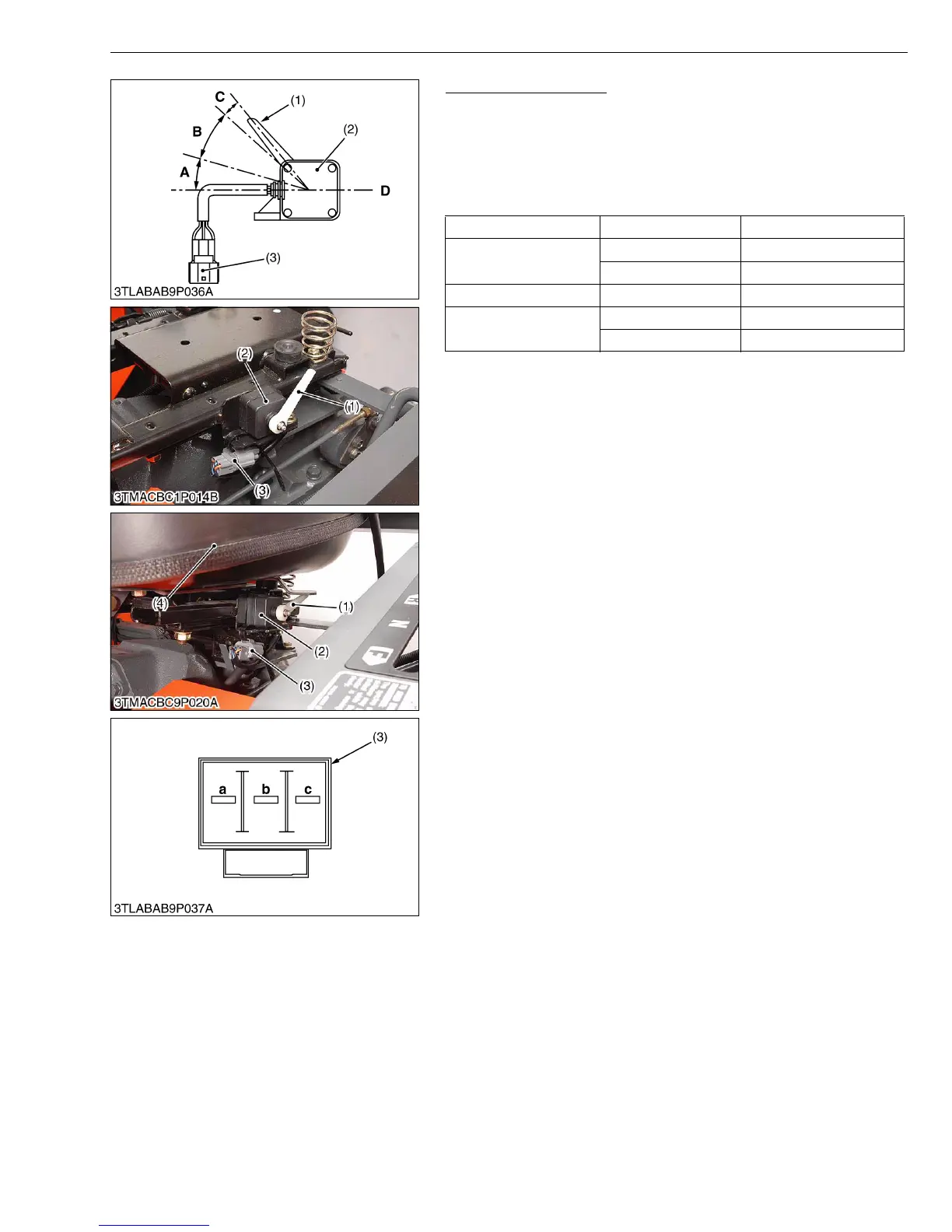

Sensor bar angle Measuring terminal Resistance
Approx. 18° (Angle A)
a - c 0 Ω
a - b, b - c Infinity
Approx. 25° (Angle B) a - b, a - c, b - c Infinity
Approx. 5° (Angle C)
b - c 0 Ω
a - b, a - c Infinity
(1) Seat Switch Lever
(2) Seat Switch
(3) Seat Switch Connector
(4) Seat
A : Angle approx. 18°
B : Angle approx. 25°
C : Angle approx. 5°
D : Seat Suspension Plate Line
(Reference Line)
a : Terminal (Orange)
b : Terminal (Blue)
c : Terminal (Black)
