9-S16
MX5100, WSM
ELECTRICAL SYSTEM

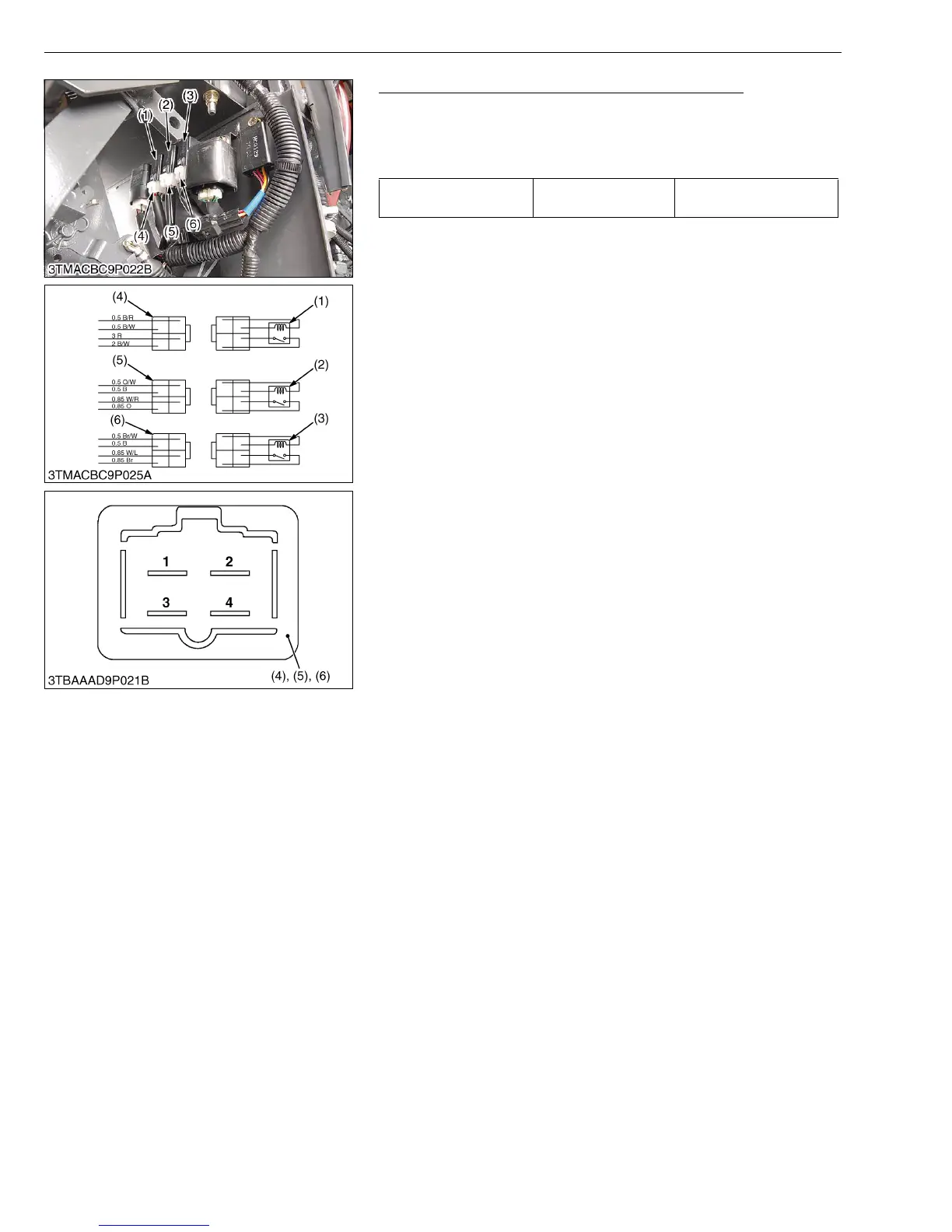

Starter Relay (Lo Lamp Relay and Hi Lamp Relay)
1. Open the panel board and remove the starter relay.
2. Apply battery voltage between terminal 2 and 4, and check for
continuity between terminal 1 and 3.
3. If 0 ohm is not indicated, renew the starter relay.
W1088137
Resistance
Terminal 1 -
Terminal 3
0 Ω
(1) Starter Relay
(2) Lo Lamp Relay
(3) Hi Lamp Relay
(4) Connector (for Starter Relay)
(5) Connector (for Lo Lamp Relay)
(6) Connector (for Hi Lamp Relay)
1 to 4 :Terminal
