Injection
CAUTION
• When a calcium chloride solution is used, cool it before
pouring it into the tire.
• Do not fill tires with water or solution more than 75 % of full
capacity (to the valve stem level).
The following four ways can be used to inject water or a calcium
chloride solution into tires.

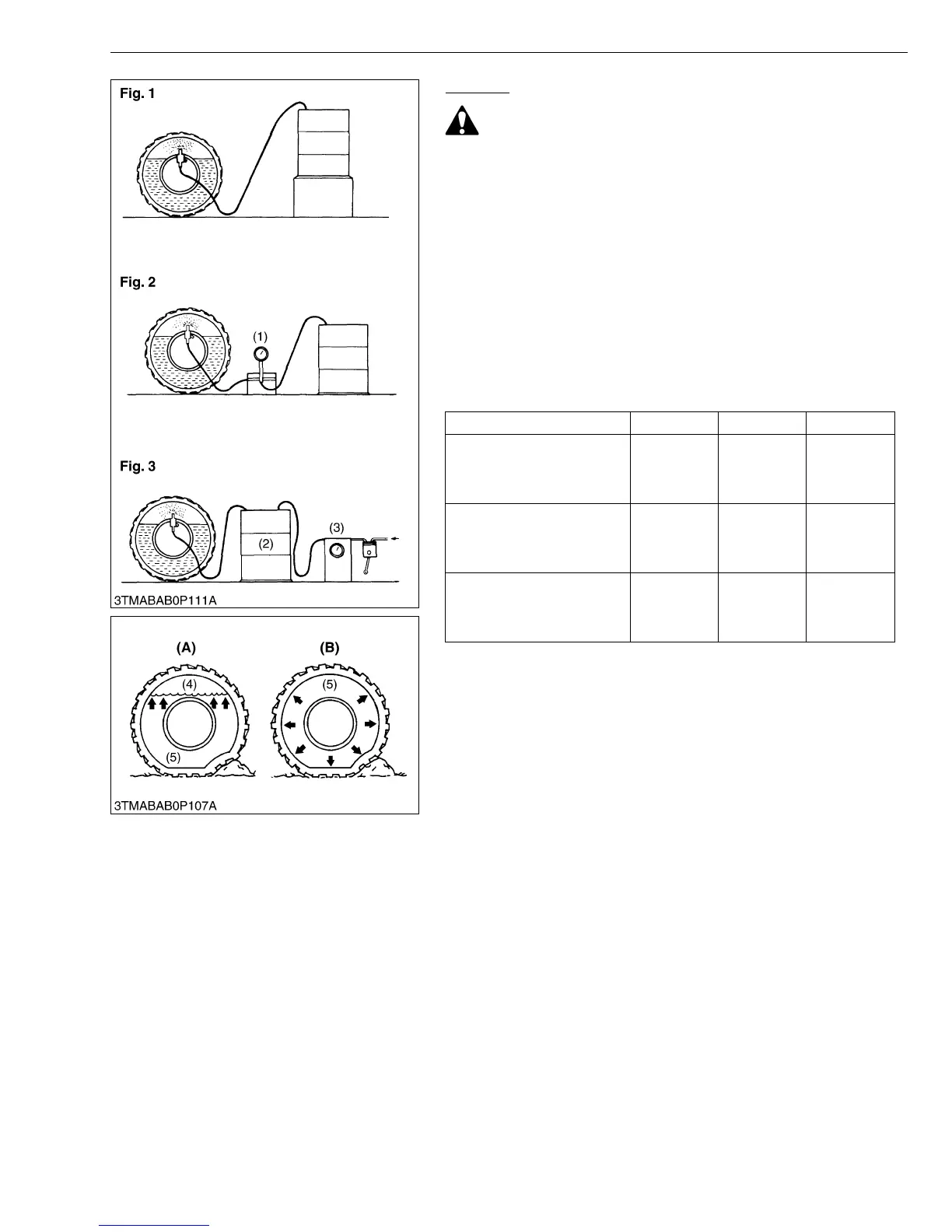

1. Gravity injection (Fig. 1)
2. Pump injection (Fig. 2)
3. Pressure tank injection (Fig. 3)
4. Injection directly from tap (only when water is being used).
NOTE
• Once injection is completed, reset the air valve, and pump
air into the tire to the specified pressure.
[Liquid weight per tire (75 % filled)]
W10334350
Tire sizes 14.9 – 26 13.6 – 28 17.5L – 24
Slush free at −10 °C (14 °F)
Solid at −30 °C (−22 °F)
[Approx. 1 kg (2 lbs) CaCl
2
per 4 L (1 gal.) of water]
215 kg
(470 lbs)
185 kg
(410 lbs)
235 kg
(515 lbs)
Slush free at −24 °C (−11 °F)
Solid at −47 °C (−53 °F)
[Approx. 1.5 kg (3.5 lbs)
CaCl
2 per 4 L (1 gal.) of water]
225 kg
(495 lbs)
200 kg
(440 lbs)
250 kg
(550 lbs)
Slush free at −47 °C (−53 °F)
Solid at −52 °C (−62 °F)
[Approx. 2.25 kg (5 lbs) CaCl
2
per 4 L (1 gal.) of water]
235 kg
(520 lbs)
215 kg
(470 lbs)
265 kg
(585 lbs)
(1) Pump
(2) Pressure Tank
(3) Compressor
(4) Air
(5) Water
(A) Correct : 75 %
Air Compresses Like A Cushion
(B) Incorrect : 100 % Full
Water Can Not Be Compressed
