Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-3-52
U403 Scan Margin Tbl
Description
Adjusts margins for scanning the original on the contact glass.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Display Description
Setting
range
Initial
setting
Change in
value per step
A Margin Scanner left margin. 0.0 to 10.0 2.0 0.5
B Margin Scanner leading edge margin. 0.0 to 10.0 2.0 0.5
C Margin Scanner right margin. 0.0 to 10.0 2.0 0.5
D Margin Scanner trailing edge margin. 0.0 to 10.0 2.0 0.5
6. Change the setting value using change the cursor right/left keys or numeric keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.

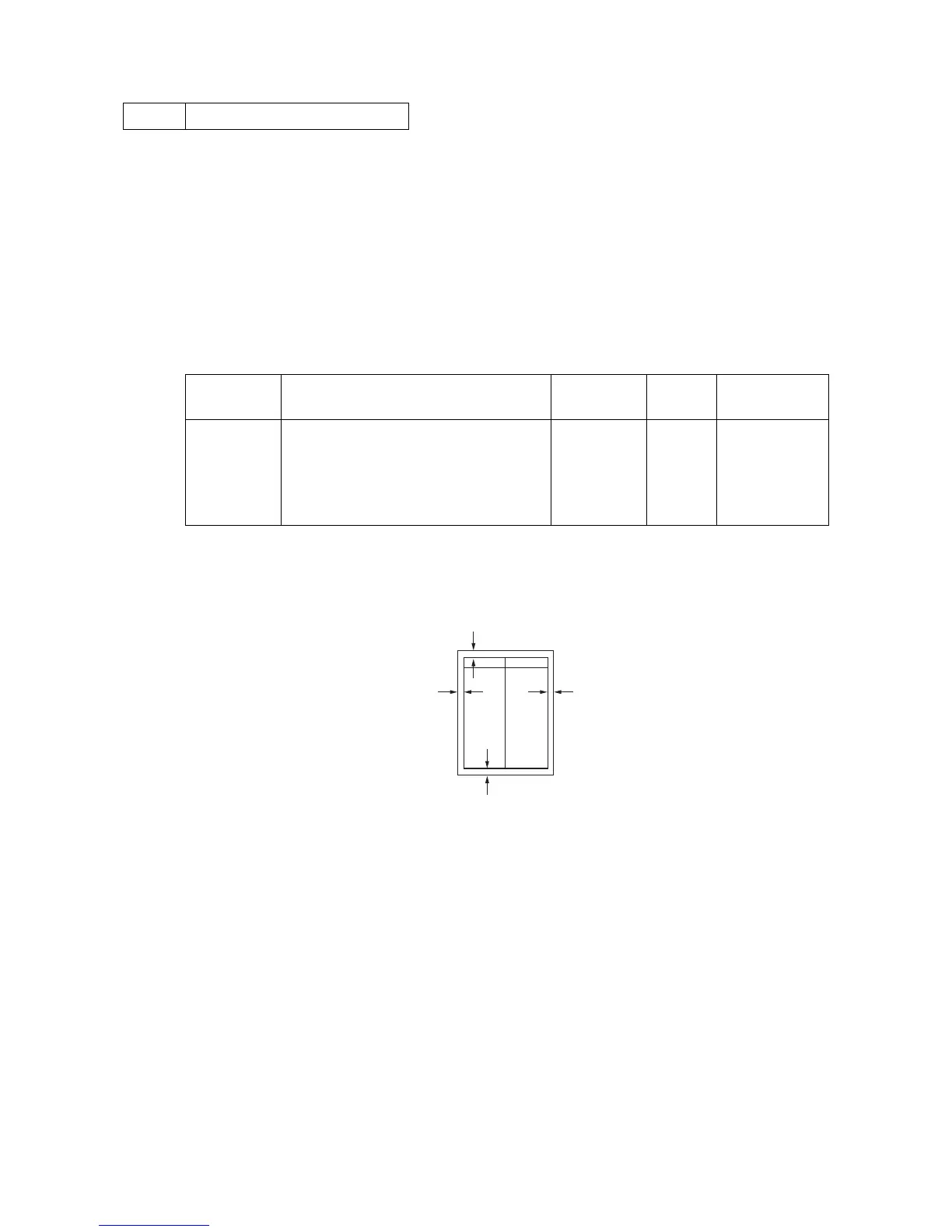

Figure 1-3-14
7. Press the start key. The value is set.
Caution
If the above adjustment does not optimize the margins, perform the following maintenance modes.
U034 -------- U402 -------- U403
(P.1-3-24) (P.1-3-51)
Completion
Press the stop key. The indication for selecting a maintenance item No. appears.
Leading edge margin of the copy image
(3.0 ±2.5 mm)
Left margin of
the copy image
(2.5 +1.5/-2.0 mm)
Right margin of
the copy image
(2.5 +1.5/-2.0 mm)
Trailing edge margin of the copy image
(3.0 ±2.5 mm)
