Kyocera ECOSYS M3040dn

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-9
(2-1) Detaching and refitting the MP paper feed pulley
Procedure

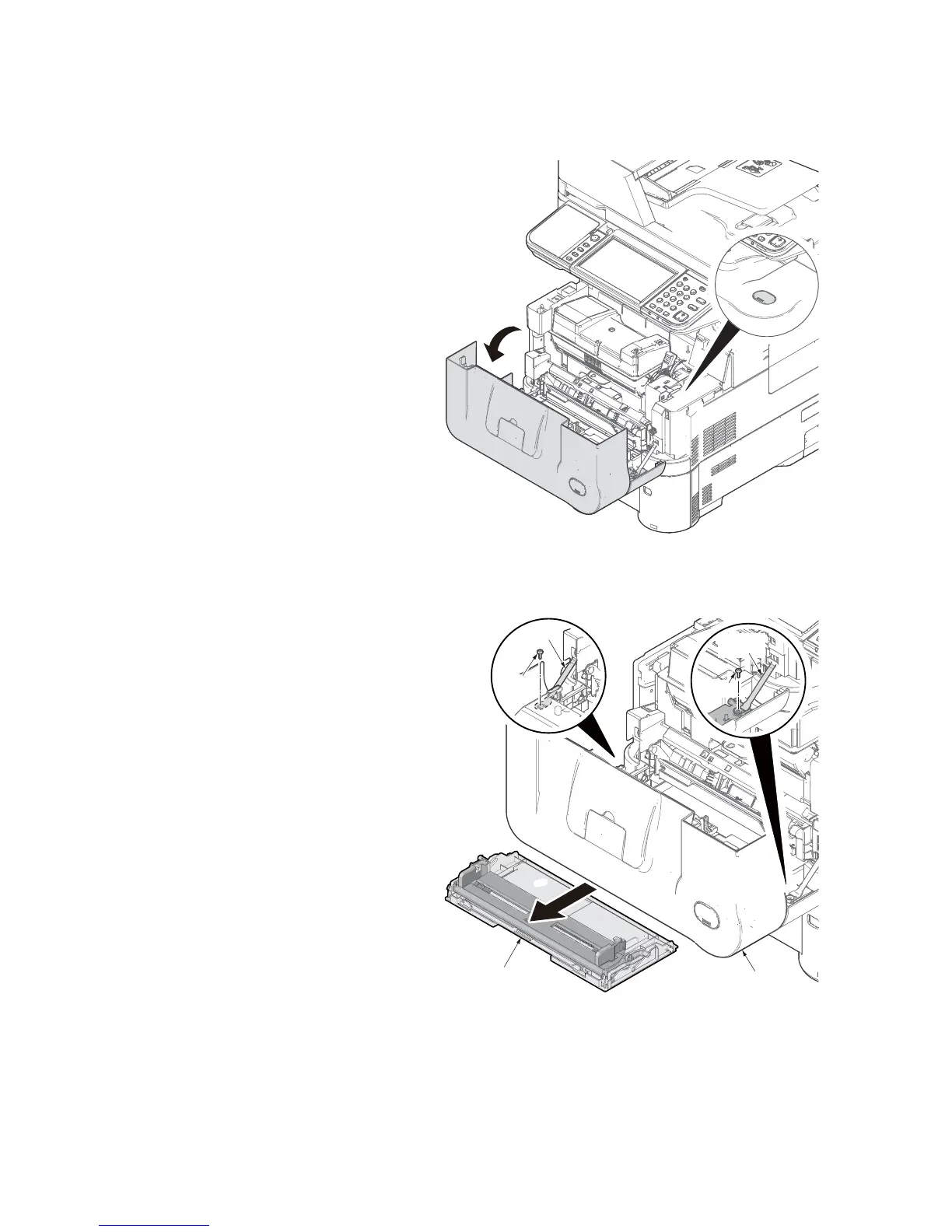

1. Push the button and open the front
cover.
Figure 1-5-12
2. Remove the MP tray from the printer
while bending it.
3. Remove two screws and two straps.
Figure 1-5-13
MP tray
Front cover
Screw
Strap
Screw
Strap
