Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-2-11

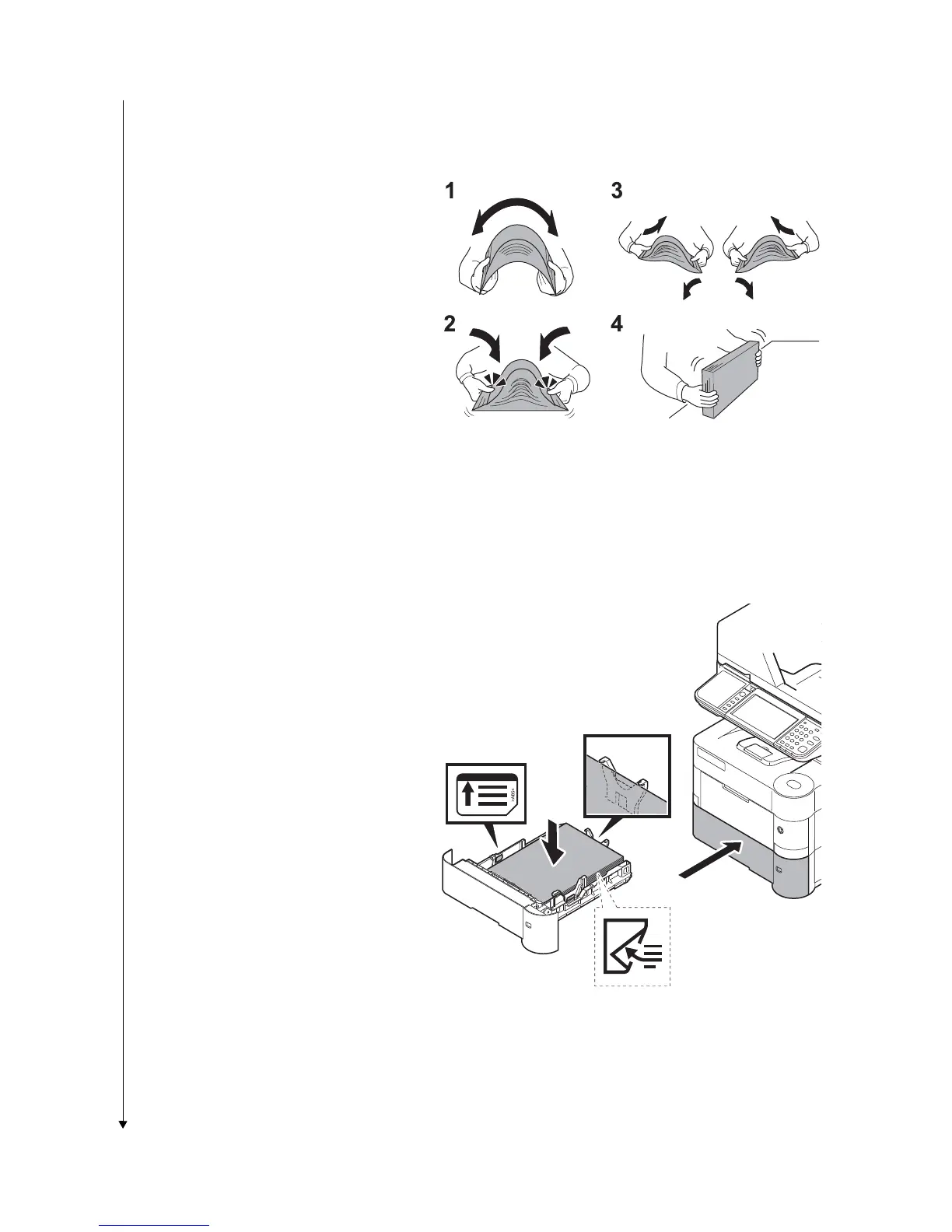

Before loading paper
When you open a new package of paper, fan
the sheets to separate them slightly prior to
loading in the following steps.
(1)Bend the whole set of sheets to swell
them in the middle.
(2)Hold the stack at both ends and stretch it
while keeping the entire stack swelled.
(3)Raise the right and left hands alternately
to create a gap and feed air between the
papers.
(4)Finally, align the papers on a level, flat
table.
*: If the paper is curled or folded, straighten
it before loading. Paper that is curled or
folded may cause a jam.
Figure 1-2-18
6. Fan the media (paper/transparencies),
then tap it on a level surface to avoid
media jams or skewed printing.
7. Slide the paper into the paper cassette.
8. Insert the cassette into the slot in the
main unit. Push it straight in as far as it
will go.
Figure 1-2-19

Kyocera ECOSYS M3040dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Max Paper Size	A4
Scan Resolution	600 x 600 dpi
Output Capacity	250 sheets
Copy Resolution	600 x 600 dpi
Maximum Copy Size	A4
Operating Systems	Windows, Mac OS, Linux
Functions	Print, Copy, Scan
Print Speed	40 ppm
Scan Speed	40 ipm
Connectivity	USB 2.0, Ethernet
Warm-up Time	15 seconds
Memory	512 MB
Paper Size	A4, A5, A6, B5, Letter, Legal
Paper Weight	60-220 g/m²
Copy Speed	40 cpm
Scan Type	Color and Monochrome
