Kyocera ECOSYS M3040dn

2NM/2NX/2NY/2NZ/2P0/2P6
1-1-11

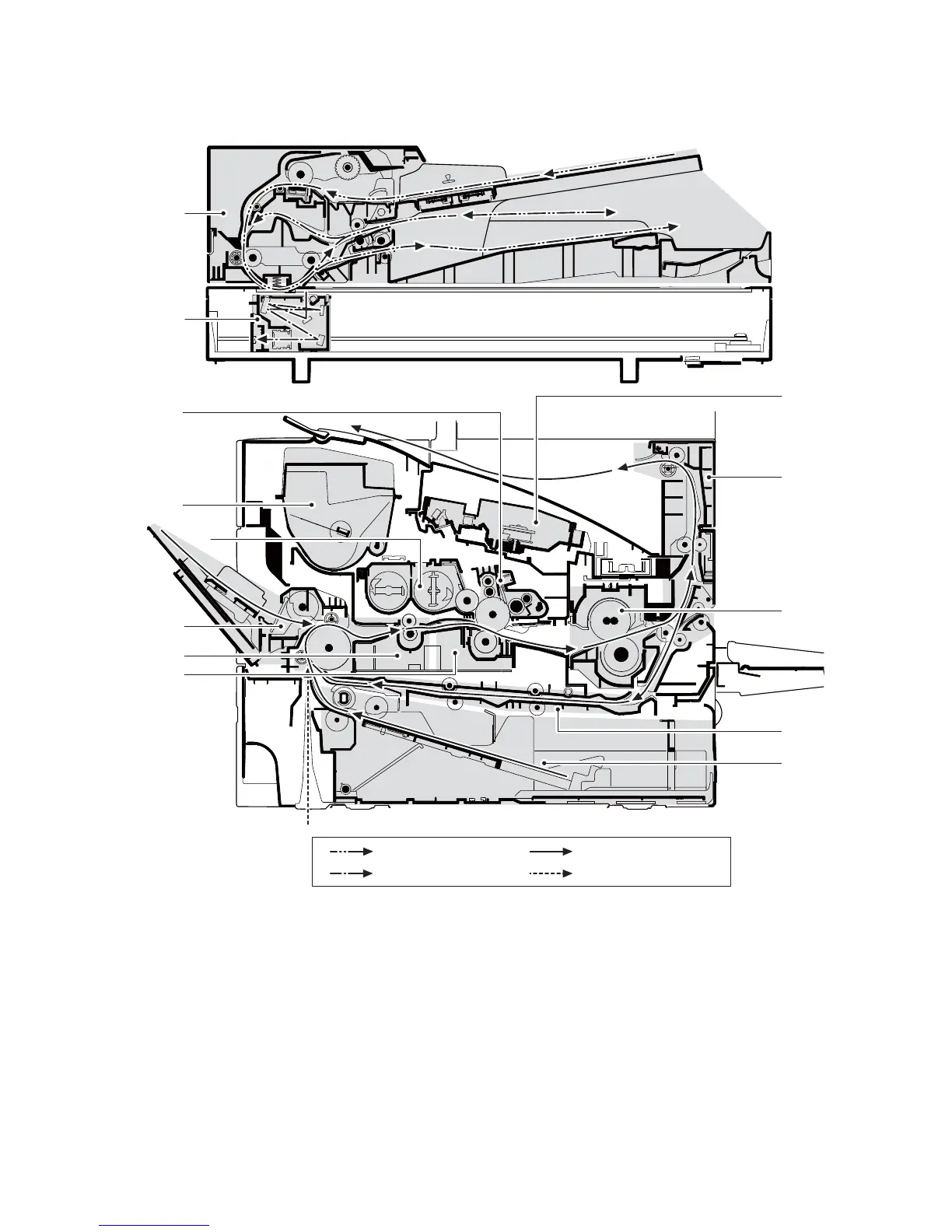

1-1-3 Machine cross section
Figure 1-1-7
[ DP ]
[ Main UNIT ]
Paper path
Optical path /
Original path /
Paper path (Option)
13
4
11
10
12
1
2
3
7
9
6
8
5
1. Cassette paper feed section
2. MP tray paper feed section
3. Conveying section
4. Image scanner section
5. Laser scanner section
6. Developer section
7. Toner container section
8. Drum section
9. Transfer/Separation section
10. Fuser and eject/feed shift section
11. Eject section
12. Duplex conveying section
13. DP section
