2NM/2NX/2NY/2NZ/2P0/2P6

1-5-98

(4) Detaching and refitting the FAX control PWB (FAX model only)

Procedure

1. Remove the upper interface cover.

2. Release two hooks using a flat screw

driver and remove the right stay cover.

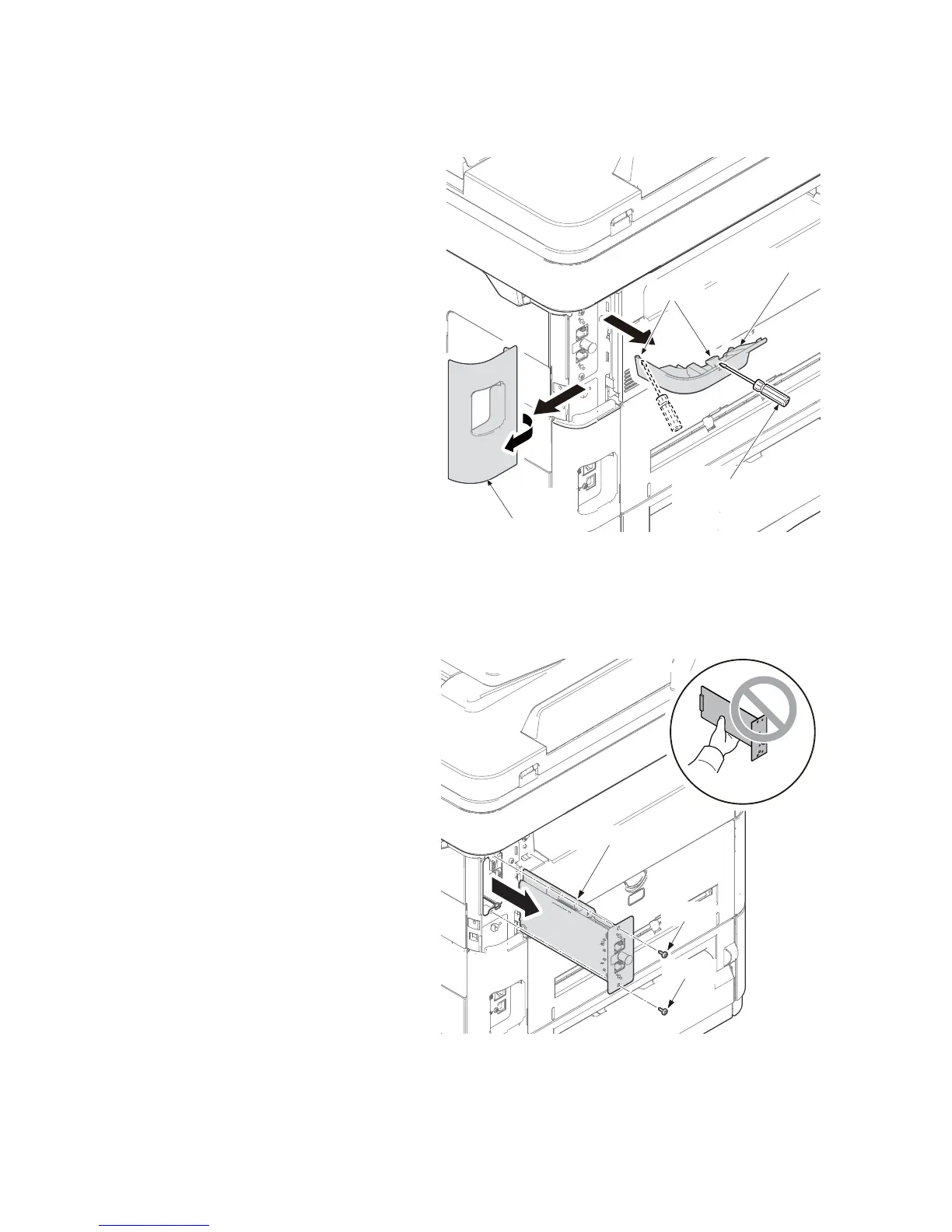

Figure 1-5-168

3. Remove two screws and then pull the

FAX control PWB out.

4. Check or replace the FAX control PWB

and refit all the removed parts.

Figure 1-5-169

Upper

interface cover

Flat screw driver

Right stay cover

Hooks

Screw

Fax control PWB
