Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-3-33
U071 DP Timing
Description
Adjusts the DP original scanning timing.
Purpose
Make the adjustment if there is a regular error between the leading or trailing edges of the original
and the copy image when the DP is used.
Method
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Display Description
Setting
range
Initial
setting
Change in
value per step
Front Head Leading edge registration. (first side) -32 to 32 - 0.85
Front Tail Trailing edge registration. (first side) -32 to 32 - 0.85
Back Head Trailing edge registration. (first side) -32 to 32 - 0.85
Back Tail Trailing edge registration. (second side) -32 to 32 - 0.85
Adjustment: Leading edge registration
1. Change the setting value using the cursor right/left keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the value moves the image forward and decreasing the value moves the image
backward.

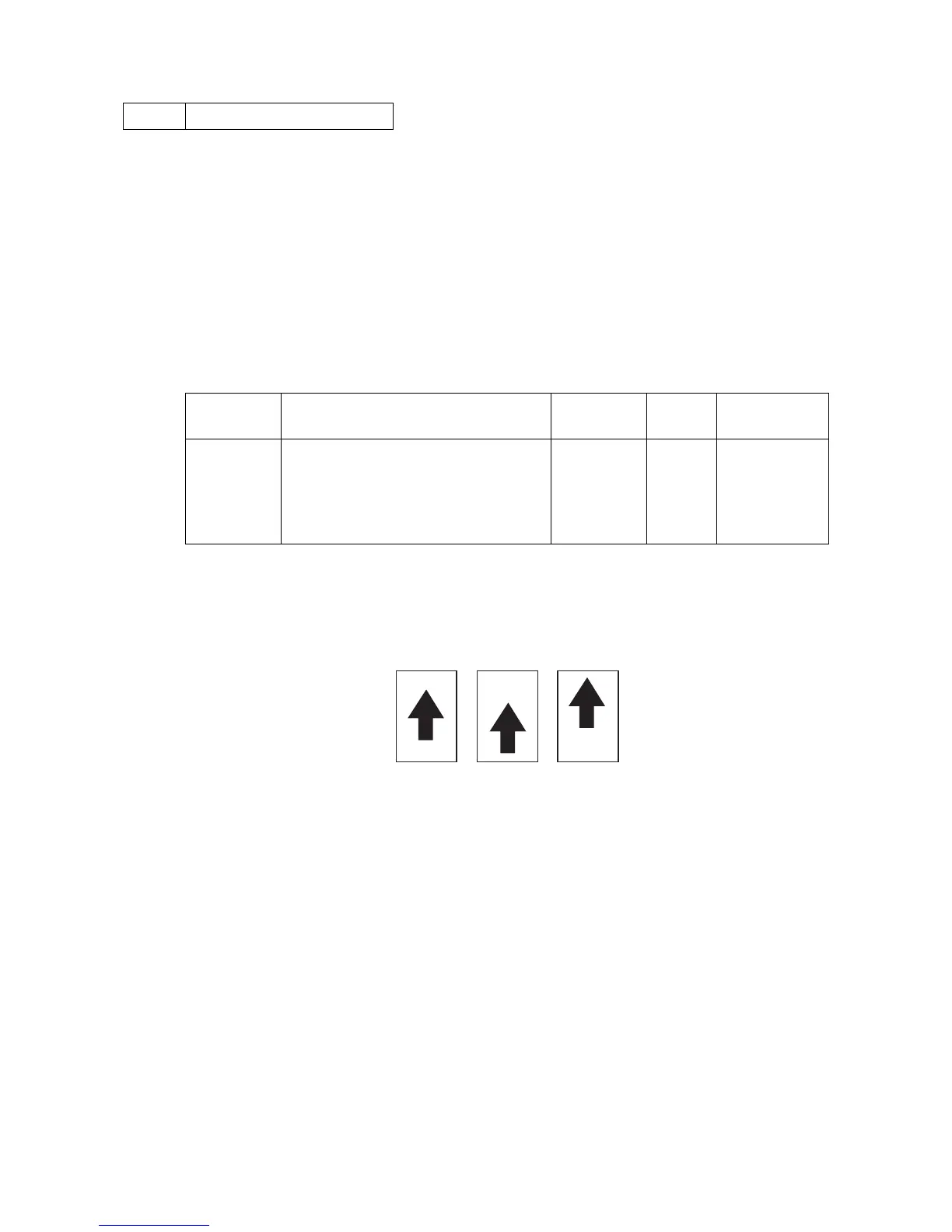

Figure 1-3-10
2. Press the start key. The value is set.
Caution
If the first side is adjusted, check the second side and if adjustment is required, carry out the
adjustment.
If the above adjustment does not optimize the leading edge registration, proceed with the following
maintenance modes.
U034 -------- U071
(P.1-3-24)
Original Copy
example 1
Copy
example 2
