Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-62
1-5-9 Duplex conveying section
(1) Duplex conveying unit
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.

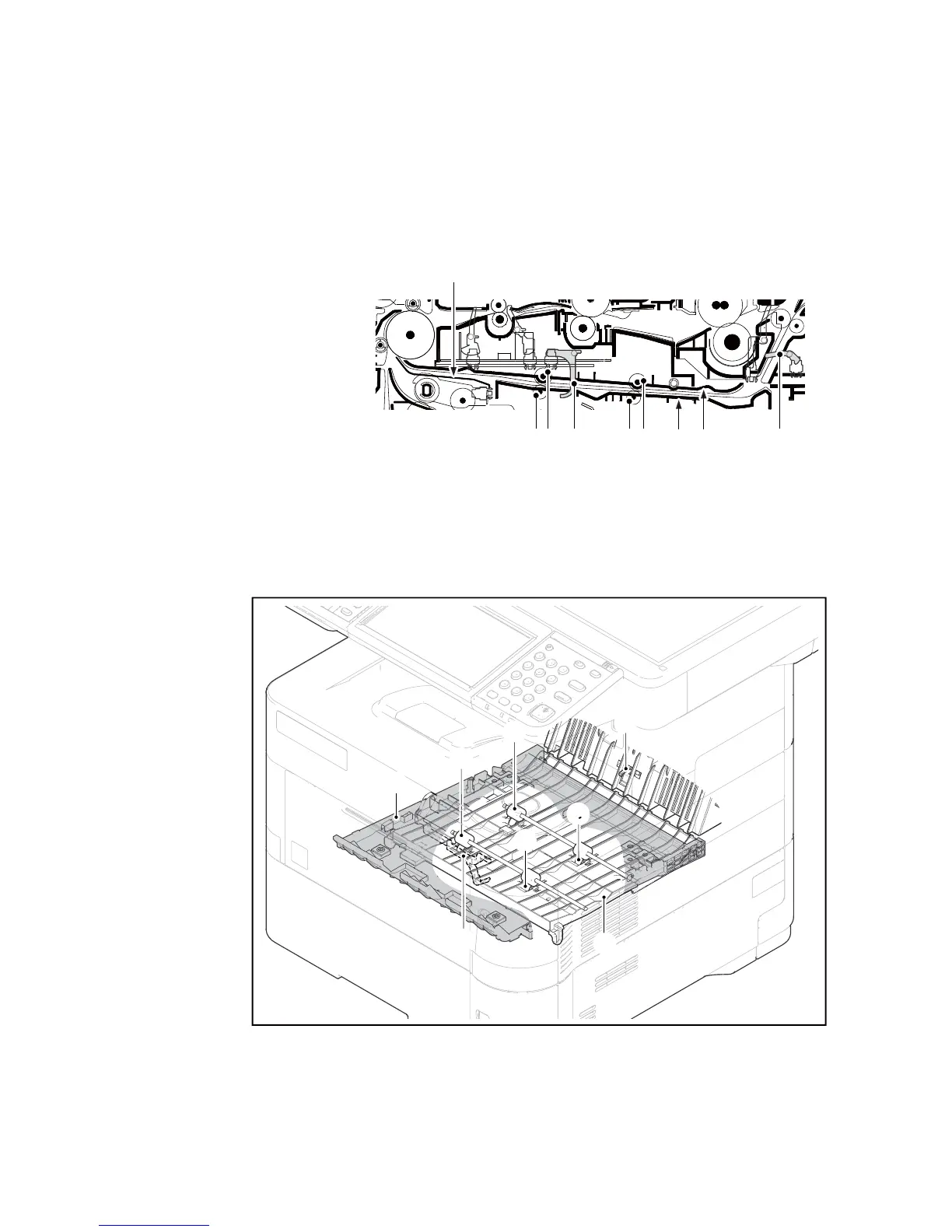

Figure 1-5-104
Figure 1-5-105
31212 4
6 5
7
[Component formation]
1. DU conveying roller
2. DU conveying pulley
3. Actuator (Duplex sensor 1) *2
4. Actuator (Duplex sensor 2)
5. DU base
6. DU lower guide
7. Feed upper guide
1
1
2
2
6
5
4
3

Kyocera ECOSYS M3040dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Max Paper Size	A4
Scan Resolution	600 x 600 dpi
Output Capacity	250 sheets
Copy Resolution	600 x 600 dpi
Maximum Copy Size	A4
Operating Systems	Windows, Mac OS, Linux
Functions	Print, Copy, Scan
Print Speed	40 ppm
Scan Speed	40 ipm
Connectivity	USB 2.0, Ethernet
Warm-up Time	15 seconds
Memory	512 MB
Paper Size	A4, A5, A6, B5, Letter, Legal
Paper Weight	60-220 g/m²
Copy Speed	40 cpm
Scan Type	Color and Monochrome
