Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-5
(1-1) Detaching and refitting the primary paper feed unit and the pickup roller
Procedure
1. Pull out the cassette.
2. Release the lock by pulling the lever.
3. Remove the paper feed roller assembly
by pulling and raising and then sliding
forward.
4. Check or replace the paper feed roller
and refit all the removed parts.

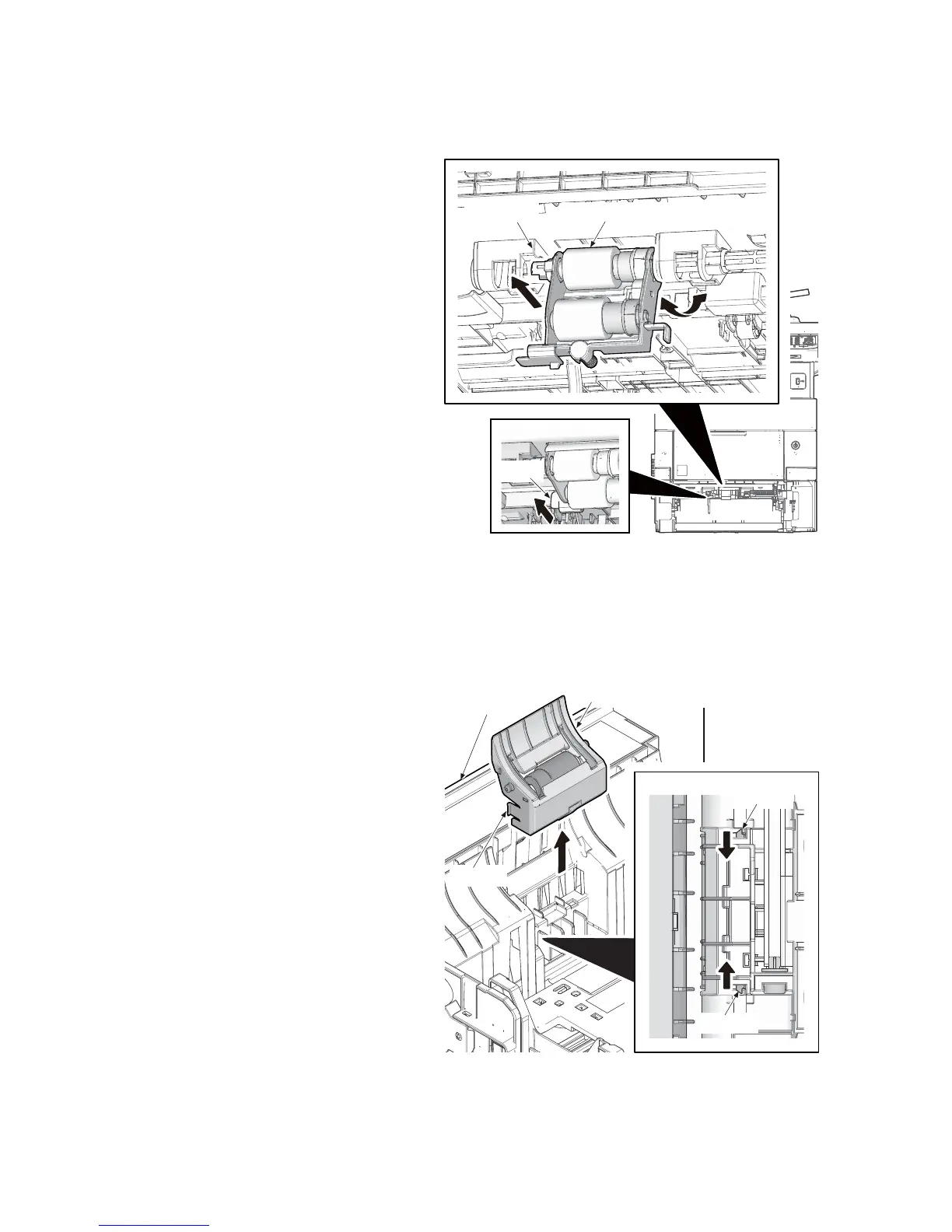

Figure 1-5-6
(1-2) Detaching and refitting the retard roller
Procedure
1. Release two hooks in backside of cas-
sette and then remove the retard roller
assembly.
Figure 1-5-7
Paper feed roller assembly
Lever
Holder
Retard roller assembly
Hook
Hook
Backside in cassette
Cassette
Hook
