2NM/2NX/2NY/2NZ/2P0/2P6
1-4-84

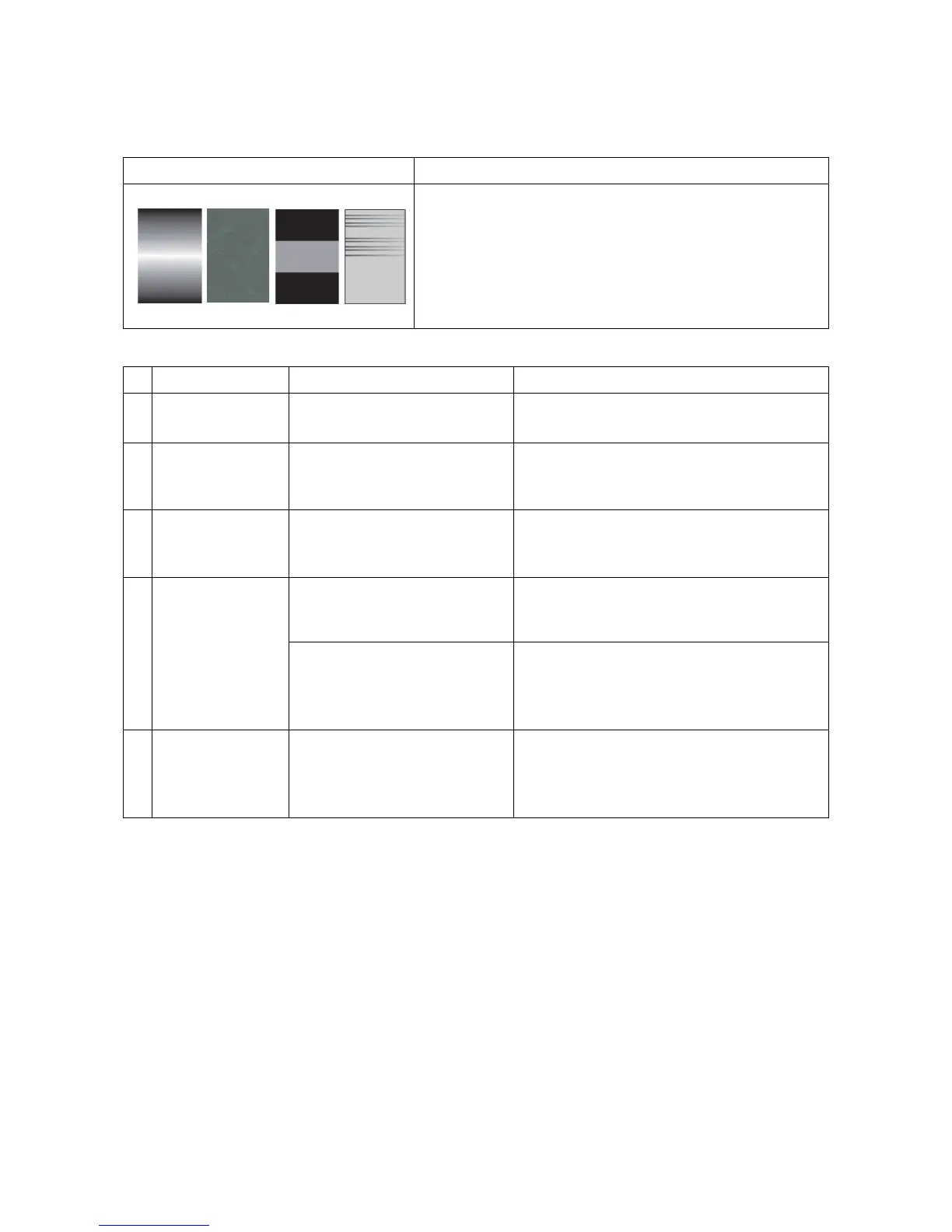

(9) Uneven density horizontally.
Print example Cause of trouble
1. Defective laser scanner unit.
2. Improper charging roller rotation
3. Improper contact on the developer unit terminals
Defective part Check description Corrective Action
1
LSU Check the emission of laser is
even.
Replace the LSU. (see page 1-5-25)
2
Charging roller Check if the charing roller is
improperly mounted.
1. Fix the charging roller properly.
2. Replace the charging roller.
(see page 1-5-36)
3
Developer unit Check If the connecting termi-
nals of the developer bias is con-
taminated by toner.
1. If the connecting terminals is dirty.
2. Replace the developer unit.
(see page 1-5-30)
4
Transfer roller unit.
1. Check if the transfer roller is
contaminated on its surface
or damaged.
1. Replace the transfer roller unit.
2. Check if the connecting ter-
minals of high voltage are
dirty or deformed.
1. If the connector or terminals are dirty,
clean.If the connecting terminals are
deformed, correct for a proper conduction.
2. Replace the high voltage PWB.
5
Fuser unit Check that the roller, its driving
unit, or the fusing pressure
release mechanism is deformed,
abraded, or damaged.
If the roller, its driving unit, or the fusing pres-
sure release mechanism is deformed,
abraded, or damaged, replace the fuser unit.
