Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-72
1-5-10 Document processer
(1) Original feed section
The original feed section consists of the parts shown in figure. An original placed on the original tray is con-
veyed to the original conveying section. Original is fed by the rotation of the DP forwarding pulley and DP
paper feed roller.

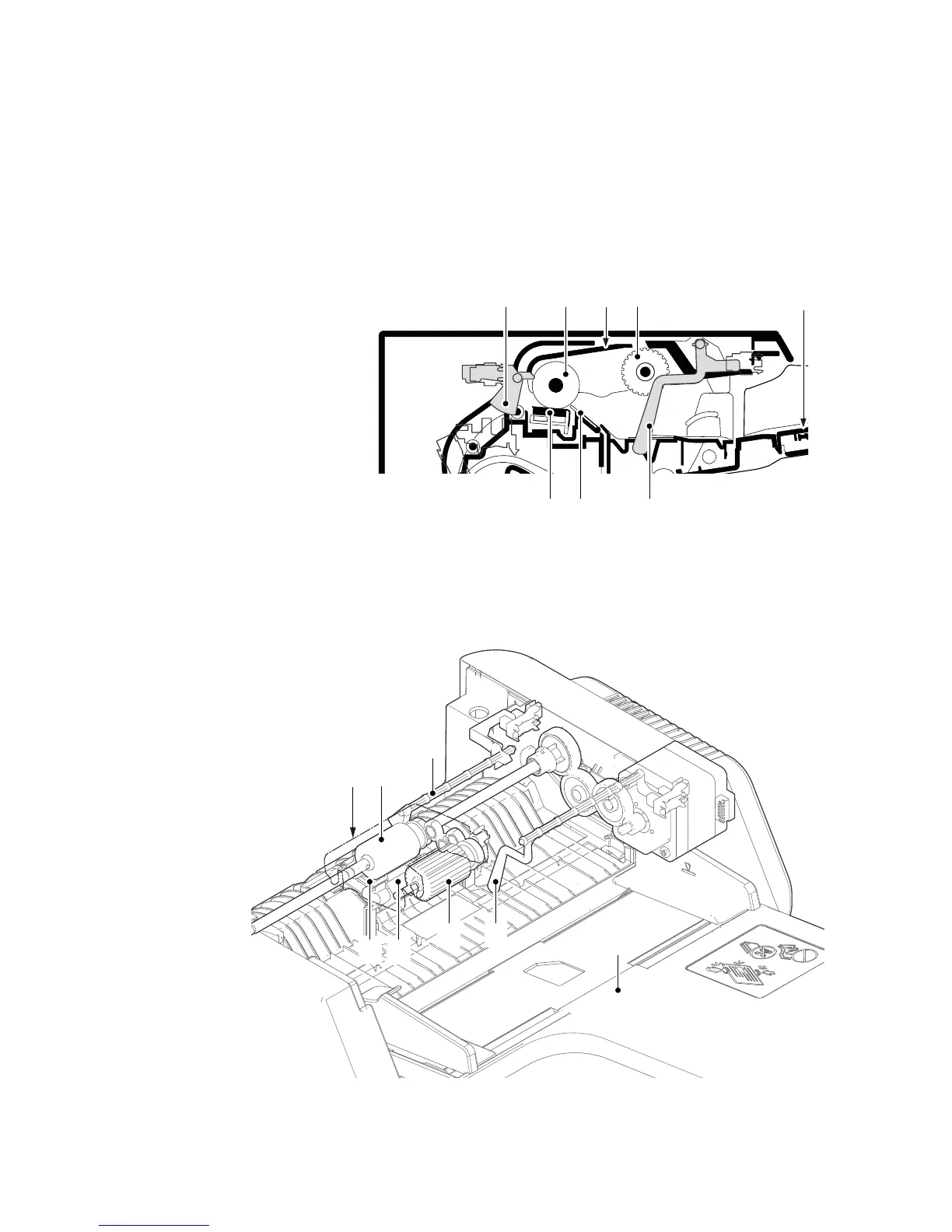

Figure 1-5-122
Figure 1-5-123
8
3
4 5 6
12
7
[Component formation]
1. DP pickup pulley
2. DP paper feed roller
3. DP feed holder
4. DP separation pad
5. Pre separation pad
6. Acutuator
(DP original sensor)
7. Original tray
8. Acutuator
(DP original timing sensor)
8
4 5
2
1 6
3
7

Kyocera ECOSYS M3040dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Max Paper Size	A4
Scan Resolution	600 x 600 dpi
Output Capacity	250 sheets
Copy Resolution	600 x 600 dpi
Maximum Copy Size	A4
Operating Systems	Windows, Mac OS, Linux
Functions	Print, Copy, Scan
Print Speed	40 ppm
Scan Speed	40 ipm
Connectivity	USB 2.0, Ethernet
Warm-up Time	15 seconds
Memory	512 MB
Paper Size	A4, A5, A6, B5, Letter, Legal
Paper Weight	60-220 g/m²
Copy Speed	40 cpm
Scan Type	Color and Monochrome
