2NM/2NX/2NY/2NZ/2P0/2P6-1

1-5-71

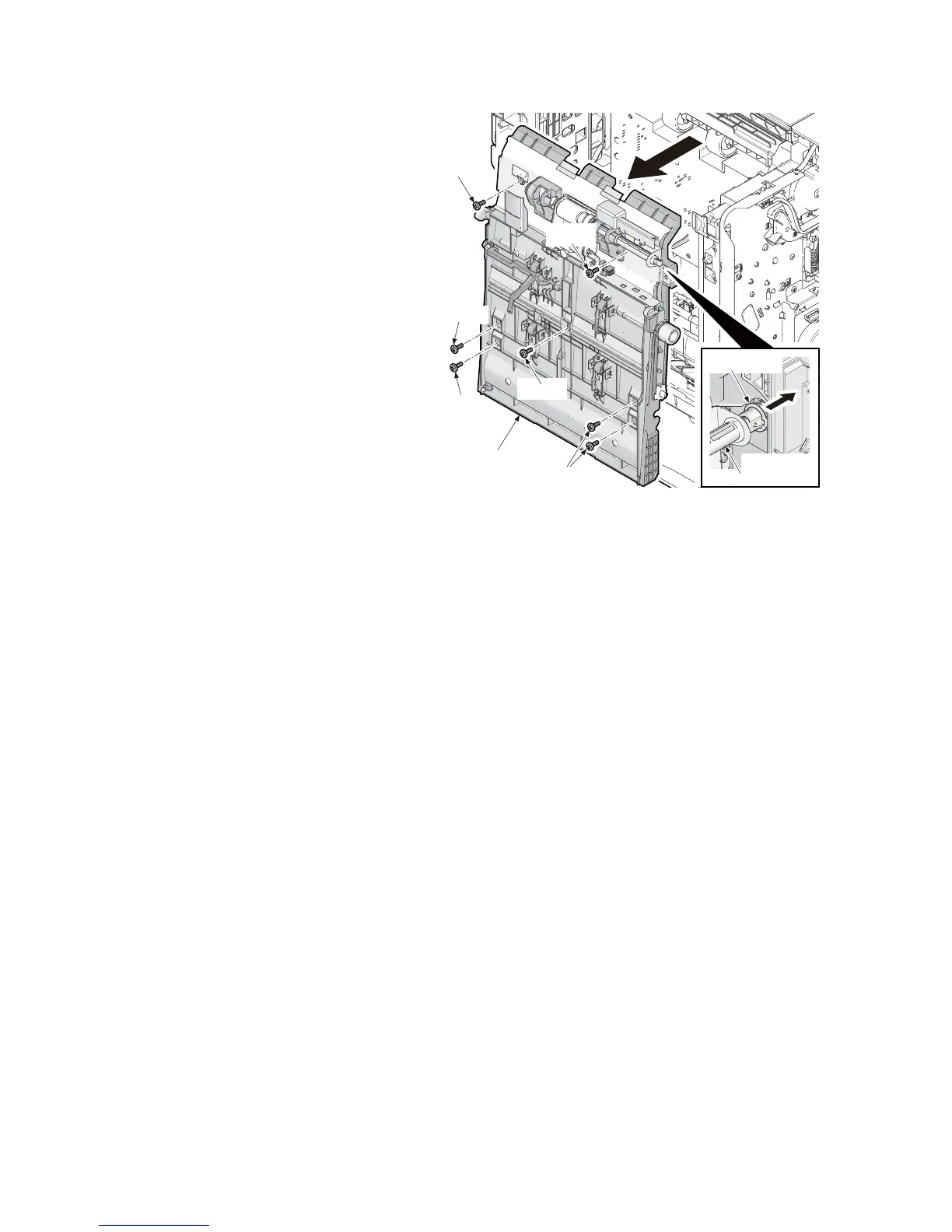

34. Remove seven screws.

35. Extract the feed roller axis by pushing

the joint part.

36. Remove the duplex conveying unit to

the front.

37. Check or replace the duplex conveying

unit and refit all the removed parts.

Figure 1-5-121

Screws

Screw

Duplex

conveying unit

Screw

Paper feed

roller axis

Joint part
