2NM/2NX/2NY/2NZ/2P0/2P6
1-2-12
1. Slide the right operation lid and the left
operation lid.
2. Remove the their lids.

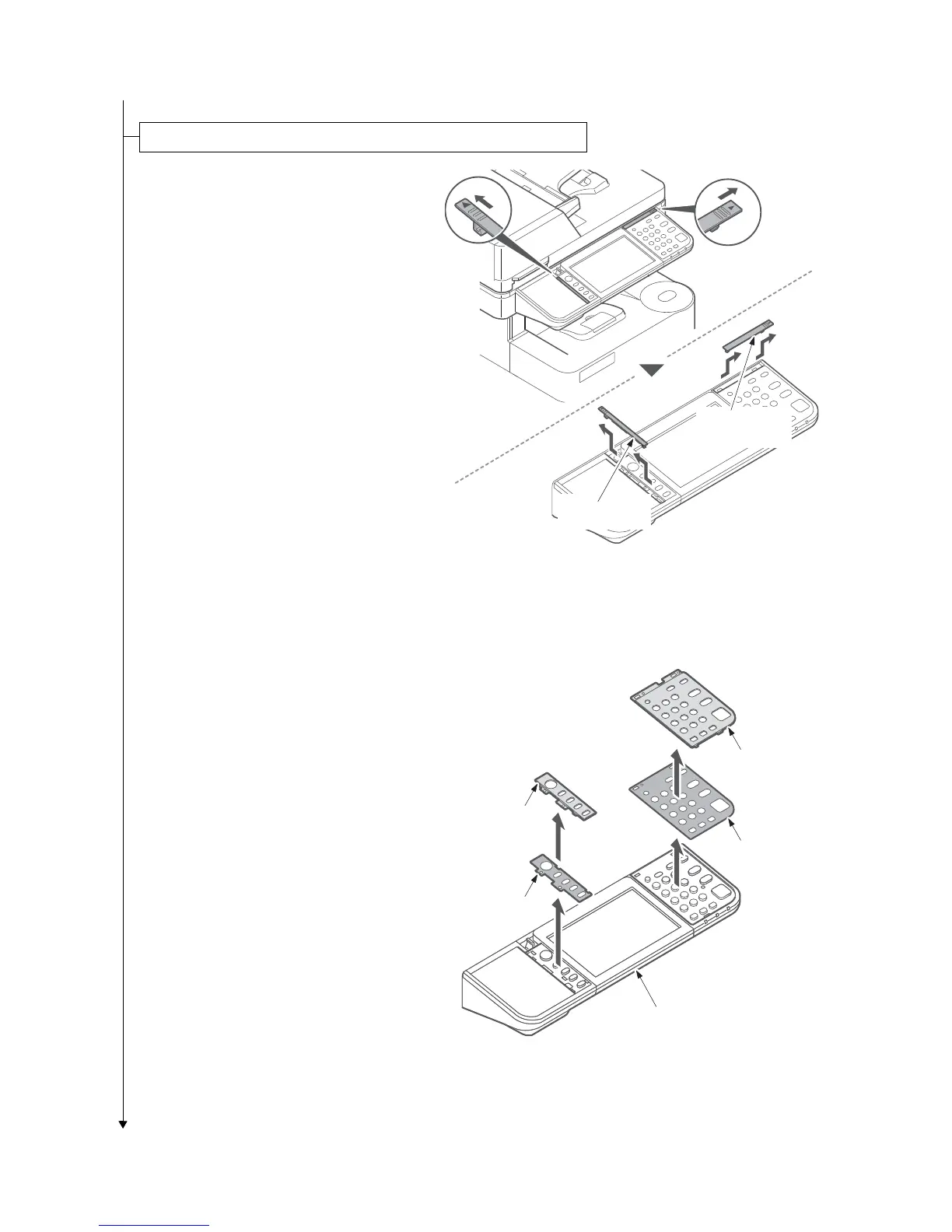

Figure 1-2-20
3. Remove the operation panel cover.
4. Replace it to the operation panel sheet
of the corresponding language.
5. Refit all the removed parts.
Figure 1-2-21
Replace the operation panel sheet (except 240V AC model)
Right
operation lid
Left
operation lid
Left operation
panel cover
Left operation
panel sheet
Left operation
panel cover
Left operation
panel sheet
Operation panel assembly
To Next Page
