Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-93
(14)Detaching and refitting the rear cover
Pocedure
1. Open the rear cover.
(50/60 ppm model only)
(1)Remove the screw and then the ground-
ing wire.
(2)Open the connector cover and then
remove three connectors.

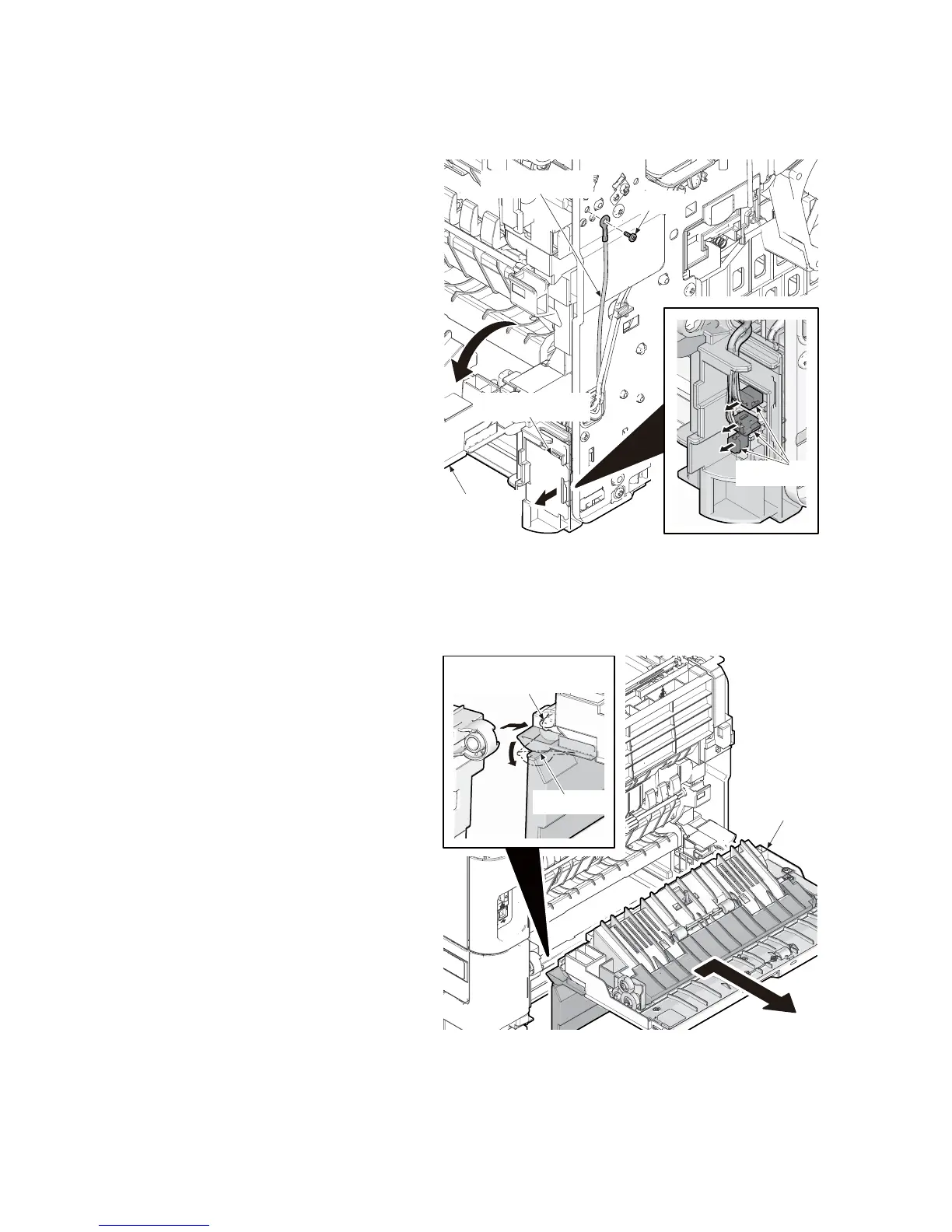

Figure 1-5-159
2. Remove the fulcrum axis by sliding the
rear cover assembly while avoiding rear
cover and then remove the rear cover
assembly.
Figure 1-5-160
Connector cover
Connectors
Rear cover
Screw
Grounding wire
Rear cover
assembly
Flucrum axis
(Rear cover assembly)
Rear cover
