2NM/2NX/2NY/2NZ/2P0/2P6
1-5-88
(8) Detaching and refitting the top tray cover
Procedure
1. Remove two screws.
(50/60 ppm model only)
(1)Slide the right inner spacer and the left
inner spacer forward and then remove it
upward.

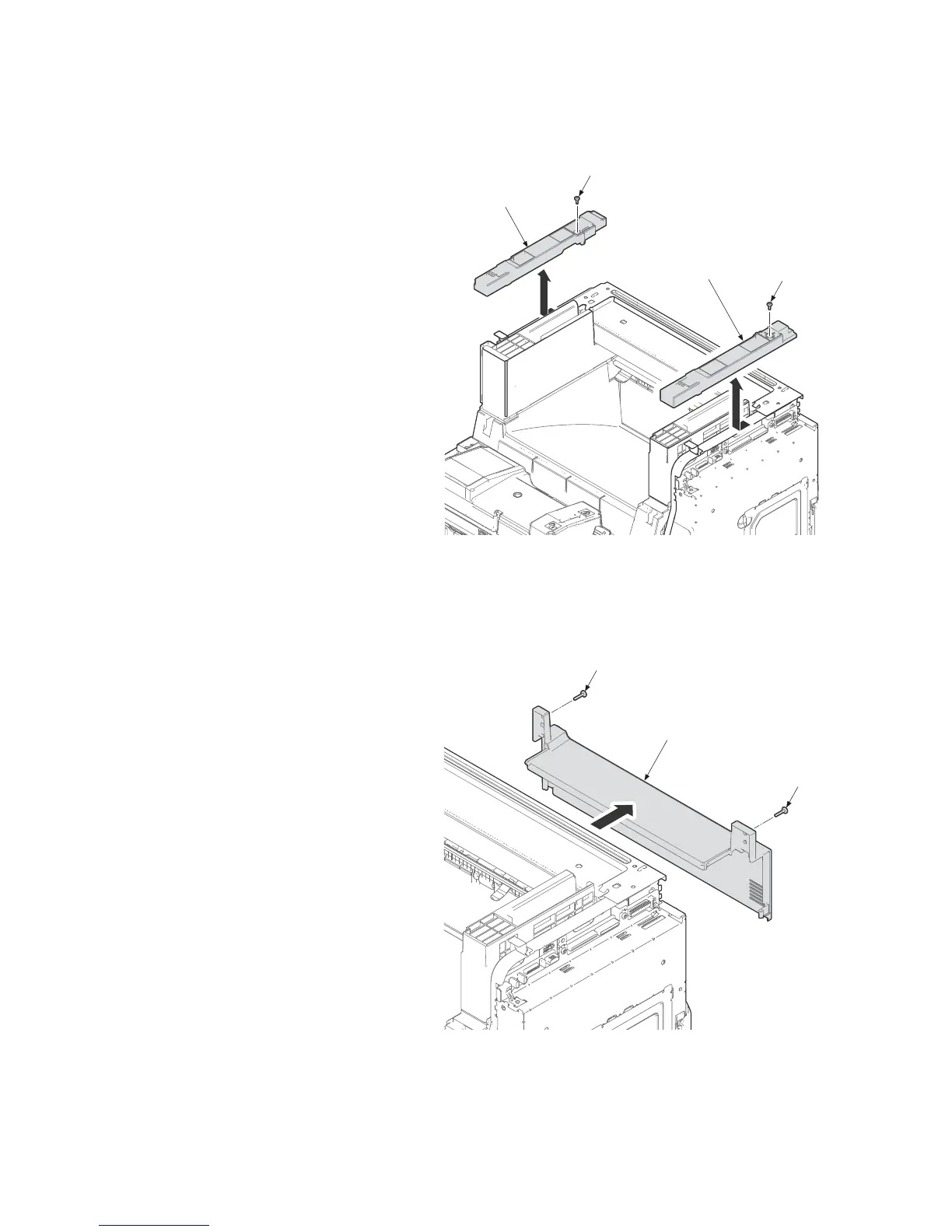

Figure 1-5-149
2. Remove two screws.
3. Remove the eject unit cover.
Figure 1-5-150
Screw
Screw
Right inner
spacer
Left inner
spacer
Screw
Screw
Eject unit cover
