Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-4-90

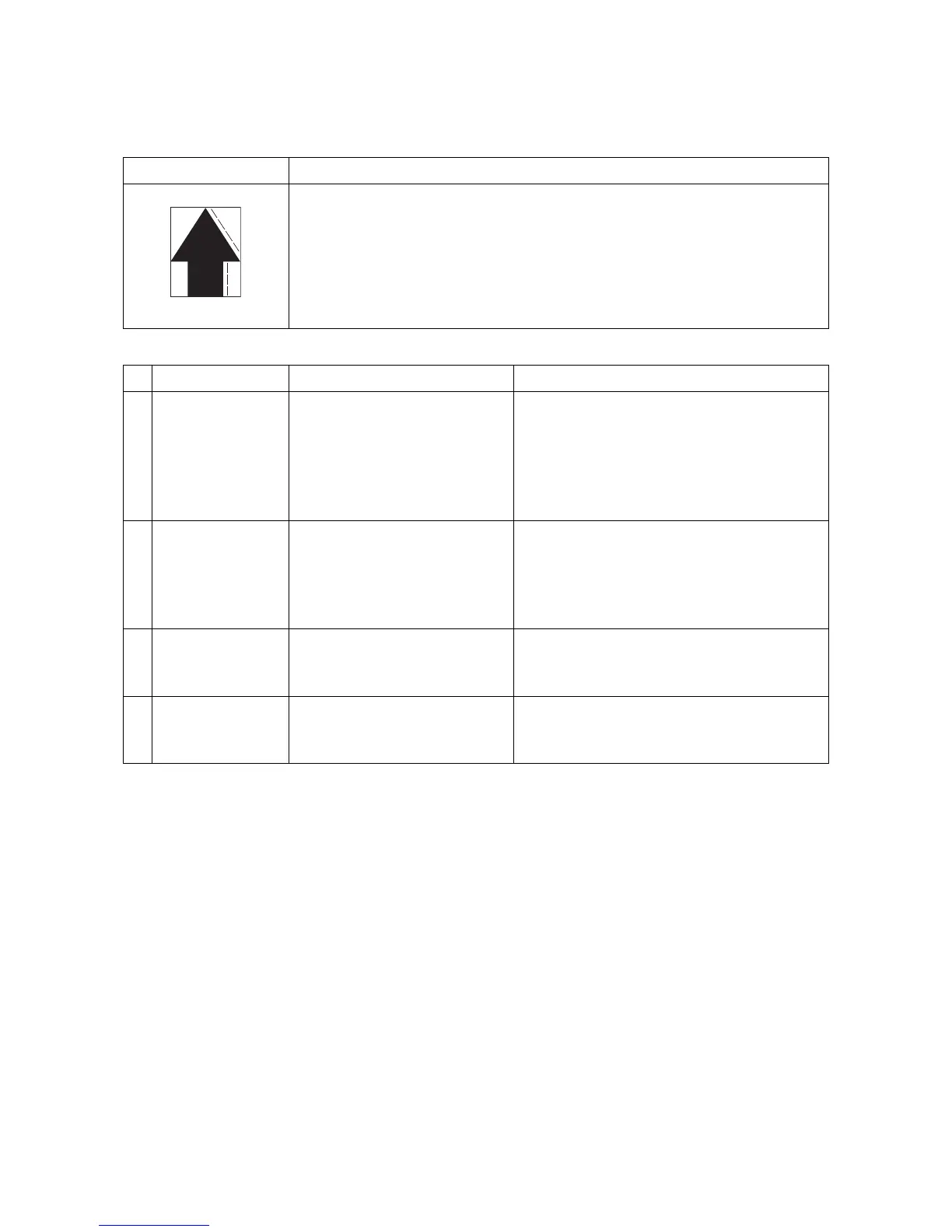

(16) mage is blurred (Shifted transferring).
Print example Cause of trouble
1. The paper used does not conform to the requirement.
2. Imbalanced fuser unit pressures.
Defective part Check description Corrective Action
1
Paper 1. Check that the type of the
paper used falls within the
range of specifications.
2. Check the settings of the
type and weight of the paper.
1. If the type of the paper being used falls
outside the requirements, replace and use
a suitable type of paper.
2. If the settings made for the paper being
used is inadequate, configure the settings
according to the paper being used.
2
Fuser unit 1. Check the fuser pressure
balance.
2. Check if the fuser paper-
inserting guide is deformed.
1. If the pressures at the front and rear are
unbalanced, replace the fuser unit.
(see page 1-5-44)
2. If the fuser unit is deformed, replace.
(see page 1-5-44)
3
Paper conveying
motor
Check to see if the driving mech-
anism for paper conveying is
operative without a hinderance.
If the drive does not operate normally, apply
grease.
4
Paper conveying
guide
The paper conveying guide is
deformed.
If the paper conveying guide is deformed,
replace the paper conveying guide.

Kyocera ECOSYS M3040dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Max Paper Size	A4
Scan Resolution	600 x 600 dpi
Output Capacity	250 sheets
Copy Resolution	600 x 600 dpi
Maximum Copy Size	A4
Operating Systems	Windows, Mac OS, Linux
Functions	Print, Copy, Scan
Print Speed	40 ppm
Scan Speed	40 ipm
Connectivity	USB 2.0, Ethernet
Warm-up Time	15 seconds
Memory	512 MB
Paper Size	A4, A5, A6, B5, Letter, Legal
Paper Weight	60-220 g/m²
Copy Speed	40 cpm
Scan Type	Color and Monochrome
