2NM/2NX/2NY/2NZ/2P0/2P6
1-5-80

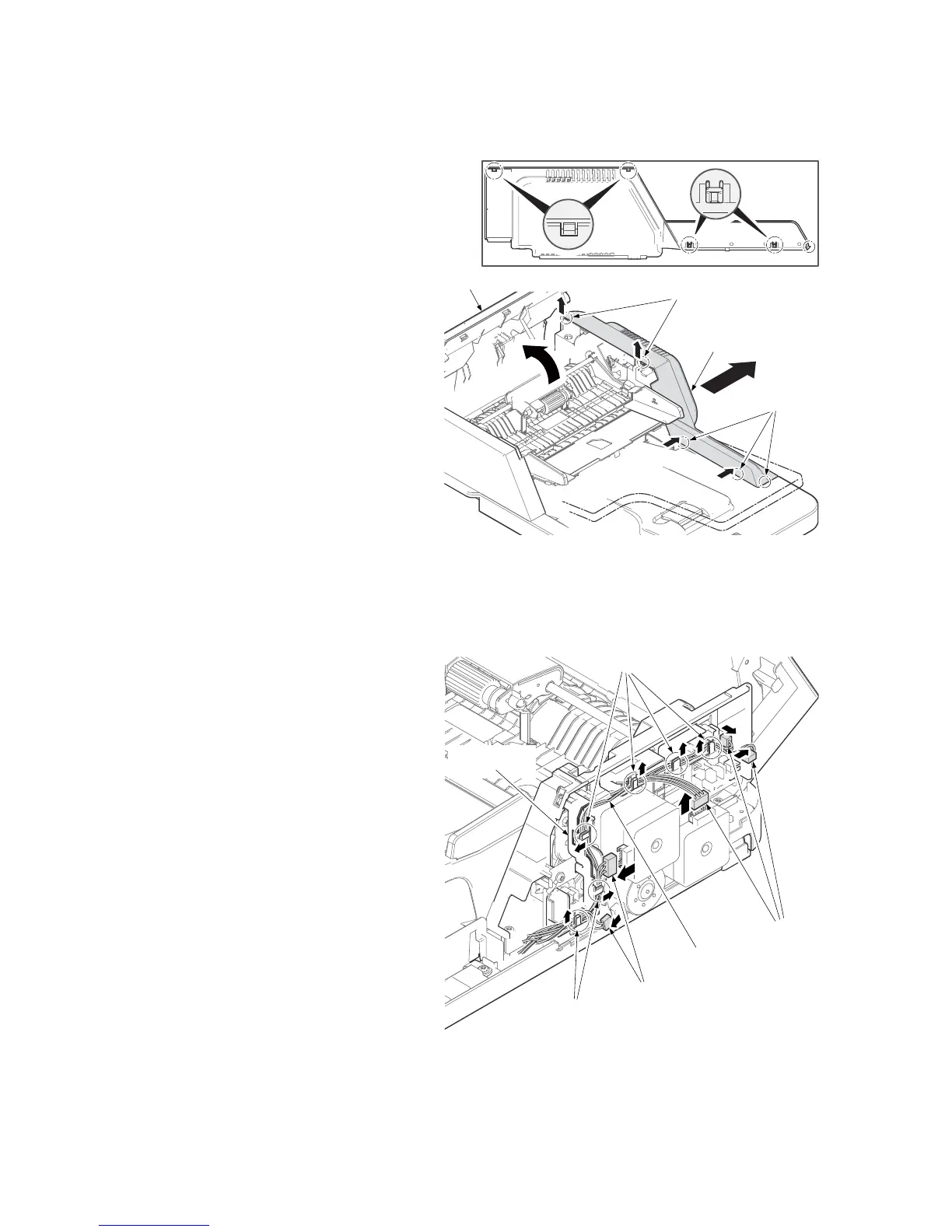

(2-2) Detaching and refitting the DP paper feed motor and the DP conveying motor
Procedure
1. Open DP top cover.
2. Unhook five hooks and remove DP rear
cover.
Figure 1-5-134
3. Remove five connectors from the motor
and the sensor.
4. Release the wires from six hooks of the
wire guide.
Figure 1-5-135
Hooks
Hooks
DP rear cover
DP top cover
Connectors
Hooks
Hooks
Connectors
Wire guide
Wires
