2NM/2NX/2NY/2NZ/2P0/2P6
1-4-1
1-4 Troubleshoo ting
1-4-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the machine immediately stops printing and displays the paper misfeed mes-
sage on the operation panel. To remove paper misfed in the machine, pull out the cassette, open the paper
conveying unit or paper conveying cover.
The positions are displayed on the operation panel when a paper jam has occurred.

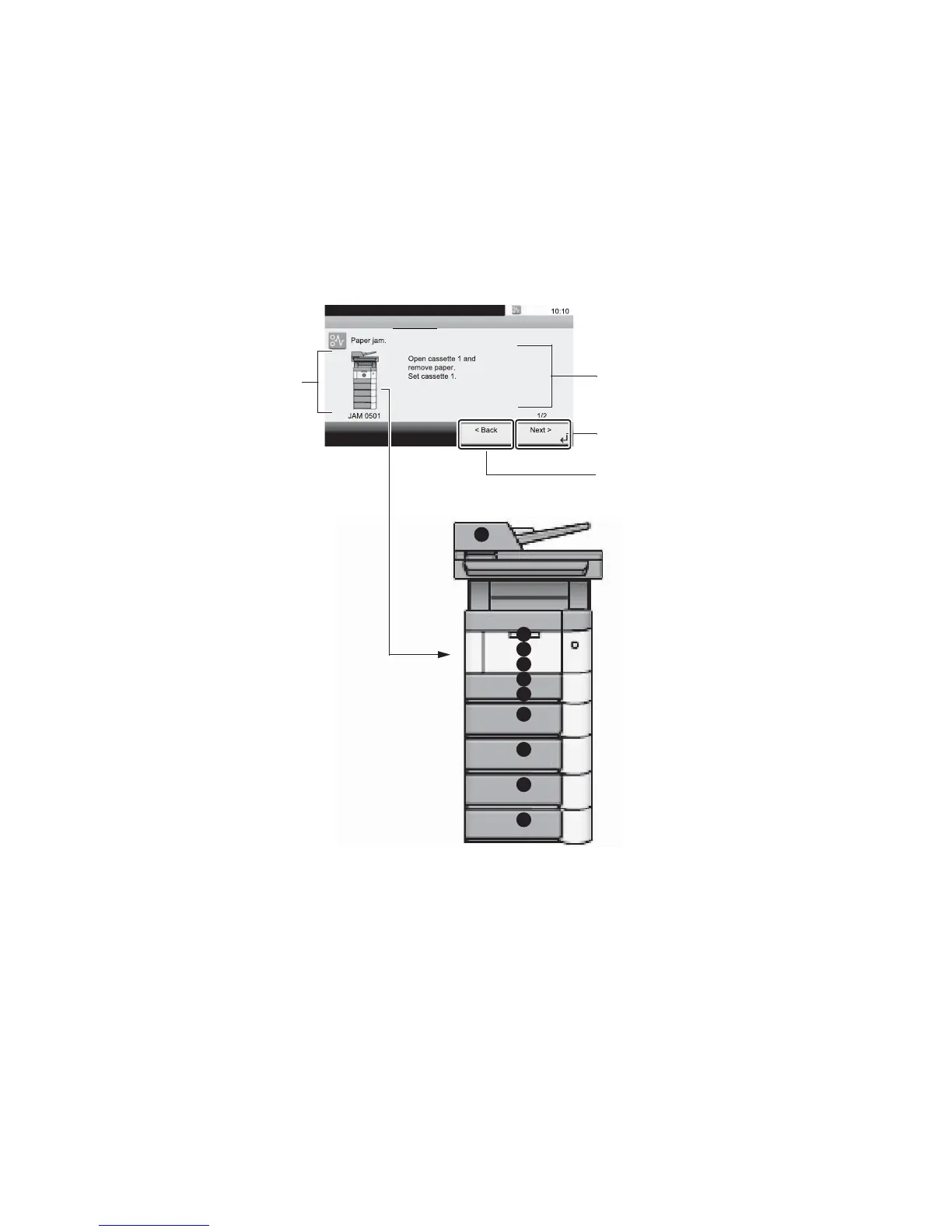

Jam lacation indicators
Figure 1-4-1
A
F
D
E
B
C
B
B
B
B
Shows the location
of a paper jam.
Shows the removal
procedure.
Shows the next step.
Shows the previous step.
A. Misfeed in MP tray
B. Misfeed in the cassette 1 to 5
C. Misfeed in the duplex unit
D. Misfeed inside the machine
E. Misfeed inside the rear cover or the inner tray
F. Misfeed in the document processor
To Next Page
