Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-44
(2-1) Detaching and refitting the fuser unit
Procedure
1. Open the rear cover.
2. Release two hooks of the rear left cover
while pulling forward.
3. Remove the rear left cover by rotating.

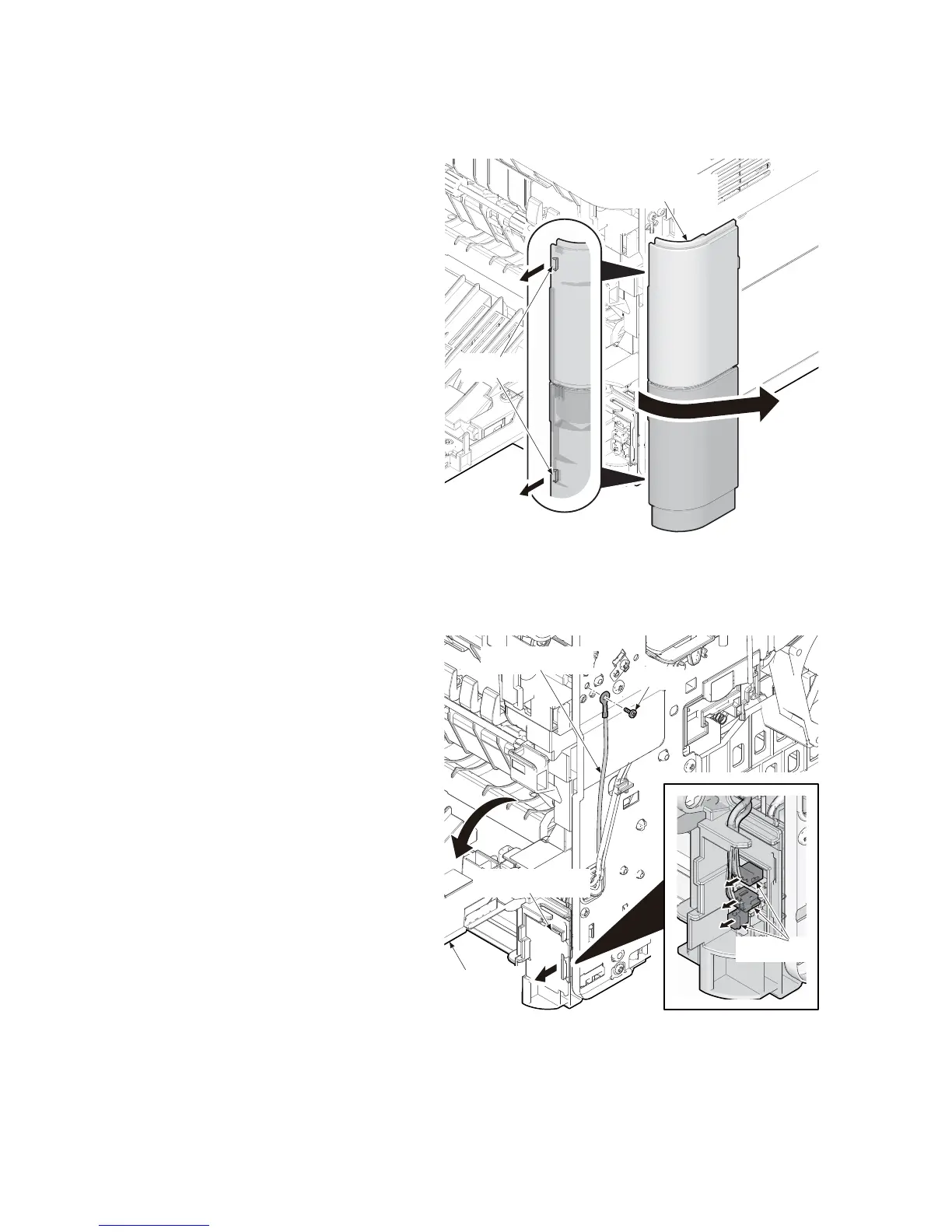

Figure 1-5-72
(50/60 ppm model only)
(1)Remove the screw and then the ground-
ing wire.
(2)Open the connector cover and then
remove three connectors.
Figure 1-5-73
Rear left cover
Hooks
Connector cover
Connectors
Rear cover
Screw
Grounding wire
