2NM/2NX/2NY/2NZ/2P0/2P6

1-5-45

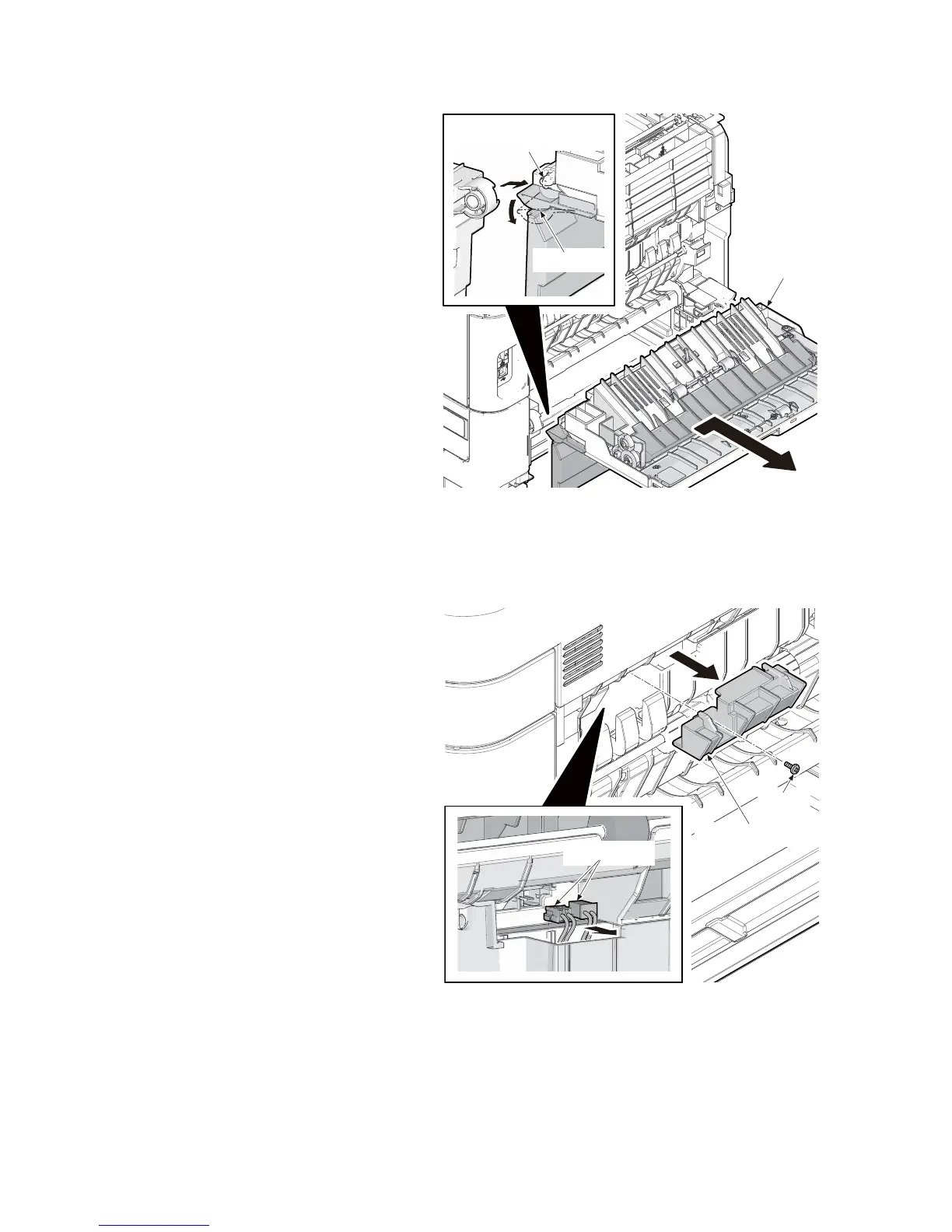

4. Remove the fulcrum axis by sliding the

rear cover assembly while avoiding rear

cover and then remove the rear cover

assembly.

Figure 1-5-74

5. Remove the screw and then remove the

connector cover A.

6. Pull two connectors out.

Figure 1-5-75

Rear cover

assembly

Flucrum axis

(Rear cover assembly)

Rear cover

Connector cover A

Connectors

Screw
