(1-1) Detaching and refitting the developer unit

Procedure

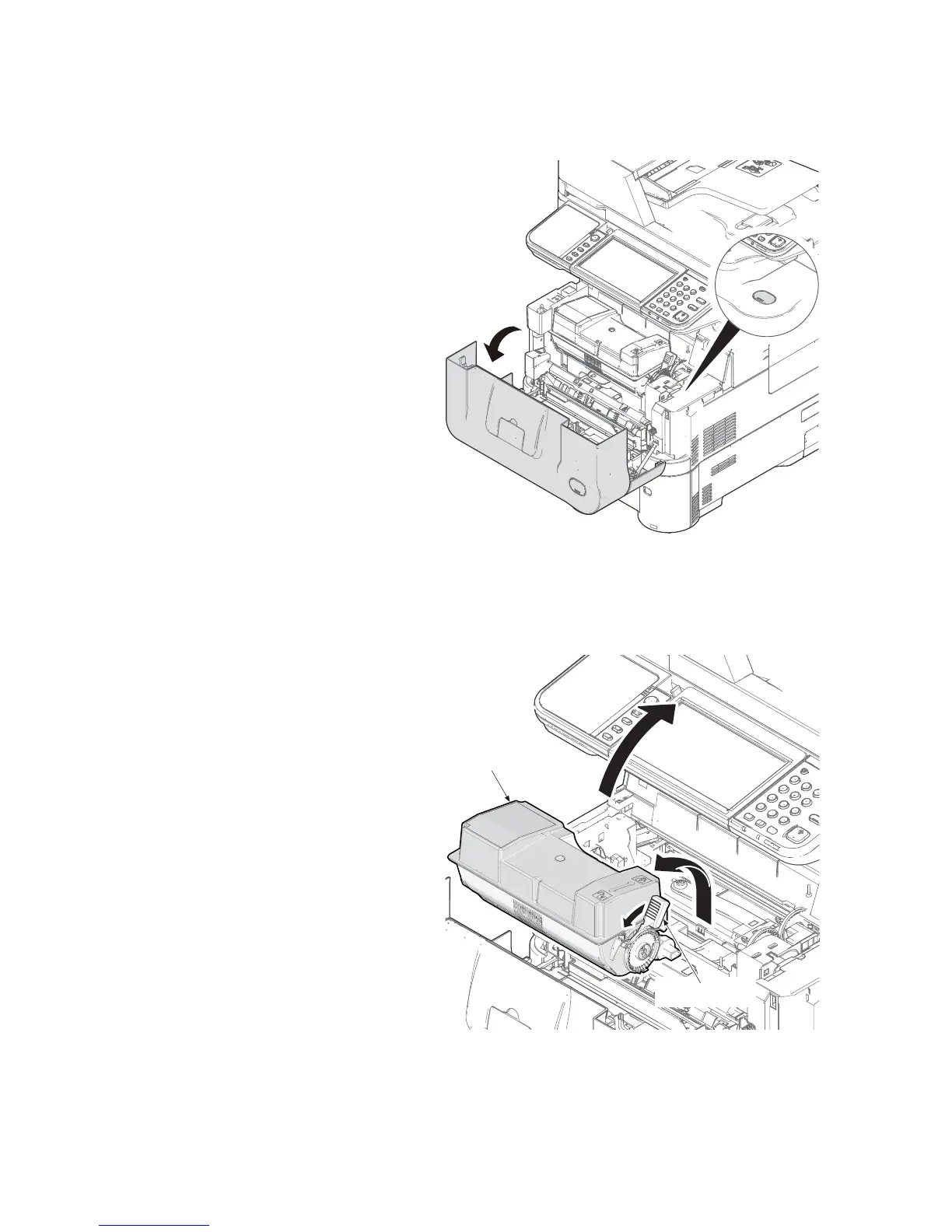

1. Open the front cover.

Figure 1-5-49

2. Release the lock lever by rotating and

then remove the toner container.

Figure 1-5-50

Toner container

Lock lever
