2NM/2NX/2NY/2NZ/2P0/2P6-1

1-5-99

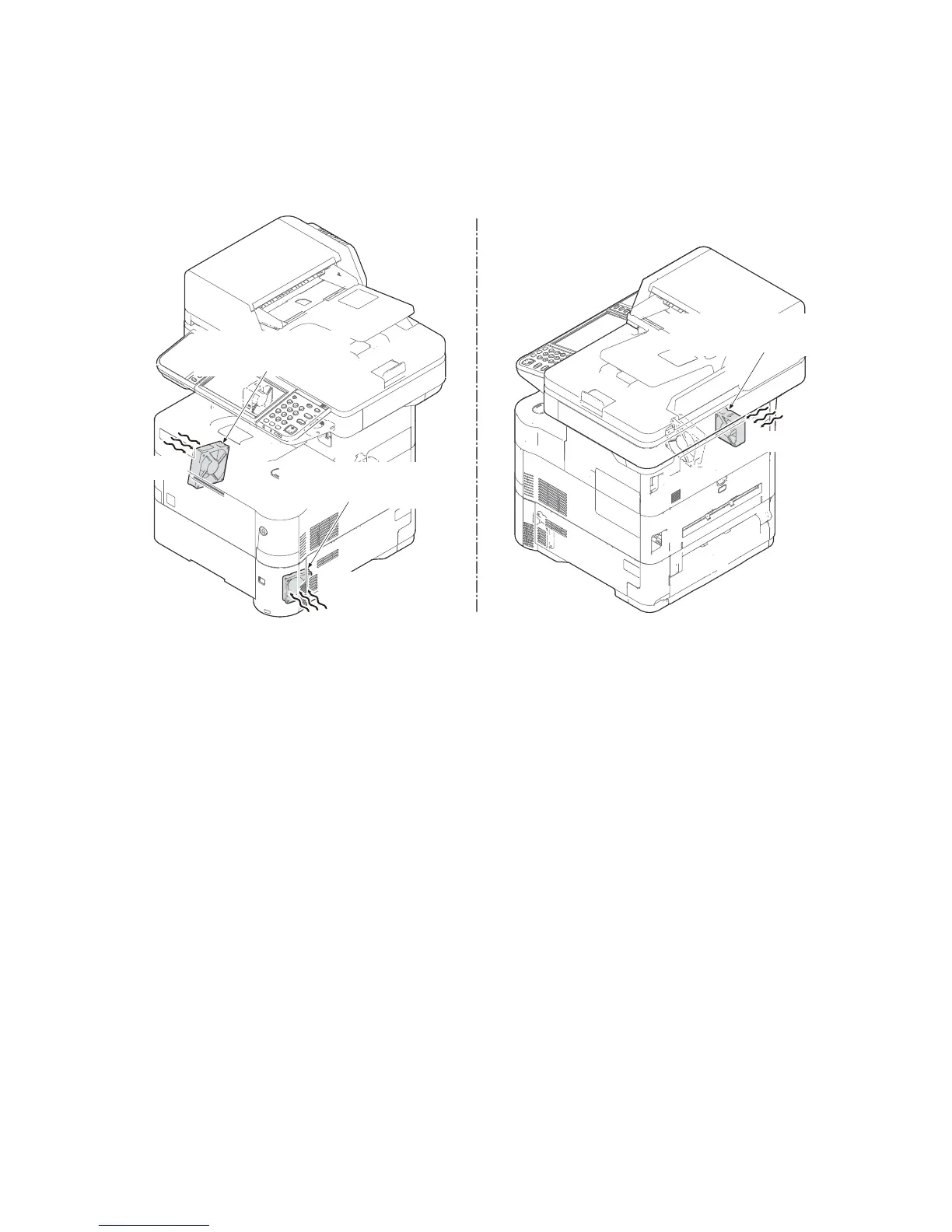

(5) Direction of installing the principal fan motors

When detaching or refitting the fan moter,be careful of the airflow direction (intake or exhaust).

Figure 1-5-170

LSU fan motor

(Rating label: inside)

Intake

Developer fan motor

(Rating label: inside)

Powersource fan motor

(Rating label: inside)
