(6) Detaching and refitting the center stay cover
Procedure
1. Remove the screw from the center stay
cover.
2. Release two hooks using a flat screw
driver and remove the center stay
cover.

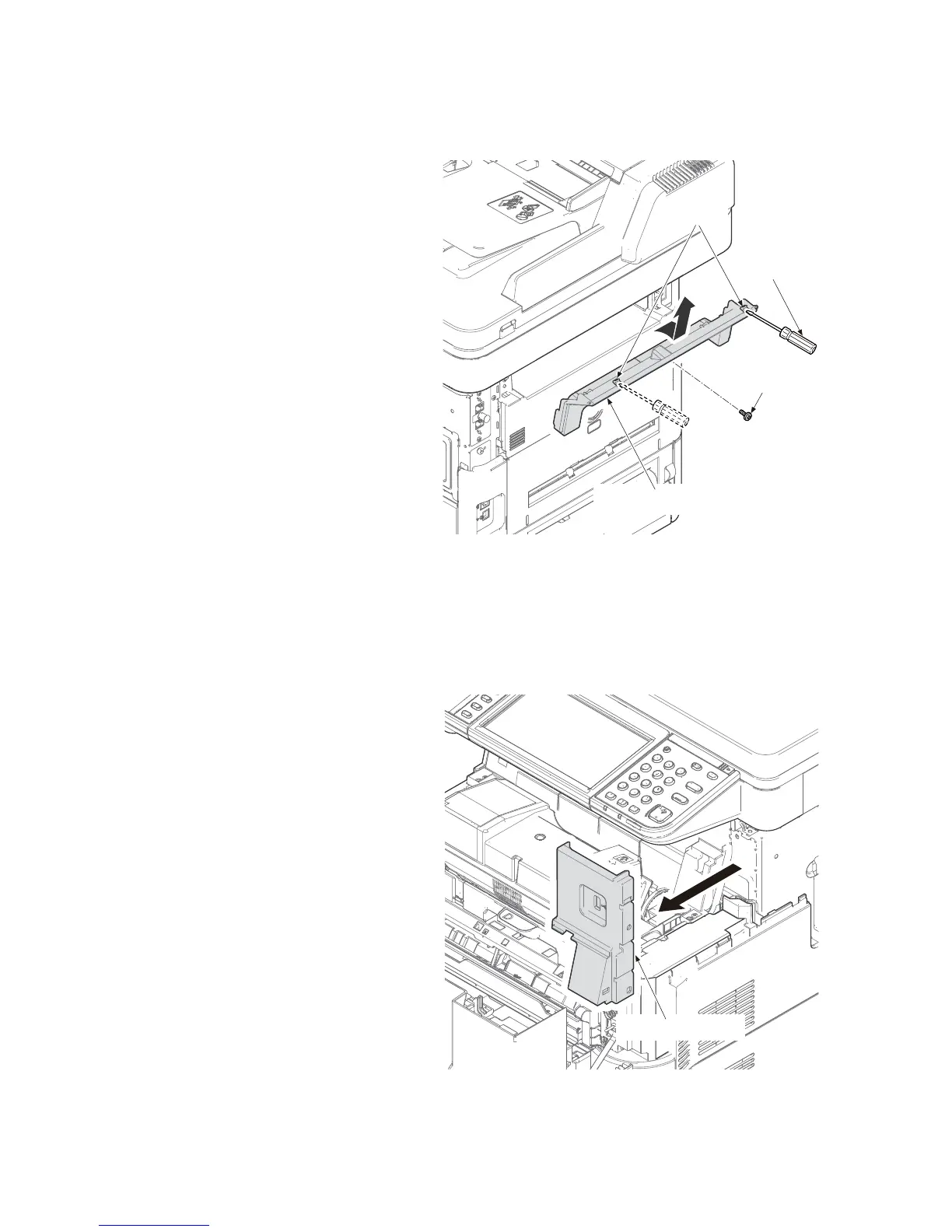

Figure 1-5-147
(7) Detaching and refitting the front right cover
Procedure
1. Remove the front right cover forward.
Figure 1-5-148
Hooks
Center stay cover
Flat screw
driver
Screw
Front right cover
