2NM/2NX/2NY/2NZ/2P0/2P6
1-3-84
Setting: T2 time out
The T2 time-out time decides the following.
From CFR signal output to image data reception
From image data reception to the next signal reception
In ECM, from RNR signal detection to the next signal reception
1. Change the setting using the cursor right/left keys.
Description Setting range Initial setting
T2 time-out time 1 to 255 69
2. Press the start key. The value is set.
Setting: Ta time out
In the fax/telephone auto select mode, sets the time to continue ringing an operator through the
connected telephone after receiving a call as a fax machine (see figure 1-3-18). A fax signal is
received within the Ta set time, or the fax mode is selected automatically when the time elapses. In
fax/telephone auto select mode, change the setting when fax reception is unsuccessful or a tele-
phone fails to receive a call.
1. Change the setting using the cursor right/left keys.
Description Setting range Initial setting
Ta time-out time 1 to 255 30
2. Press the start key. The value is set.

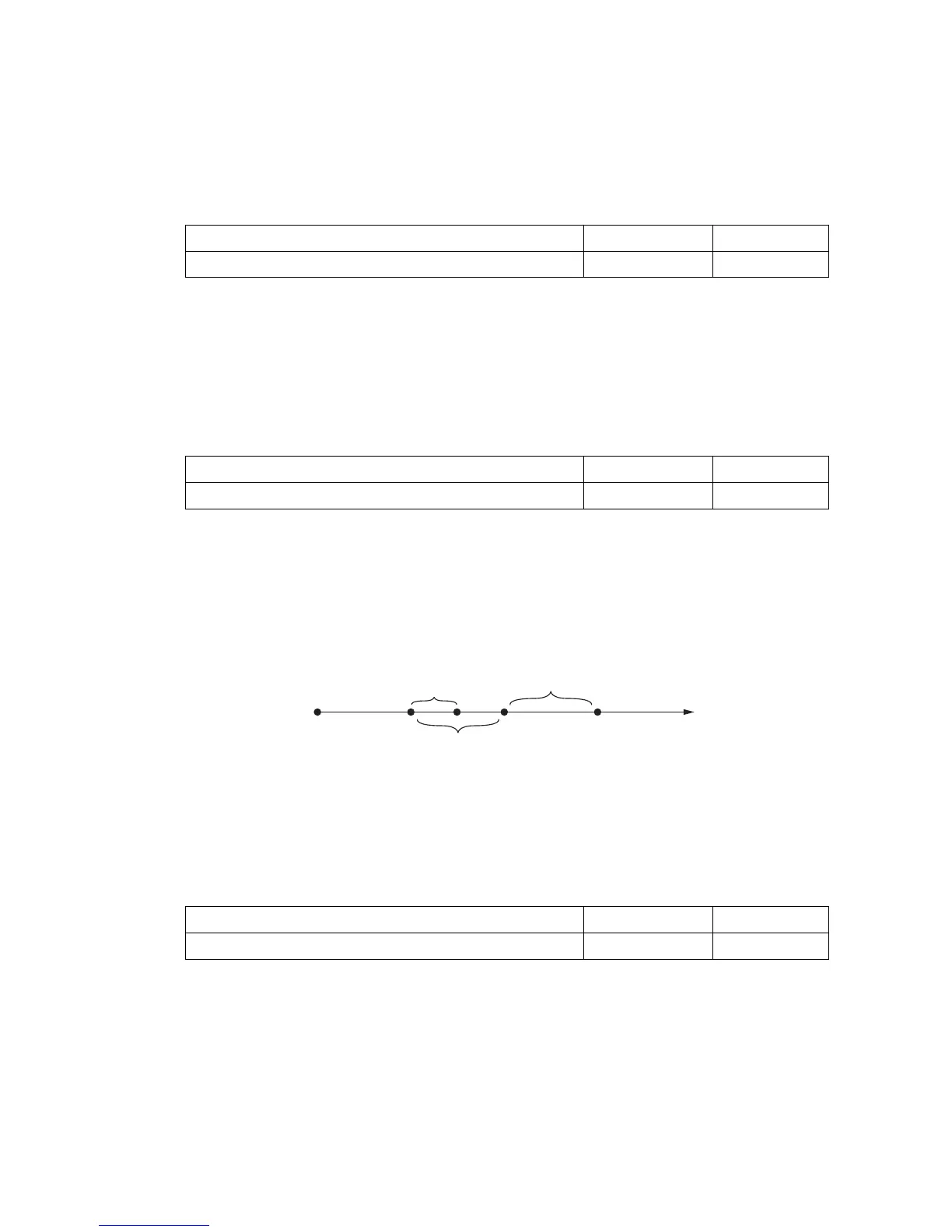

Figure 1-3-18 Ta/Tb1/Tb2 time-out time
Setting: Tb1 time out
In the fax/telephone auto select mode, sets the time to start sending the ring back tone after
receiving a call as a fax machine (see figure 1-3-18). In fax/telephone auto select mode, change
the setting when fax reception is unsuccessful or a telephone fails to receive a call.
1. Change the setting using the cursor right/left keys.
Description Setting range Initial setting
Tb1 time-out time 1 to 255 20
2. Press the start key. The value is set.
Ta
Tb2
Tb1
Ring detection
Line connection
as a fax machine
Rings
Ring back tone send start
Start of fax reception
