Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-34

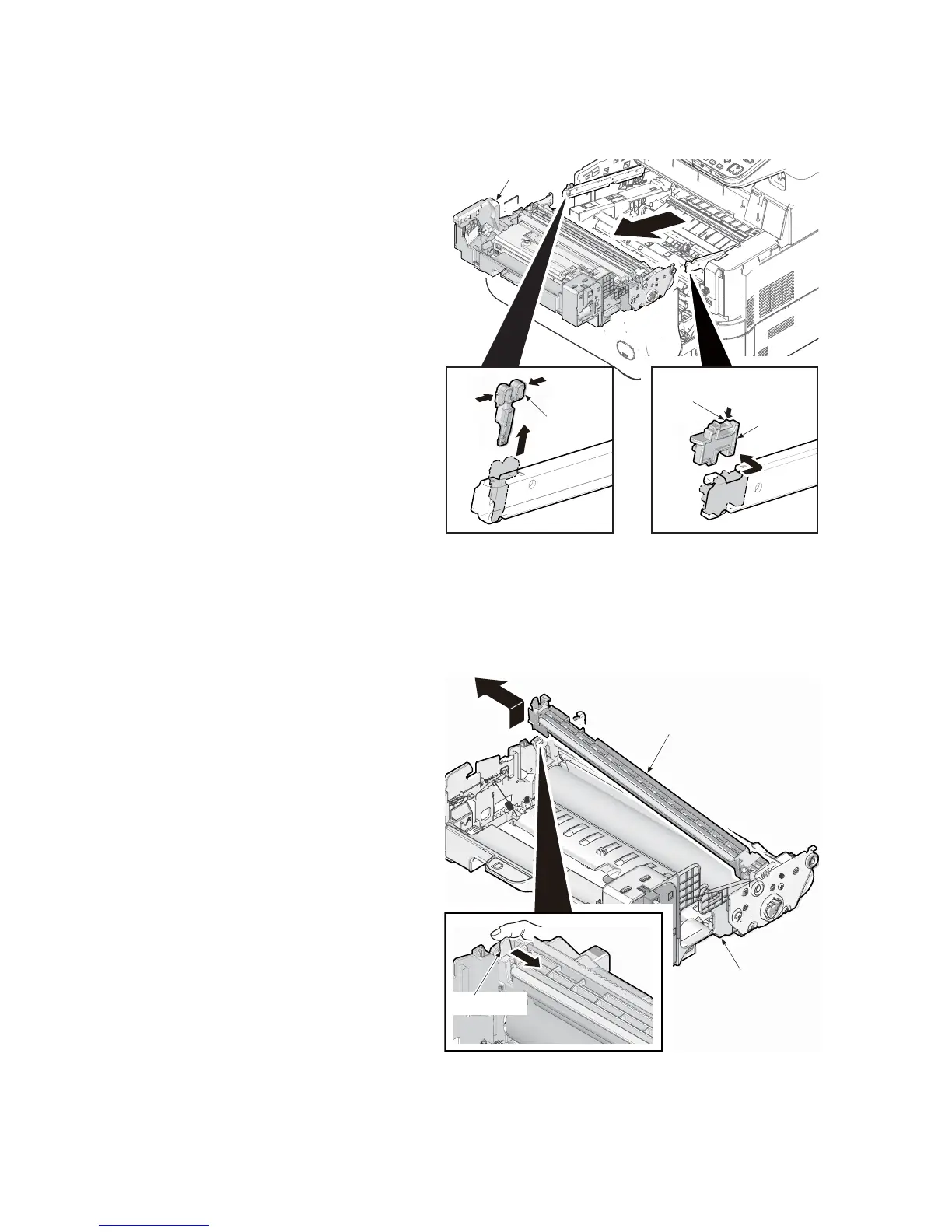

(1-1) Detaching and refitting the drum unit
Procedure
1. Remove the developer unit.
(See page 1-5-30)
2. Remove the lock lever L.
3. Remove the lock lever R by sliding
backward.
4. Remove the drum unit by sliding for-
ward.
5. Check or replace the drum unit and refit
all the removed parts.
Figure 1-5-56
(1-2) Detaching and refitting the chager unit
Procedure
1. Release the lock lever and then remove
the chager roller unit.
2. Check or replace the charger roller unit
and refit all the removed parts.
Figure 1-5-57
Lock
lever L
Lock
lever R
Hook
Drum unit
Drum unit
Lock lever
Chager roller unit
