2NM/2NX/2NY/2NZ/2P0/2P6

1-5-89

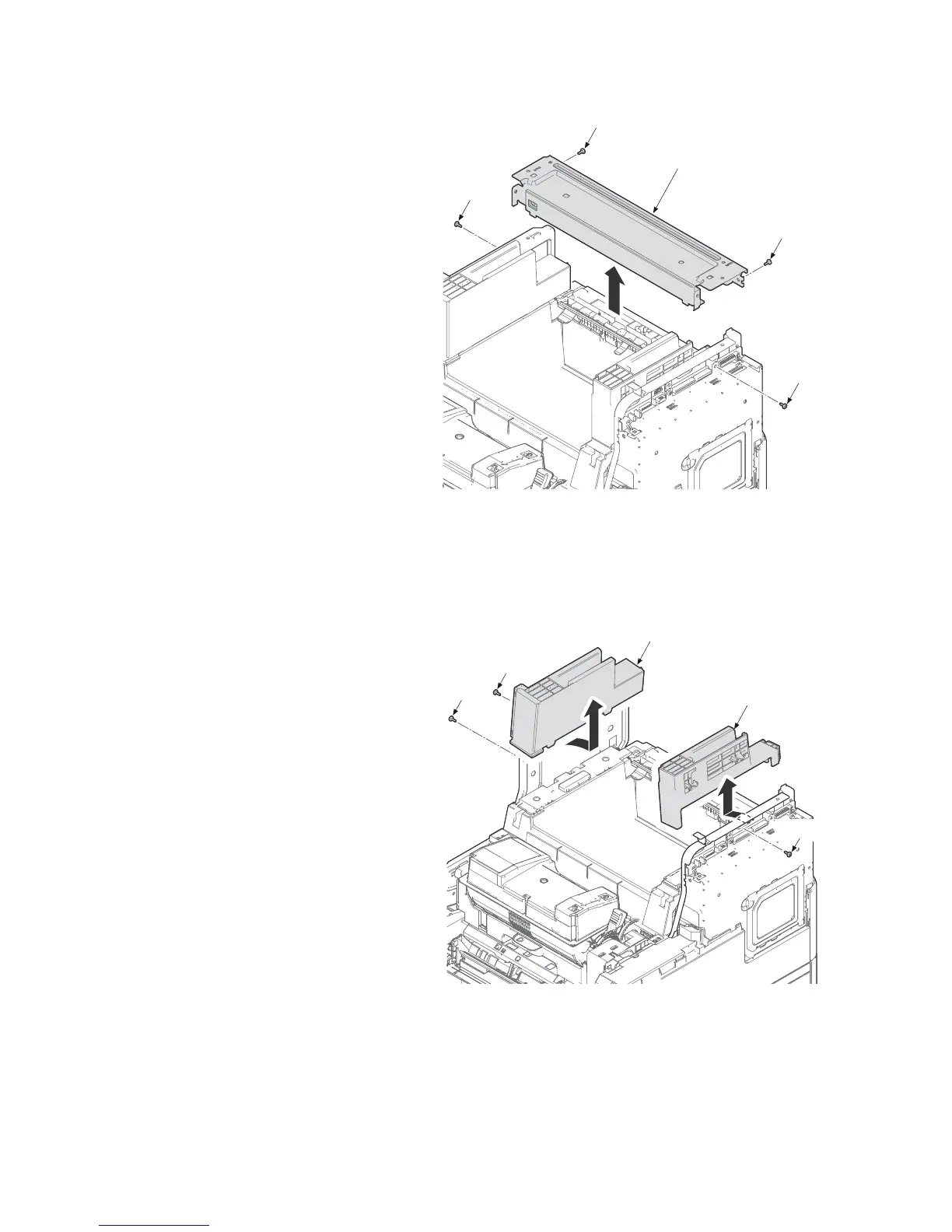

4. Remove four screws.

5. Remove the upper stay assembly

upward.

Figure 1-5-151

6. Remove the screw and then remove the

right inner cover by leaning it inside and

lifting it.

7. Remove two screws and then remove

the left inner cover by leaning it inside

and lifting it.

Figure 1-5-152

Screw

Upper stay

assembly

Right inner

cover

Left inner

cover

Screw

Service Manual1
